B550 Motherboard Graphics Card Compatibility

The compatibility of graphics cards with the B550 motherboard is a crucial aspect for PC enthusiasts and gamers alike. As technology advances rapidly, it's important to understand how these components work together to achieve optimal performance. With the B550 motherboard, you have a range of graphics card options to choose from, offering high-quality visuals and smooth gameplay experiences.

The B550 motherboard was designed to support the latest PCIe 4.0 standard, providing faster data transfer speeds and improved bandwidth for your graphics card. This means you can take full advantage of the cutting-edge GPUs available in the market, ensuring that your system delivers stunning visuals and handles resource-intensive tasks seamlessly. Whether you're a content creator, a competitive gamer, or simply someone who appreciates excellent graphics, the B550 motherboard compatibility opens up a world of possibilities for enhancing your computing experience.

Understanding B550 Motherboard Graphics Card Compatibility

B550 motherboards have become increasingly popular among gamers and PC enthusiasts due to their robust feature set and support for the latest technologies. One crucial aspect to consider when choosing a B550 motherboard is its compatibility with graphics cards. The graphics card compatibility of a B550 motherboard determines its ability to support different graphics card models, interfaces, and performance levels. In this article, we will delve into the various aspects of B550 motherboard graphics card compatibility to help you make an informed decision when building or upgrading your gaming rig.

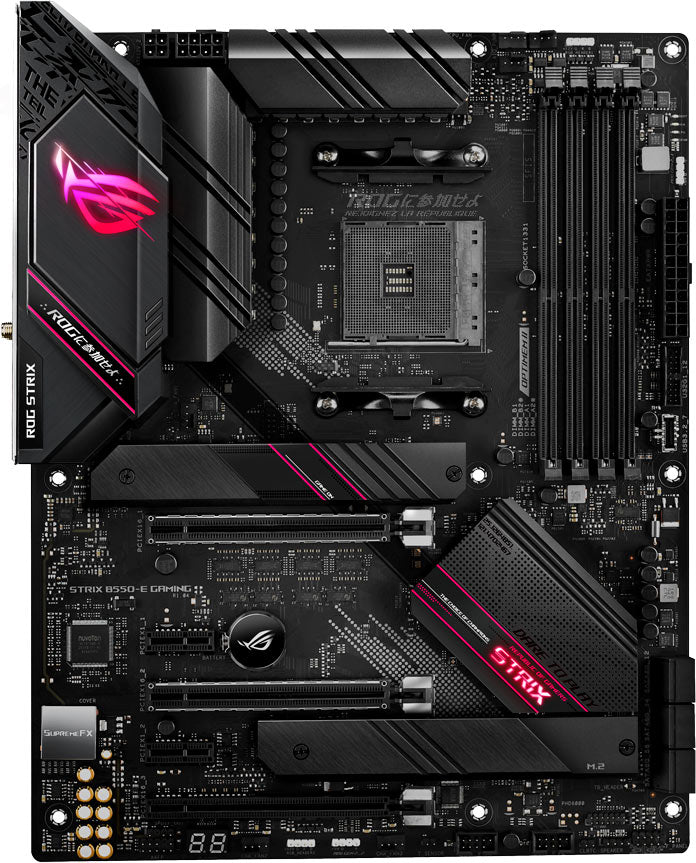

B550 Motherboard Graphics Card Slots

The first factor to consider when assessing graphics card compatibility with a B550 motherboard is the available graphics card slots. B550 motherboards typically feature PCIe (Peripheral Component Interconnect Express) slots, which are the industry standard for modern graphics card connectivity. Most B550 motherboards offer one or more PCIe x16 slots for high-performance graphics cards. These x16 slots provide optimal bandwidth for faster data transmission between the motherboard and the graphics card. Some B550 motherboards may also include PCIe x1 or PCIe x4 slots, which can be used for expansion cards or additional peripherals but may not provide full x16 bandwidth.

When selecting a B550 motherboard for your graphics card, ensure that it has at least one PCIe x16 slot to accommodate your desired graphics card. If you plan to use multiple graphics cards in SLI (Scalable Link Interface) or CrossFire configurations, make sure that the motherboard supports this feature and includes multiple x16 slots. Additionally, pay attention to the physical dimensions of the graphics card and ensure that it fits comfortably within the available space on the motherboard.

It is worth noting that some B550 motherboards may also feature M.2 slots for high-speed NVMe (Non-Volatile Memory Express) SSDs. While these slots do not directly impact graphics card compatibility, they may occupy certain PCIe lanes, resulting in reduced bandwidth availability for the graphics card. Therefore, when using M.2 slots, it is essential to refer to the motherboard's manual and ensure that their usage does not affect the performance of the graphics card.

Graphics Card Interface Compatibility

The second aspect of graphics card compatibility with B550 motherboards involves the interface compatibility between the graphics card and the motherboard. B550 motherboards typically support the PCIe 4.0 interface, which provides twice the bandwidth of the previous generation PCIe 3.0. PCIe 4.0 offers faster data transfer rates and improved performance for graphics cards capable of utilizing this interface.

However, it is important to consider the compatibility of your graphics card with the specific PCIe interface version supported by the B550 motherboard you are considering. While most modern graphics cards are backwards compatible and can function with PCIe 3.0 motherboards, using a PCIe 4.0 graphics card on a B550 motherboard without PCIe 4.0 support may result in reduced performance. Therefore, ensure that your graphics card and motherboard support the same PCIe interface for optimal performance.

Another important consideration is the power delivery capabilities of the B550 motherboard. High-performance graphics cards often require additional power connectors, such as PCIe power connectors or 8-pin power connectors, to deliver sufficient power for optimal performance. Ensure that your chosen B550 motherboard has the required power connectors to support your graphics card. This information is usually mentioned in the motherboard's specification or user manual.

Cross-Compatibility with Graphics Card Brands

B550 motherboards are designed to be compatible with a wide range of graphics card brands, including NVIDIA GeForce and AMD Radeon. The compatibility between the motherboard and graphics card brands primarily depends on the software drivers provided by the respective manufacturers. Therefore, it is crucial to ensure that the graphics card you intend to use is supported by the B550 motherboard manufacturer and vice versa.

Most B550 motherboards are equipped with the necessary hardware and support for both NVIDIA and AMD graphics cards. However, it is recommended to check the motherboard manufacturer's website or the official documentation for a comprehensive list of supported graphics card models and any potential limitations or known issues.

Optimizing Graphics Card Performance on a B550 Motherboard

To ensure optimal performance of your graphics card on a B550 motherboard, it is essential to make a few additional considerations:

• Ensure that the BIOS of your B550 motherboard is up to date. Motherboard manufacturers often release BIOS updates that improve graphics card compatibility and performance.
• Install the latest graphics card drivers provided by the graphics card manufacturer. These drivers often include performance optimizations and bug fixes for specific games or applications.
• Utilize the graphics card's software utility to customize settings and optimize performance. Most graphics card manufacturers provide dedicated software utilities that allow users to fine-tune settings and maximize performance based on their specific requirements.

B550 Motherboard Graphics Card Compatibility

When choosing a graphics card for a B550 motherboard, compatibility is a crucial factor to consider. The B550 motherboard is a popular choice for gamers and PC enthusiasts due to its support for the latest technologies and features.

Most B550 motherboards support a wide range of graphics cards, including both NVIDIA and AMD options. However, it's important to check the specific compatibility of the graphics card model with the B550 motherboard you are planning to use.

Some factors to consider when assessing compatibility include the number of PCIe slots available on the motherboard, the power requirements of the graphics card, and the connectivity options (such as DisplayPort or HDMI) on both the motherboard and the graphics card.

It is recommended to consult the motherboard manufacturer's website or the user manual for detailed information about graphics card compatibility. Additionally, online forums and communities dedicated to PC building can provide helpful insights and recommendations from experienced users.

Frequently Asked Questions

Here are some common questions regarding B550 motherboard graphics card compatibility:

1. What graphics cards are compatible with B550 motherboards?

Most B550 motherboards support a wide range of graphics cards, including the latest models from NVIDIA and AMD. This includes graphics cards from the GeForce RTX and Radeon RX series. It is important to check the specific specifications and features of your chosen B550 motherboard to ensure compatibility with your desired graphics card.

Additionally, it's essential to consider the power supply requirements of your graphics card and whether your B550 motherboard has the necessary PCIe slots to accommodate the card. Some high-end graphics cards may also require additional power connectors, so make sure your motherboard has the appropriate connectors available.

2. Can I use an older graphics card with a B550 motherboard?

Yes, you can use older graphics cards with a B550 motherboard. B550 motherboards typically have PCIe slots that are backward compatible with older PCIe graphics cards. However, it's important to check if the motherboard supports the specific interface and power requirements of your older graphics card.

Keep in mind that older graphics cards may not take full advantage of the features and capabilities of a B550 motherboard, such as PCIe 4.0 support. If you're planning to upgrade your graphics card in the future, it may be worth considering a newer model that can fully utilize the capabilities of the B550 motherboard.

3. Are B550 motherboards compatible with SLI or Crossfire configurations?

Yes, many B550 motherboards support SLI (Scalable Link Interface) or Crossfire configurations. These technologies allow you to connect multiple graphics cards together for improved performance in gaming or other GPU-intensive tasks.

However, it is crucial to verify the specific SLI or Crossfire compatibility of your chosen B550 motherboard. Some B550 motherboards may only have a single PCIe x16 slot, limiting your options for multi-GPU setups. Additionally, the power supply capacity and PCIe slot spacing should also be considered when planning an SLI or Crossfire configuration.

4. Can I use a B550 motherboard with integrated graphics?

Most B550 motherboards do not have integrated graphics capabilities. They are designed to work in conjunction with a dedicated graphics card. However, some B550 motherboards may have HDMI or DisplayPort outputs that support display output from the CPU's integrated graphics.

If you are looking for a motherboard with integrated graphics capabilities, you may need to consider other chipset options, such as those from the AMD A-series or Intel H-series.

5. Can I use a dual-GPU setup with a B550 motherboard?

Yes, you can use a dual-GPU setup with a B550 motherboard. However, it's important to note that most B550 motherboards support a maximum of two PCIe x16 slots, which are required for dual-GPU configurations.

Before setting up a dual-GPU configuration, ensure that your B550 motherboard supports the specific SLI or Crossfire technology required for your graphics cards. Additionally, verify the power supply capacity and PCIe slot spacing to accommodate both graphics cards effectively.

To summarize, the B550 motherboard is compatible with a wide range of graphics cards, making it a versatile option for gamers and PC enthusiasts. Its PCIe 4.0 support allows for faster data transfer rates, ensuring smooth gameplay and high-quality graphics. Whether you're using an AMD or NVIDIA graphics card, the B550 motherboard has you covered.

Additionally, the B550 motherboard offers features like multiple PCIe slots, ample power delivery, and robust thermal design, providing optimal performance and stability for your graphics card. With its compatibility and advanced features, the B550 motherboard is a reliable choice for those looking to build a powerful gaming rig or enhance their existing setup. Whether you're a casual gamer or a hardcore enthusiast, the B550 motherboard is sure to meet your graphics card needs.
