Understanding the MSI EZ Debug LED for CPU
The MSI EZ Debug LED is a feature found on the motherboard of MSI motherboards that helps users troubleshoot hardware issues more efficiently. This LED display provides diagnostic information about specific components, including the CPU, memory, VGA, and boot device. In this article, we will focus on the EZ Debug LED for CPU, exploring its functionality, benefits, and how it can assist in troubleshooting CPU-related problems.
How Does the EZ Debug LED for CPU Work?
The EZ Debug LED for CPU is a small LED display located near the CPU socket on MSI motherboards. When the system encounters an issue related to the CPU, this LED will light up, indicating the specific problem. It is a useful tool for quickly identifying the source of the issue without the need for complicated diagnostic tools.
When the CPU LED is illuminated, users can refer to the motherboard manual to identify the error code associated with the specific LED pattern. These error codes can vary depending on the MSI motherboard model, but typically, they provide useful information about the problem at hand.
By referencing the error code, users can easily pinpoint the cause of the CPU-related issue. This can save a significant amount of time and effort, as it eliminates the need for trial and error troubleshooting methods. Whether it is a faulty CPU, inadequate cooling, or incorrect installation, the EZ Debug LED for CPU will guide users in the right direction to resolve the problem effectively.
Benefits of the EZ Debug LED for CPU
The EZ Debug LED for CPU offers several benefits to users:
- Easy Troubleshooting: The LED display provides a clear indication of CPU-related issues, making it easier for users to identify and resolve problems without the need for additional diagnostic tools.
- Time-Saving: With the LED display providing specific error codes, users can quickly determine the cause of the issue, saving valuable time in the troubleshooting process.
- No Need for Additional Tools: The CPU EZ Debug LED eliminates the need for sophisticated diagnostic tools, making it accessible to users of all skill levels.
- Straightforward Resolution: By following the error code guide provided in the motherboard manual, users can easily perform the necessary steps to resolve the CPU-related problem.
Using the EZ Debug LED for CPU
To effectively make use of the EZ Debug LED for CPU, follow these steps:
- Identify the Illuminated LED: When the CPU LED lights up, note the specific error code associated with the pattern of the illumination.
- Refer to the Motherboard Manual: Look up the error code in the motherboard manual provided with the MSI motherboard.
- Identify the Cause: The error code will help identify the cause of the CPU-related issue, whether it's CPU overheating, CPU compatibility issues, or other problems.
- Resolve the Issue: Follow the instructions in the motherboard manual corresponding to the error code to troubleshoot and resolve the CPU-related problem.
Common CPU-Related Issues Detected by the EZ Debug LED
The EZ Debug LED for CPU can help detect various CPU-related issues, including:
- CPU Overheating: If the CPU temperature exceeds safe limits, the CPU LED will illuminate, indicating a cooling issue or inadequate heat dissipation.
- CPU Compatibility Issues: Incompatible CPUs or outdated BIOS versions can trigger the CPU LED, alerting users to address compatibility issues.
- Incorrect CPU Installation: Improperly seated or incorrectly installed CPUs can cause the CPU LED to light up, indicating the need for reinstallation or adjustment.
- CPU Power Connection Problems: Insufficient or faulty power connections to the CPU can result in the CPU LED illuminating, highlighting power-related issues.
By detecting these common CPU-related issues, the EZ Debug LED for CPU enables users to take immediate action and resolve the problem, ensuring optimal system performance and longevity.
Conclusion
The MSI EZ Debug LED for CPU is a valuable feature that simplifies the troubleshooting process for CPU-related issues. It provides clear and concise diagnostic information, allowing users to quickly identify and resolve problems without the need for additional tools. By utilizing the EZ Debug LED, users can save time, avoid potential damage to hardware, and ensure the smooth operation of their MSI motherboard. Whether it's CPU overheating, compatibility issues, or installation problems, the EZ Debug LED for CPU offers an effective solution for efficient troubleshooting.
Understanding the MSI Ez Debug LED CPU

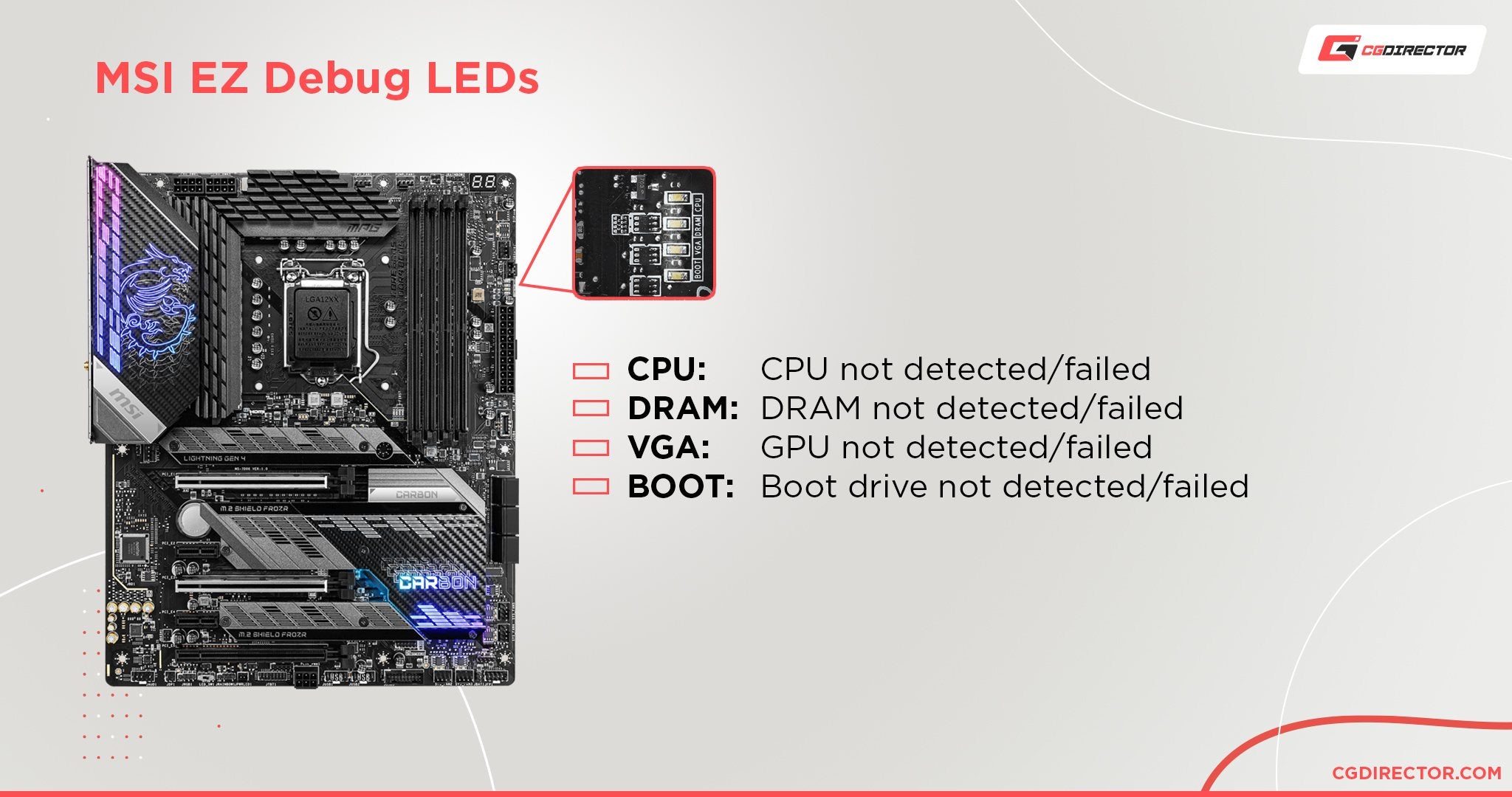

The MSI Ez Debug LED CPU is a feature found on MSI motherboards that helps diagnose CPU-related issues during computer boot-up. It consists of four LEDs near the CPU socket, labeled CPU, DRAM, VGA, and BOOT.
When the CPU LED stays lit or flashes, it indicates a problem with the CPU or its connection. This could be due to a faulty CPU, a bent pin on the motherboard, or incorrect installation.
To troubleshoot, start by checking the CPU connections, ensuring it is seated properly in the socket. If there are any bent pins, carefully straighten them. If the problem persists, try using a different CPU or motherboard to determine the faulty component.
It is important to note that the MSI Ez Debug LED CPU is just a tool for diagnosis and does not provide detailed error codes. In more complex cases, it is advisable to consult the motherboard manual or MSI support for further assistance.
Key Takeaways
- MSI EZ Debug LED CPU is a feature on MSI motherboards that helps diagnose CPU-related issues.
- The EZ Debug LED CPU indicator is located on the motherboard and displays error codes to identify the problem.
- If the EZ Debug LED CPU is lit, it means there is an issue with the CPU or its connection.
- Common CPU-related issues include incompatible hardware, improper installation, or overheating.
- When troubleshooting with the EZ Debug LED CPU, it is important to refer to the motherboard's manual for specific error code meanings.
Frequently Asked Questions
In this section, we will answer some common questions related to the Msi Ez Debug Led CPU feature.
1. How does the Msi Ez Debug Led CPU feature work?
The Msi Ez Debug Led CPU feature is designed to help users diagnose potential issues with their CPU. The LED indicators on the motherboard correspond to different CPU-related components, such as the CPU itself, memory, and power supply. When the system fails to boot or encounters CPU-related errors, the corresponding LED will light up, indicating the potential source of the problem. By observing the LED status, users can identify and troubleshoot CPU-related issues more efficiently.
For example, if the CPU LED is lit up, it suggests that there might be an issue with the CPU or its power supply. This information can help users narrow down the problem and take appropriate actions, such as reseating the CPU or checking the power connections. Overall, the Msi Ez Debug Led CPU feature provides a visual aid for diagnosing and troubleshooting CPU-related problems, making it easier for users to resolve any issues they might encounter.
2. What should I do if the CPU LED on the Msi Ez Debug Led panel lights up?
If the CPU LED on the Msi Ez Debug Led panel lights up, it indicates a potential issue with the CPU or its power supply. Here are some steps you can take to resolve the problem:
1. Check the CPU installation: Make sure the CPU is properly seated in its socket. Remove the CPU and reinsert it, ensuring it is properly aligned and securely in place.
2. Check the power connections: Make sure the CPU power connector is firmly connected to the motherboard. Check all other power connections related to the CPU, such as the 8-pin CPU power connector.
3. Verify the CPU compatibility: Ensure that the CPU is compatible with the motherboard. Check the motherboard's specifications and compare them with the CPU's specifications to ensure compatibility.
4. Check for bent pins: Inspect the CPU socket for any bent pins. If you find any bent pins, carefully straighten them using a mechanical pencil or a similar tool. Be extremely cautious not to break the pins.
If the issue persists after performing these steps, it is recommended to consult the motherboard's user manual or contact MSI customer support for further assistance.
3. Are there any other LED indicators on the Msi Ez Debug Led panel?
Yes, the Msi Ez Debug Led panel includes LED indicators for other components as well. These include indicators for memory, graphics, and boot issues. Each LED corresponds to a specific component, allowing users to identify potential problems more easily.
By observing the LED status, users can pinpoint the source of the issue and proceed with the appropriate troubleshooting steps. The Msi Ez Debug Led panel provides a comprehensive visual aid for diagnosing various hardware-related issues, not just limited to the CPU.
4. Can I disable the Msi Ez Debug Led CPU feature?
No, the Msi Ez Debug Led CPU feature cannot be disabled. It is a built-in feature of the motherboard and serves as a valuable diagnostic tool. The LED indicators provide crucial information about potential hardware issues that can help users troubleshoot and resolve problems more effectively.
5. How accurate is the Msi Ez Debug Led CPU feature?
The Msi Ez Debug Led CPU feature is a reliable diagnostic tool that accurately indicates potential CPU-related problems. However, it is important to note that the LED indicators are designed to provide a general understanding of the issue rather than specific error codes or detailed information. They are meant to guide users in identifying the source of the problem, allowing them to take appropriate actions for troubleshooting.
In some cases, the LED indicators may not accurately pinpoint the exact cause of the problem, especially if there are multiple issues occurring simultaneously. Therefore, it is recommended to use the LED indicators as a starting point for troubleshooting and rely on additional diagnostic methods, such as system monitoring software or hardware testing tools, for more precise analysis.
To summarize, the MSI EZ Debug LED for CPU is an invaluable tool for troubleshooting hardware issues related to the CPU. Its clear and intuitive design allows even beginners to easily identify and resolve problems. By indicating specific CPU-related faults, such as boot failures or overheating, the LED provides valuable insights that can help users diagnose and fix issues quickly.
With the MSI EZ Debug LED CPU, users can save time and effort by quickly identifying and resolving CPU-related problems. Whether you're a seasoned computer builder or just starting out, this feature can be a lifesaver. By simplifying the troubleshooting process and providing real-time feedback, MSI has made it easier for users to keep their systems running smoothly.
