How To Mount CPU Cooler

When it comes to mounting a CPU cooler, precision and efficiency are key. A properly mounted cooler not only ensures optimal cooling performance but also helps extend the lifespan of your CPU. So, let's dive into the process of mounting a CPU cooler and discover the best practices to achieve a seamless installation.

Mounting a CPU cooler involves a few essential steps that guarantee the stability and effectiveness of the cooling system. First, it's important to clean the surface of the CPU thoroughly to remove any residual thermal compound or dust. Next, applying a thin layer of high-quality thermal paste ensures efficient heat transfer between the CPU and the cooler. Finally, carefully securing the cooler to the CPU using the appropriate mounting mechanism provides a solid and secure connection, preventing any movement or damage to the components. By following these steps, you can achieve optimal cooling performance and ensure the longevity of your CPU.

Choosing the Right CPU Cooler Mounting Method

Mounting a CPU cooler is an essential step in building a computer system, as it ensures the efficient transfer of heat away from the processor. There are different mounting methods available, and choosing the right one is crucial for optimal performance and longevity of your CPU cooler. In this article, we will explore the various CPU cooler mounting methods and guide you through the process of mounting your CPU cooler with precision and ease.

1. Backplate-based Mounting

Backplate-based mounting is a popular method used in many aftermarket CPU coolers. This method involves attaching a backplate to the backside of the motherboard, which provides a sturdy foundation for the cooler. The backplate usually comes with pre-installed insulation washers to prevent any contact between the backplate and the motherboard traces, ensuring electrical safety.

To mount your CPU cooler using the backplate-based method, you will need to align the mounting holes of the cooler with the standoffs on the backplate. Once aligned, gently press the cooler down to ensure even mounting pressure. Finally, secure the cooler in place using the included mounting screws or brackets.

This mounting method offers excellent stability and uniform pressure distribution, resulting in efficient heat transfer and improved cooling performance. It is important to refer to the manufacturer's instructions to ensure a proper fit and compatibility with your specific CPU socket.

Pros of Backplate-based Mounting:

• Sturdy and stable mounting
• Even pressure distribution
• Improved cooling performance
• Electrical safety

Cons of Backplate-based Mounting:

• Requires access to the backside of the motherboard
• Can be time-consuming to install

2. Top-mounted Mounting

Top-mounted mounting is a common method used in stock CPU coolers and some aftermarket options. In this method, the cooler is attached directly to the top of the CPU socket, securing it in place. The mounting mechanism may vary depending on the specific CPU cooler, but it usually involves clipping the cooler onto retention brackets or hooks.

To mount your CPU cooler using the top-mounted method, you will need to align the mounting clips or hooks with the corresponding brackets on the CPU socket. Apply gentle pressure to secure the cooler in place, ensuring that it is properly seated and making good contact with the CPU. Some coolers may also require the use of additional screws for added stability.

This mounting method is relatively straightforward and convenient, especially for stock coolers where the mounting mechanism is often pre-assembled. However, it is essential to ensure proper alignment and secure fastening to prevent any movement or uneven pressure distribution.

Pros of Top-mounted Mounting:

• Straightforward installation process
• Convenient for stock coolers

Cons of Top-mounted Mounting:

• Potential for movement and uneven pressure
• Limited compatibility with aftermarket coolers

3. Screw-based Mounting

Screw-based mounting is commonly used in certain high-performance aftermarket CPU coolers. This method requires attaching the cooler to the CPU socket using a series of screws and mounting brackets. The mounting brackets are typically screwed into the existing mounting holes on the socket, providing a secure attachment point for the cooler.

To mount your CPU cooler using the screw-based method, you will need to attach the mounting brackets to the cooler using the included screws. Once the brackets are secured, align them with the mounting holes on the CPU socket and use the provided screws to fasten them in place. Ensure that the cooler is evenly tightened and making good contact with the CPU.

This mounting method offers a high level of customization and compatibility, as it allows for fine adjustments in positioning and pressure. However, it may require additional time and effort to install compared to other methods.

Pros of Screw-based Mounting:

• Customizable positioning and pressure
• High compatibility with various coolers

Cons of Screw-based Mounting:

• Time-consuming installation
• Requires additional hardware

4. Push-pin Mounting

Push-pin mounting is commonly used in stock Intel coolers. This method involves securing the cooler to the motherboard using plastic push-pins that lock into the mounting holes on the CPU socket. The push-pins offer a simple and straightforward installation process, requiring minimal tools or additional components.

To mount your CPU cooler using the push-pin method, align the cooler with the mounting holes on the CPU socket. With gentle pressure, push the pins through the corresponding holes until they lock into place. Ensure that the cooler is securely attached and making proper contact with the CPU.

While push-pin mounting is easy to install, it may not offer the same level of stability and pressure distribution as other mounting methods. It is crucial to check the push-pins regularly and ensure that they are securely fastened.

Pros of Push-pin Mounting:

• Simple and tool-free installation
• Minimal additional components required

Cons of Push-pin Mounting:

• Less stability and pressure distribution
• Limited compatibility with non-stock coolers

Ensuring Proper CPU Cooler Mounting

Proper CPU cooler mounting is crucial to ensure efficient heat dissipation and maximize the performance of your computer system. Here are some important tips to keep in mind when mounting your CPU cooler:

1. Clean the CPU and Cooler Surface

Before mounting the CPU cooler, it is essential to clean the surface of both the CPU and the cooler. Use isopropyl alcohol and a lint-free cloth to remove any residue or thermal paste from previous installations. This ensures optimal contact between the CPU and the cooler for efficient heat transfer.

2. Apply Thermal Paste

Thermal paste is a crucial component that fills in microscopic imperfections between the CPU and the cooler, enhancing the transfer of heat. Apply a small amount of thermal paste on the center of the CPU, and spread it evenly using a plastic applicator or a thermal pad provided with the cooler. Be careful not to use too much thermal paste, as it can cause poor heat transfer or electrical issues.

3. Follow Manufacturer's Instructions

Each CPU cooler may have specific instructions and requirements for mounting. It is essential to carefully read and follow the manufacturer's instructions to ensure correct alignment, pressure distribution, and compatibility. Failure to follow the instructions may result in poor cooling performance or even damage to your CPU.

4. Check for Even Mounting Pressure

When attaching the CPU cooler, check for even mounting pressure on all corners. Uneven pressure can limit heat transfer and cause hotspots on the CPU. Tighten the mounting screws or clips gradually in a cross-pattern to ensure uniform pressure distribution. Use a screwdriver or the appropriate tool recommended by the manufacturer to avoid overtightening.

Conclusion

Mounting your CPU cooler correctly is essential for optimal cooling performance and the longevity of your processor. Whether you choose a backplate-based, top-mounted, screw-based, or push-pin mounting method, following the manufacturer's instructions and ensuring proper contact and pressure distribution is key. By adhering to the tips and techniques discussed in this article, you can confidently mount your CPU cooler and enjoy efficient heat dissipation, allowing your computer system to perform at its best.

Mounting a CPU Cooler

Mounting a CPU cooler is an essential step in building or upgrading a computer. A CPU cooler helps keep the processor cool, preventing it from overheating and causing damage. Here are the steps to successfully mount a CPU cooler:

Step 1: Choose the Right Cooler

Start by selecting a CPU cooler that is compatible with your processor socket. Check the manufacturer's specifications or consult the motherboard manual to ensure compatibility.

Step 2: Apply Thermal Paste

Before mounting the cooler, apply a small pea-sized amount of thermal paste onto the center of the processor. This helps in heat transfer between the CPU and cooler.

Step 3: Install the Mounting Bracket

Attach the mounting bracket onto the motherboard, aligning it with the processor socket. Secure it firmly using screws or other provided fasteners.

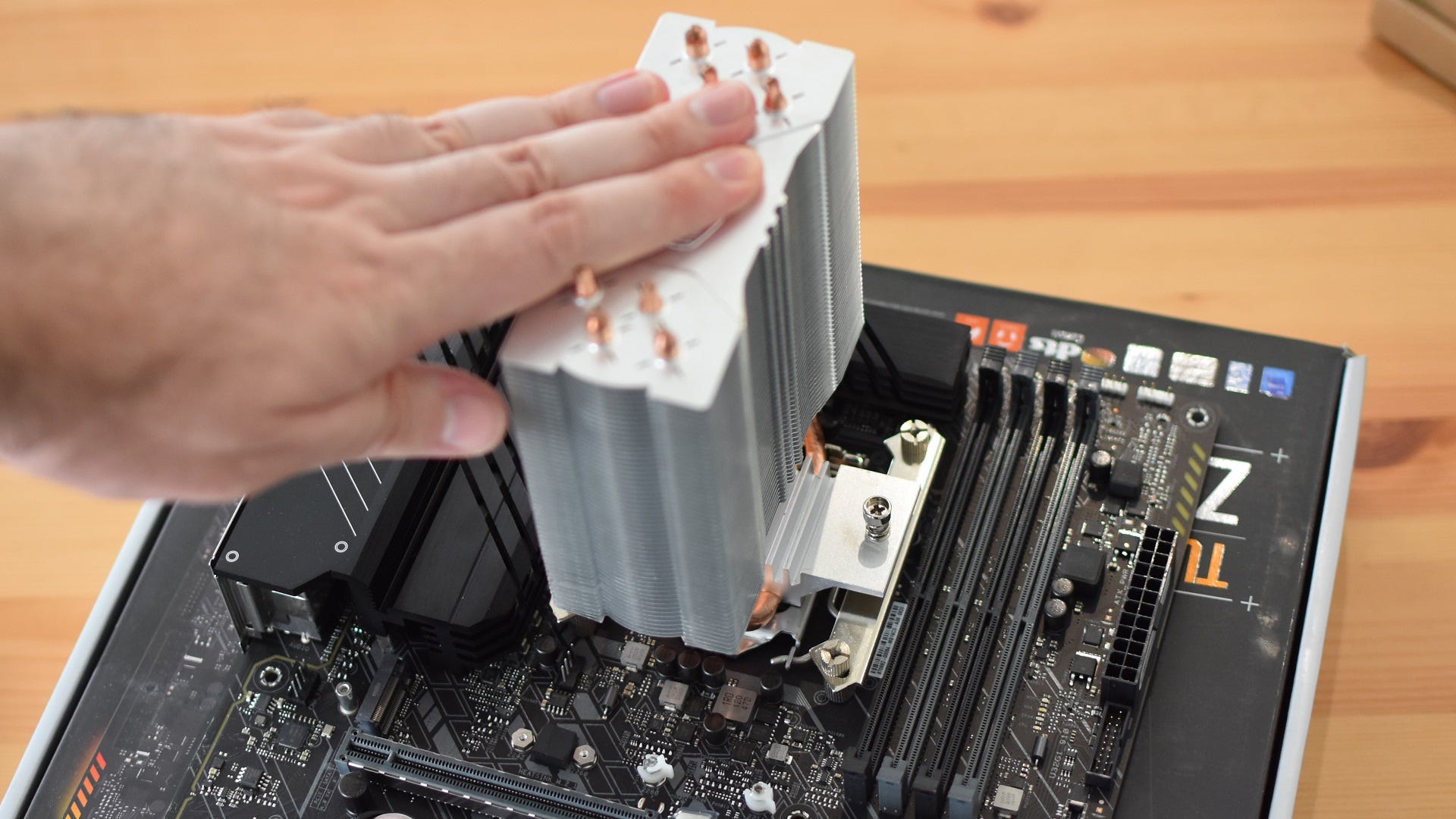

Step 4: Attach the Cooler

Carefully place the CPU cooler onto the mounting bracket, ensuring the screw holes align with the bracket holes. Use screws or other provided fasteners to secure the cooler in place.

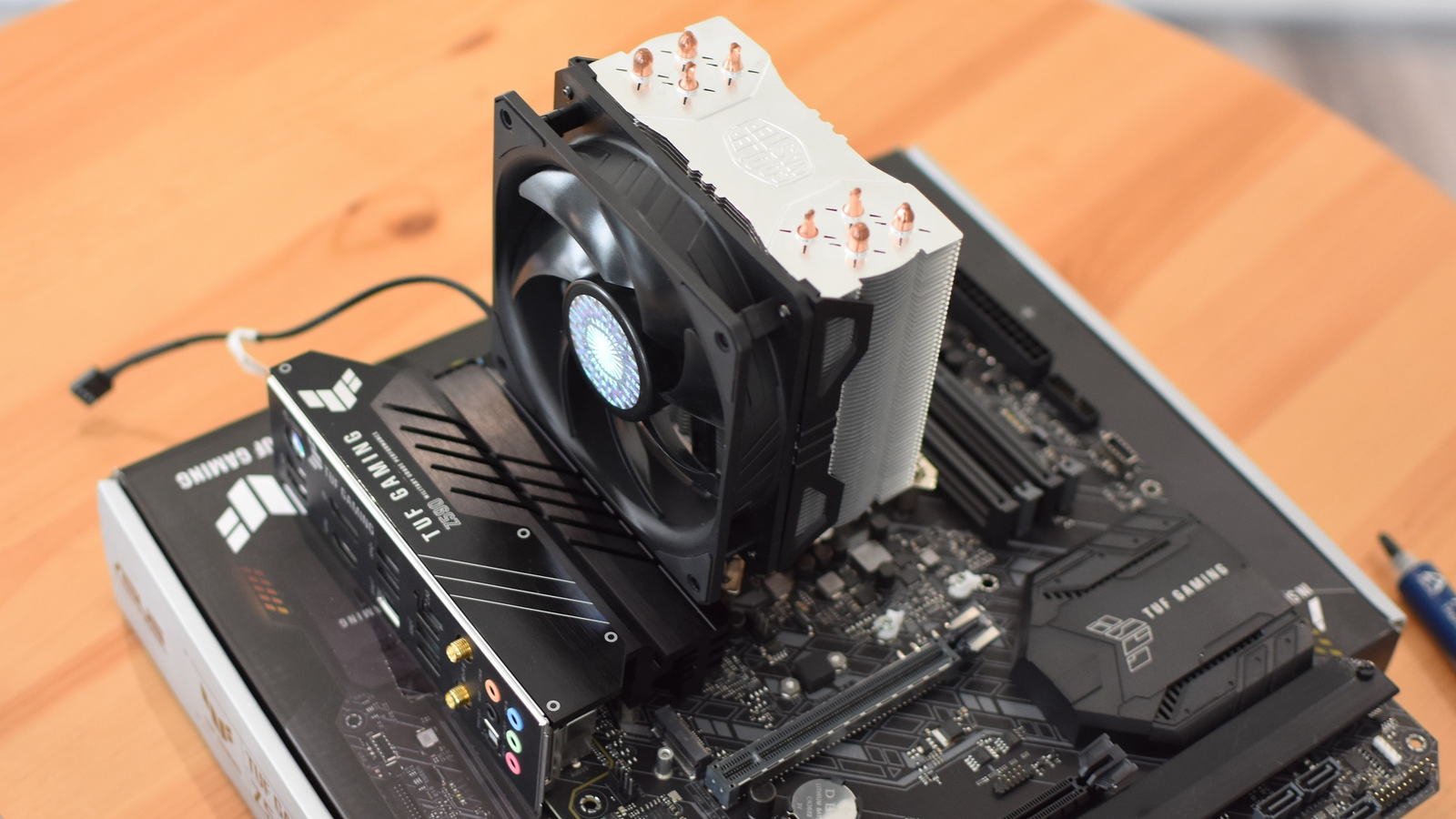

Step 5: Connect the Fan

Connect the fan's power cable to the appropriate motherboard header, usually labeled "CPU Fan." Make sure the connection is secure.

Frequently Asked Questions

Mounting a CPU cooler is an essential step in building a computer. It ensures that the processor stays cool and prevents overheating. Here are some commonly asked questions about how to mount a CPU cooler.

1. What tools do I need to mount a CPU cooler?

To mount a CPU cooler, you will need the following tools:

• Screwdriver
• Thermal paste
• Anti-static wrist strap (optional but recommended)

These tools will help you properly secure the CPU cooler and ensure efficient heat dissipation.

2. How do I clean the CPU before installing a cooler?

Before installing a CPU cooler, it's important to clean the surface of the processor. Here's how to do it:

1. Turn off the computer and disconnect the power source.

2. Gently remove the existing cooler from the CPU, taking care not to damage the processor or surrounding components.

3. Use a lint-free cloth or thermal pad cleaner to wipe away any dust or residue on the surface of the CPU.

4. Apply a small amount of isopropyl alcohol to the cloth and gently clean the CPU surface to remove any remaining dirt or thermal paste.

5. Allow the CPU surface to dry completely before proceeding with the installation of the new cooler.

3. How do I apply thermal paste when mounting a CPU cooler?

Thermal paste is crucial for optimizing heat transfer between the CPU and cooler. Here's how to apply it:

1. Take a small pea-sized amount of thermal paste and place it in the center of the CPU.

2. Carefully place the cooler on top of the CPU, ensuring that the base of the cooler makes full contact with the thermal paste.

3. Gently press down on the cooler and tighten the screws or clips to secure it in place.

4. How do I properly mount a CPU cooler?

Mounting a CPU cooler requires careful attention to ensure proper installation. Here are the steps to follow:

1. Place the CPU cooler on top of the CPU, aligning the screw holes or clips with the mounting brackets on the motherboard.

2. Insert the screws or engage the clips into the corresponding holes or brackets.

3. Tighten the screws or secure the clips, ensuring that the cooler is firmly attached to the motherboard.

4. Connect the CPU fan to the appropriate header on the motherboard to ensure proper cooling.

5. What are some common mistakes to avoid when mounting a CPU cooler?

When mounting a CPU cooler, it's important to avoid these common mistakes:

• Applying too much or too little thermal paste
• Tightening the screws or clips too tightly, which can damage the CPU or motherboard
• Not properly aligning the cooler with the mounting brackets on the motherboard

By avoiding these mistakes, you can ensure a successful and efficient CPU cooler installation.

So, now you know how to mount a CPU cooler! It may seem like a daunting task at first, but with the right tools and careful instructions, you can easily install it yourself. Remember to follow all safety precautions, such as wearing an anti-static wristband and working on a clean, static-free surface.

Start by preparing your CPU with thermal paste, then carefully attach the cooler. Make sure to tighten the screws evenly and firmly. Finally, double-check all connections and ensure that everything is secure before powering on your computer. With these steps, you'll be able to keep your CPU cool and running efficiently, which is essential for optimal performance.
