Graphics Card 6 Pin To 8 Pin

When it comes to powering high-performance graphics cards, the 6-pin to 8-pin adapter plays a crucial role. It may seem like a small component, but it holds the key to unlocking the full potential of your GPU. With its ability to convert the power supply's 6-pin connector into an 8-pin connector, this adapter provides the added power needed to support the demanding requirements of modern graphics cards.

The Graphics Card 6 Pin to 8 Pin adapter has become increasingly popular in recent years due to the rise in power-hungry GPUs. By providing that extra 2 pins, it allows the graphics card to draw more power, which translates into better performance and smoother gaming experiences. With the ever-evolving technology in the gaming industry, having a reliable and efficient power supply for your graphics card has become more important than ever. The 6-pin to 8-pin adapter is a simple but effective solution to ensure your GPU operates at its optimal level.

Understanding Graphics Card Power Connectors

The power connectors on a graphics card are an essential component in ensuring that it receives the necessary power to function optimally. One of the most common power connector configurations is the 6-pin to 8-pin connection, which allows for higher power delivery to the graphics card. In this article, we will delve into the details of the 6-pin to 8-pin connection, its purpose, compatibility, and everything else you need to know.

What is a Graphics Card 6 Pin to 8 Pin Connector?

A graphics card 6-pin to 8-pin connector is a power cable adapter that allows for additional power delivery to high-performance graphics cards. Most modern graphics cards require both a 6-pin and an 8-pin power connector to operate efficiently. The additional 2 pins included in the 8-pin connector provide more power capacity compared to the 6-pin connector, ensuring stable power supply to the graphics card.

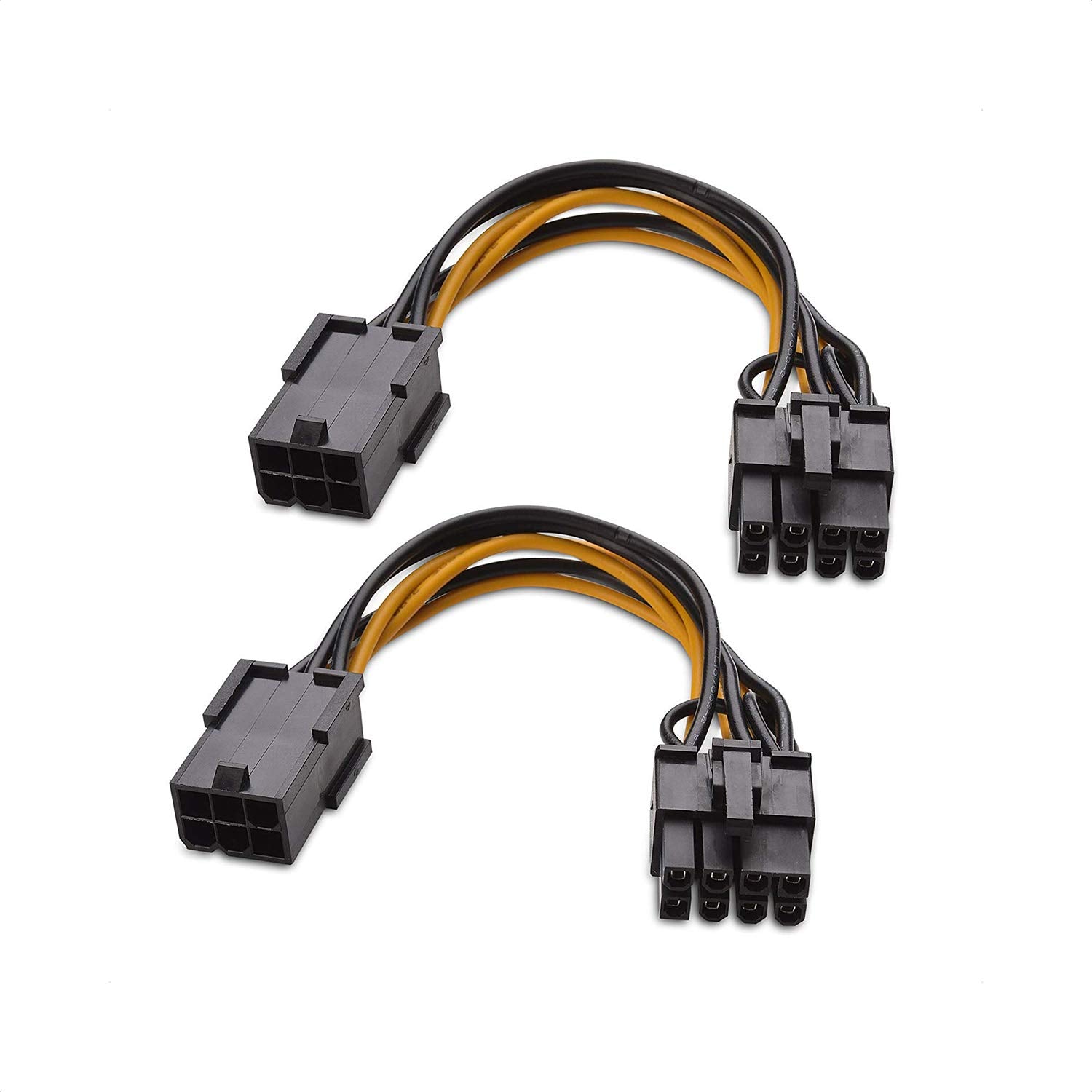

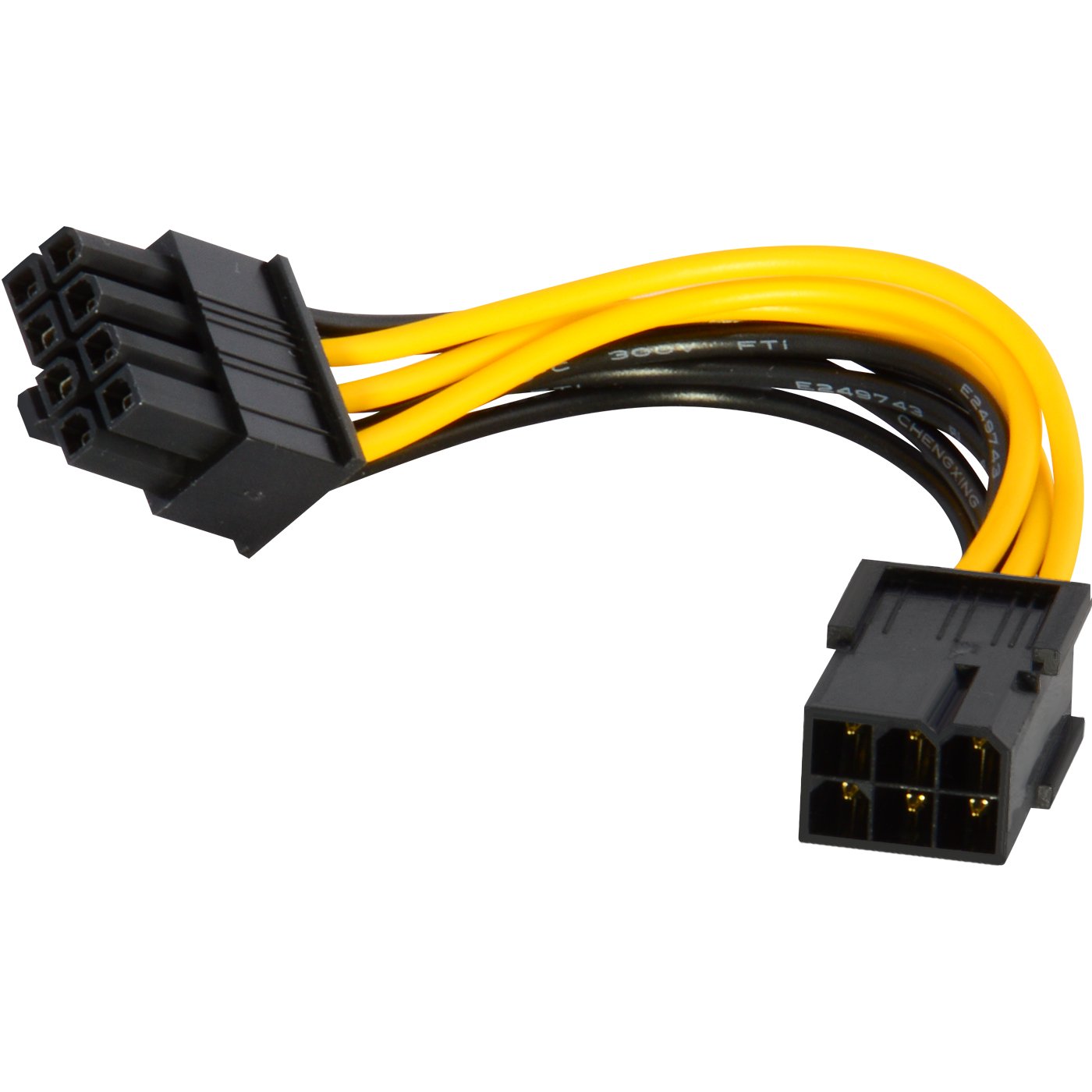

The 6-pin to 8-pin power connector features a 6-pin male connector on one end and an 8-pin female connector on the other end. This allows for backward compatibility with power supplies that only have 6-pin connectors, while still providing the necessary power for newer graphics cards that require an 8-pin connection. It is crucial to use a high-quality and reliable adapter to avoid power-related issues or damage to your graphics card.

It is important to note that not all graphics cards will require an 8-pin connector. Lower power graphics cards may only require one or more 6-pin connectors, while higher-end models might require multiple 8-pin connectors or a combination of both 6-pin and 8-pin connectors. Always refer to the manufacturer's specifications and guidelines to determine the power requirements for your specific graphics card.

Compatibility and Power Delivery

The 6-pin to 8-pin connector is designed to ensure compatibility between older power supplies with 6-pin connectors and newer graphics cards that require an 8-pin connection. This is especially useful when upgrading your graphics card but not your power supply. The adapter allows you to connect the graphics card without the need for additional power supply modifications.

When using a 6-pin to 8-pin connector, it is important to consider the power requirements of your graphics card and the power supply's capacity. The additional 2 pins in the 8-pin connector provide extra power capacity, which is essential for high-performance graphics cards that consume more power. Ensure that your power supply can deliver enough power to meet the demands of your graphics card.

A high-quality 6-pin to 8-pin connector will efficiently deliver the required power without causing voltage drops or other power-related issues. It is crucial to use the adapter provided by reputable manufacturers to ensure reliable power delivery and minimize the risk of damage to your graphics card.

It is worth noting that some high-end graphics cards may require multiple 8-pin connectors or a combination of 6-pin and 8-pin connectors. Always consult the manufacturer's specifications to confirm the exact power requirements for your specific graphics card.

Installation and Considerations

Installing a graphics card with a 6-pin to 8-pin connector is a relatively straightforward process. Here are the steps to follow:

• Ensure that your power supply meets the power requirements of your graphics card. Check the manufacturer's specifications for the necessary power connectors and capacity.
• Locate the appropriate power connectors on your power supply and connect the 6-pin side of the adapter to the 6-pin connector on your power supply.
• Connect the 8-pin side of the adapter to the 8-pin connector on your graphics card.
• Securely fasten the connectors to avoid any loose connections.
• Double-check that all connections are properly connected and secured.
• Power on your system and ensure that the graphics card is being recognized and functioning correctly.

It is essential to use the appropriate power connectors and ensure a reliable and stable power supply to your graphics card. Using inadequate or incompatible connectors can cause power-related issues, instability, or even hardware damage. If you have any doubts or concerns, it is recommended to consult with a professional or seek assistance from the manufacturer.

Advantages and Limitations of the 6 Pin to 8 Pin Connector

The use of a 6-pin to 8-pin connector provides several advantages for graphics card power supply, including:

• Compatibility: The adapter ensures backward compatibility with power supplies that only have 6-pin connectors, allowing for seamless installation of newer graphics cards.
• Higher Power Capacity: The additional 2 pins in the 8-pin connector provide increased power delivery, making it suitable for high-performance graphics cards that require more power.
• Convenience: The 6-pin to 8-pin adapter eliminates the need to upgrade your power supply when upgrading your graphics card, saving you time and money.
• Reliability: When using a high-quality adapter, power delivery remains stable, reducing the risk of voltage drops or power-related issues.

However, there are some limitations to consider when using a 6-pin to 8-pin connector:

• Power Supply Compatibility: Ensure that your power supply can deliver sufficient power to support the graphics card's requirements, even with the adapter. Inadequate power supply capacity can lead to performance issues or system instability.
• Future Compatibility: While the adapter is useful for current graphics cards, it may not be compatible with future graphics card upgrades that require different power connector configurations.
• Cable Management: The additional cable from the adapter may require proper cable management to ensure a clean and organized system build.

Alternative Power Connector Options

In addition to the 6-pin to 8-pin connector, there are other power connector options available for graphics cards, depending on their power requirements. Here are a few examples:

8 Pin to Dual 8 Pin

High-end graphics cards often require more power than a single 8-pin connector can deliver. In such cases, an 8-pin to dual 8-pin adapter is used. This adapter splits the power supply into two separate 8-pin connectors, providing the necessary power for graphics cards that demand higher power delivery.

When using an 8-pin to dual 8-pin adapter, it is crucial to verify that your power supply can support the increased power requirements and has sufficient connectors available.

6 Pin to Dual 6+2 Pin

Similar to the 8-pin to dual 8-pin adapter, the 6-pin to dual 6+2-pin adapter splits the power into two separate connectors. This allows for compatibility between older power supplies with 6-pin connectors and graphics cards that require more power delivery.

The 6-pin to dual 6+2-pin adapter provides flexibility in power supply options and ensures compatibility with a wide range of graphics cards. However, as with other adapters, it is important to check your power supply's capacity and connector availability.

Direct Power Supply Connection

Graphics cards with higher power requirements may necessitate a direct power supply connection without the need for adapters. These cards often come with multiple 8-pin connectors or a combination of 8-pin and 6-pin connectors, allowing for direct power delivery from the power supply.

Direct power supply connection eliminates the need for adapters and offers the highest power capacity for graphics cards, ensuring optimal performance and stability. However, it requires power supplies with compatible connectors and sufficient power delivery capabilities.

Always refer to the manufacturer's specifications and guidelines to determine the appropriate power connector options for your specific graphics card.

Overall, the 6-pin to 8-pin connector offers a reliable solution for powering graphics cards that require additional power. With proper installation and consideration for power supply compatibility, it allows for seamless integration of newer graphics cards into existing systems without the need for extensive modifications. However, it is important to stay informed about the power requirements of your graphics card and ensure a stable power supply to prevent any potential issues.

Understanding Graphics Card Connectors: 6 Pin to 8 Pin

If you are a PC gaming enthusiast or someone who works with graphic-intensive applications, you may have come across discussions about graphics card power connectors. One common topic is the compatibility between a 6-pin connector and an 8-pin connector.

A graphics card typically requires a certain amount of power to function optimally. It receives this power through the connectors on the card itself. While most modern graphics cards come with an 8-pin power connector, some older or more budget-friendly models may require only a 6-pin connector.

For those with a graphics card that has a 6-pin power connector but possesses an 8-pin power supply, don't worry—there is a solution. Adapters are available that allow you to convert the 6-pin connector into an 8-pin connector. These adapters ensure that the graphics card receives the necessary power without any compatibility issues.

However, it is crucial to note that using an adapter may carry certain risks. The power drawn through the adapter may exceed its capacity, potentially leading to overheating or device malfunction. It is advisable to consult with professionals or refer to the manufacturer's instructions to ensure a safe and compatible power connection for your graphics card.

Frequently Asked Questions

Graphics Card 6 Pin to 8 Pin is a common topic among PC enthusiasts and gamers. Many modern graphics cards require an 8-pin power connector for adequate power delivery. However, some power supplies only have a 6-pin connector. In this FAQ guide, we will answer some common questions related to converting a 6-pin connector to an 8-pin connector for graphics cards.

1. Can I use a 6-pin to 8-pin adapter for my graphics card?

Yes, you can use a 6-pin to 8-pin adapter to connect your graphics card to a power supply with only a 6-pin connector. These adapters are widely available and can provide the additional power your graphics card needs. However, it's essential to ensure that your power supply can handle the increased power demand from the graphics card, as using an adapter does not increase the power capabilities of the power supply itself.

When using a 6-pin to 8-pin adapter, make sure to choose a high-quality adapter from a reputable brand. The adapter should be capable of providing adequate power without causing any voltage drops or overheating. Additionally, check the power requirements of your specific graphics card to ensure that the adapter can provide the necessary power for optimal performance.

2. Can using a 6-pin to 8-pin adapter cause any issues with my graphics card?

Using a 6-pin to 8-pin adapter itself does not inherently cause any issues with your graphics card. However, it's crucial to use a high-quality adapter and ensure that your power supply can handle the increased power demand. If the power supply is unable to provide enough power, it can result in instability, crashes, or even damage to the graphics card.

Additionally, using an adapter may limit the power delivery capabilities compared to a native 8-pin connection. This can potentially impact the overclocking potential and overall performance of the graphics card. It's recommended to use an adequate power supply with native 8-pin connectors whenever possible for the best performance and stability.

3. What are the alternatives to using a 6-pin to 8-pin adapter?

If your power supply does not have an 8-pin connector, there are a few alternatives to using a 6-pin to 8-pin adapter. Firstly, you can consider upgrading your power supply to a model that has native 8-pin connectors to ensure sufficient power delivery for your graphics card. Another option is to use a power supply that supports modular cables, allowing you to swap the 6-pin cables for 8-pin cables as required. However, both of these alternatives may require additional investment.

Alternatively, you can also consider upgrading your graphics card to a model that requires only a 6-pin connector or one that is compatible with your current power supply configuration. This can eliminate the need for adapters or power supply upgrades, although it may limit your options when it comes to high-end graphics cards.

4. Will using a 6-pin to 8-pin adapter affect the warranty of my graphics card?

Using a 6-pin to 8-pin adapter to connect your graphics card to a power supply should not affect the warranty of your graphics card. Adapters are widely used and accepted solutions, and using one should not void your graphics card's warranty. However, to be on the safe side, it's always recommended to check the warranty terms and conditions provided by the graphics card manufacturer.

If you are unsure about the warranty implications, you can contact the manufacturer directly or refer to their official documentation for more information about using adapters with their graphics cards.

5. Can I use multiple 6-pin to 8-pin adapters for additional power?

While it's technically possible to use multiple 6-pin to 8-pin adapters to provide additional power to your graphics card, it's not recommended. The power delivery capabilities of a power supply are designed based on the available connectors. Using multiple adapters can strain the power supply and potentially lead to stability issues or damage to the components.

If your graphics card requires more power than your power supply can provide, it's better to upgrade to a higher-capacity power supply with native connectors rather than relying on multiple adapters.

In summary, upgrading a graphics card that requires an 8-pin power connector with a 6-pin power connector can be achieved through the use of an adapter. However, it is important to note that this may not provide the same level of power delivery as a dedicated 8-pin power connector.

While using a 6-pin to 8-pin adapter may allow the graphics card to function, it is recommended to check the power requirements of the specific card and consult the manufacturer's guidelines. Additionally, it is crucial to ensure that the power supply can handle the increased power demands to avoid any potential issues or damage to the system.
