CPU Power Cable Does Not Match

When it comes to computer hardware, even the smallest details can have a big impact. It's frustrating when the CPU power cable does not match, causing compatibility issues and potential damage to the system. Your computer relies on the proper connection between the power supply and the CPU to ensure stable and efficient operation. So why does it sometimes happen that the power cable doesn't match? Let's explore this common problem and find out what you can do to resolve it.

Understanding the history and background of CPU power cables can help shed some light on this issue. Over the years, there have been several different types and standards of power connectors used in computers. The most common types include the 4-pin, 8-pin, and 24-pin connectors. These connectors have evolved to accommodate the increasing power requirements of modern CPUs. However, with the wide variety of power supply units and motherboards available in the market, it's not uncommon to encounter compatibility issues. This mismatch can lead to unstable power delivery, system crashes, or even damage to your components. Fortunately, there are solutions available, such as using adapter cables or upgrading your power supply unit to ensure a proper match with your CPU's power requirements.

Understanding the Issue of CPU Power Cable Mismatch

The issue of a CPU power cable not matching can be a frustrating experience for computer users. When building or upgrading a desktop computer, ensuring that all the components are compatible is crucial. One of the most common issues encountered is when the CPU power cable does not match the connector on the motherboard or power supply. This can lead to confusion, troubleshooting, and potential damage to the components if not addressed correctly.

1. Different Types of CPU Power Cables

CPU power cables are responsible for delivering power from the power supply unit (PSU) to the central processing unit (CPU). The type of CPU power cable required depends on the socket type of the motherboard and the power supply unit being used. The two common types of CPU power cables are the 4-pin ATX12V/EPS12V and the 8-pin EPS12V.

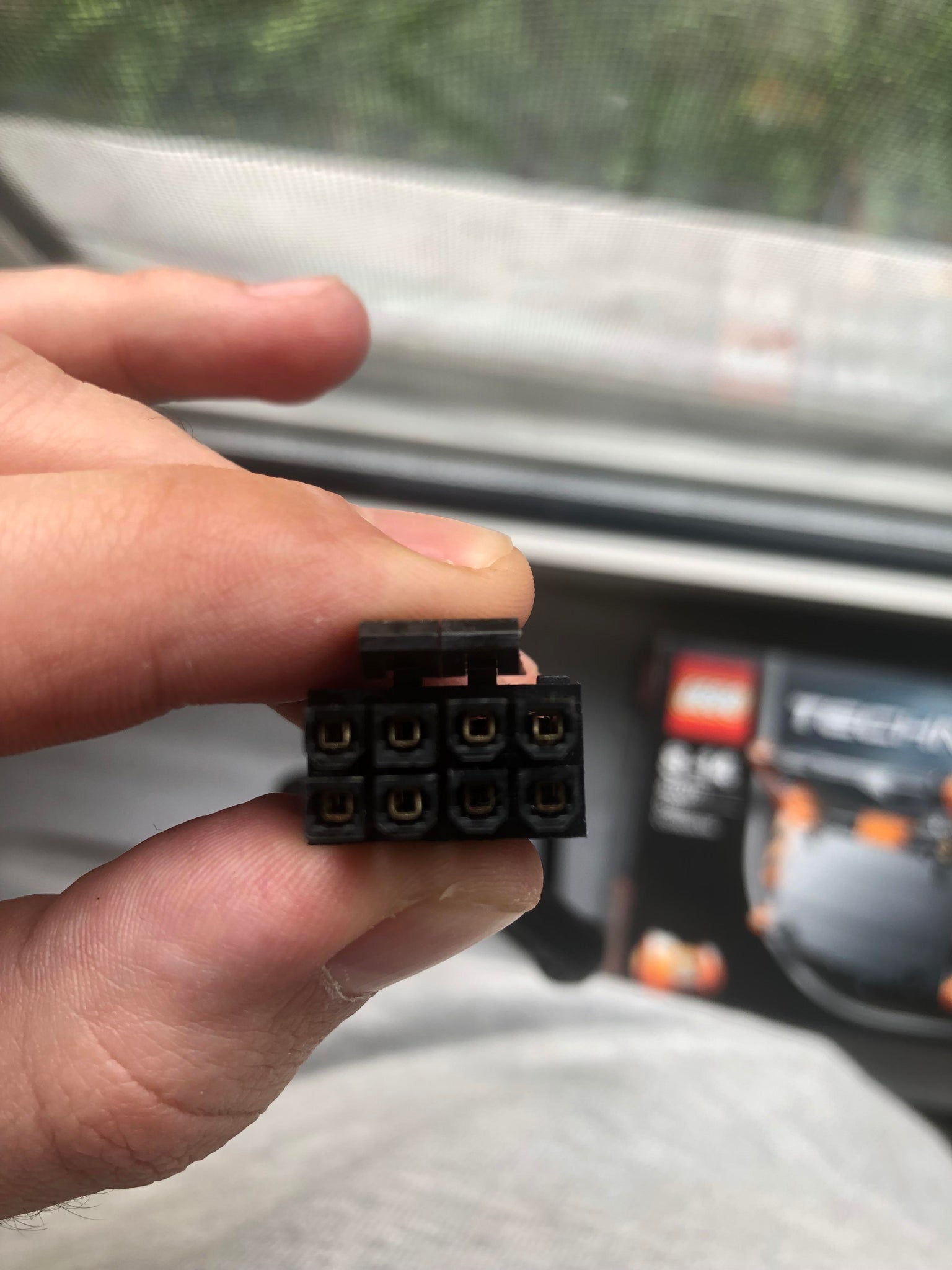

The 4-pin ATX12V/EPS12V cable is commonly found in older motherboards and provides power to the CPU. It features a square 4-pin connector that mates with the corresponding socket on the motherboard. On the other hand, the 8-pin EPS12V cable is used in modern motherboards and offers additional power delivery for high-performance CPUs. It consists of a rectangular 8-pin connector, which can usually be split into two 4-pin connectors if necessary.

It's essential to identify the type of CPU power cable required for your specific motherboard and power supply unit to avoid any compatibility issues. Incorrectly connecting the wrong type of cable can result in the computer not turning on or the CPU not receiving sufficient power, impacting its performance and stability.

2. Common Causes of CPU Power Cable Mismatch

There are several reasons why a CPU power cable might not match the required connector on the motherboard or power supply unit:

• Outdated motherboard or power supply unit: Older motherboards and power supply units may not support the newer 8-pin EPS12V connector. In such cases, an adapter or a replacement power supply unit might be required.
• Incompatible power supply unit: Some power supply units may not have the required connectors to supply power to newer motherboards. Ensuring compatibility between the power supply unit and the motherboard is crucial.
• Incorrect cable selection: It's easy to mistake the required CPU power cable, especially when there are multiple cables with similar connectors in the computer case. Double-checking the cable's label or diagram can help prevent using the wrong cable.
• Manufacturing defects: In rare cases, manufacturing defects can lead to mismatches between the CPU power cable and the motherboard or power supply unit. Contacting the manufacturer for assistance or replacement might be necessary.

Identifying the cause of the CPU power cable mismatch is the first step in finding a solution and getting the computer up and running without any issues.

2.1 Outdated Motherboard or Power Supply Unit

If you have an older motherboard or power supply unit that does not support the 8-pin EPS12V connector, there are a few options to consider:

• Use an adapter: Adapters are available that can convert the 4-pin ATX12V connector into an 8-pin EPS12V connector. These adapters can be found at computer hardware stores or online retailers.
• Upgrade the power supply unit: If the existing power supply unit does not have the required connectors, upgrading to a newer model that supports the necessary connector types can resolve the issue. Ensure that the new power supply unit meets the power requirements of the computer.
• Replace the motherboard: In some cases, replacing the motherboard might be necessary if it is not compatible with the required CPU power cable. Consider consulting with a computer technician or doing thorough research before making any purchasing decisions.

By addressing the issue of an outdated motherboard or power supply unit, you can ensure compatibility and prevent CPU power cable mismatches.

2.2 Incompatible Power Supply Unit

If your power supply unit does not have the required connectors to power the motherboard, here are some steps you can take:

• Check power supply unit specifications: Refer to the power supply unit's specifications or consult its manual to determine if it supports the required connectors for your motherboard.
• Consider upgrading the power supply unit: If your current power supply unit is incompatible, you may need to replace it with a newer model that supports the necessary connectors. Be sure to choose a power supply unit with sufficient wattage and efficiency for your computer's needs.
• Contact the power supply unit manufacturer: If you're unsure about the compatibility or need further assistance, reach out to the manufacturer for guidance. They can provide specific recommendations based on your system's requirements.

Ensuring compatibility between the power supply unit and the motherboard is crucial to avoid any potential CPU power cable mismatches.

2.3 Incorrect Cable Selection

When there are multiple cables with similar connectors in the computer case, it's easy to select the wrong CPU power cable. To avoid this issue:

• Double-check the cable label or diagram: Most cables come labeled with their purpose, making it easier to identify the correct one. Refer to the motherboard or power supply unit manual if needed.
• Compare the cable connectors: Examine the motherboard and power supply unit connectors carefully. Match the shapes and sizes to select the appropriate cable.
• Seek professional help: If you're unsure or uncomfortable handling the cables, consider seeking assistance from a professional computer technician.

By taking these precautions, you can ensure that the correct CPU power cable is selected, minimizing the risk of mismatching and related issues.

2.4 Manufacturing Defects

In rare cases, manufacturing defects can lead to CPU power cable mismatches. If you suspect a manufacturing defect, consider the following:

• Contact the manufacturer: Reach out to the motherboard or power supply unit manufacturer's customer support for assistance. They may provide troubleshooting steps or offer a replacement if a defect is confirmed.
• Quality control: Before purchasing any computer components, research the reputation and reliability of the manufacturer. Choosing reputable brands with good quality control can minimize the chances of encountering manufacturing defects.

It's important to note that manufacturing defects are uncommon, but they can occur. Contacting the manufacturer is the best course of action in such cases.

3. Ensuring Compatibility to Avoid CPU Power Cable Mismatch

To avoid the issue of CPU power cable mismatch altogether, there are some steps you can take during the building or upgrading process:

• Research motherboard and power supply unit compatibility: Before purchasing components, ensure the motherboard and power supply unit are compatible and support the required CPU power cable type.
• Read manuals and specifications: Refer to the manuals and specifications provided by the motherboard and power supply unit manufacturers to understand the supported CPU power cable connectors.
• Consult online forums and communities: Engaging with experienced computer builders or seeking advice from online communities can provide valuable insights regarding compatibility and potential issues.
• Consider professional assistance: If you're inexperienced or unsure about the compatibility, consulting a professional computer technician or builder can help ensure a smooth installation process.

By following these steps, you can ensure compatibility between your motherboard, power supply unit, and CPU power cable, minimizing the chances of encountering a mismatch.

Overcoming Challenges with CPU Power Cable Mismatch

In addition to understanding the potential causes of CPU power cable mismatch, it's important to explore how to overcome these challenges:

1. Using Cable Adapters

Cable adapters can be extremely useful in overcoming compatibility issues between CPU power cables and connectors. These adapters act as a bridge, allowing you to connect mismatched cables and ensuring proper power delivery to the CPU. However, it's important to note that using adapters may limit the maximum power delivery capacity to the CPU, so it's recommended to opt for a direct connection whenever possible.

When using cable adapters, ensure they are of high quality and sourced from reputable manufacturers to prevent any potential risks or malfunctions.

2. Splitters and Converters

In situations where an 8-pin EPS12V connector is not available on the power supply unit, but the motherboard requires it, a splitter or converter can be used. These devices allow you to split or convert the available connectors on the power supply unit to match the required CPU power cable connector. However, it's crucial to ensure that the power supply unit can handle the increased power demand when using splitters or converters.

It's recommended to consult the power supply unit manual or contact the manufacturer to determine the compatibility and suitability of using splitters or converters.

3. Upgrading the Power Supply Unit

In cases where the existing power supply unit is incompatible or lacks the required connectors, upgrading to a newer unit can be a viable solution. Upgrading not only ensures compatibility with the CPU power cable and the motherboard but also provides an opportunity to enhance power delivery and overall performance.

Before upgrading the power supply unit, consider factors such as wattage, efficiency, and modular or non-modular design based on your specific requirements.

4. Seeking Professional Assistance

If you're uncertain about handling the CPU power cable mismatch or have concerns about potential consequences, seeking professional assistance is always an option. A skilled computer technician or builder can provide guidance, diagnose the issue accurately, and recommend appropriate solutions while minimizing the risk of damage to the components.

However, it's important to select professionals or services with a proven track record and expertise in computer hardware to ensure reliable assistance and quality support.

By considering these strategies and seeking the necessary help, you can overcome the challenges posed by CPU power cable mismatches and ensure a smooth and successful computer build or upgrade.

In conclusion, CPU power cable mismatch can be a frustrating issue during computer building or upgrading. Understanding the different types of CPU power cables, the causes of mismatches, and the steps to ensure compatibility are essential to minimize the risk of encountering this problem. By following the recommended solutions and seeking professional assistance when needed, computer users can overcome these challenges and enjoy a well-functioning system.

Mismatched CPU Power Cable

One common issue that computer users may encounter is when the CPU power cable does not match. This can cause frustration and confusion, especially for those who may not be familiar with computer hardware. The CPU power cable is an essential component that supplies power to the CPU, ensuring that it runs smoothly and efficiently.

When the CPU power cable does not match, it means that the connectors on the cable do not fit into the corresponding ports on the CPU. This can occur due to various reasons, such as using incompatible cables, incorrect cable connections, or faulty cables.

To resolve this issue, it is important to identify the specific type of power cable required for your CPU. Refer to the CPU's user manual or contact the manufacturer for guidance. Ensure that you have the correct cable and check that all connections are secure. If the issue persists, consider seeking assistance from a professional computer technician to avoid any further damage to your CPU or other components.

Frequently Asked Questions

Here are some common questions related to CPU power cable mismatches:

1. What should I do if my CPU power cable does not match?

If your CPU power cable does not match the connectors on your motherboard or power supply, it is important not to force the cable into place. Using an incompatible power cable can damage your components and potentially cause a fire hazard. Instead, double-check the compatibility of your power cable with your motherboard and power supply. Consult the user manual or the manufacturer's website for detailed information. If necessary, purchase the correct power cable that matches your components' connectors.

Remember to always turn off and unplug your computer before making any changes or connections.

2. Can I use an adapter to connect a mismatched CPU power cable?

While it is possible to use an adapter to connect a mismatched CPU power cable, it is generally not recommended. Adapters may introduce compatibility issues, reduce power delivery efficiency, and increase the risk of component damage or failure. It is safer and more reliable to use a power cable that directly matches the connectors on your motherboard and power supply.

If you are unsure about which power cable to use or have concerns about compatibility, it is advisable to consult with a qualified computer technician or contact the manufacturer for guidance.

3. Why do CPU power cables come in different configurations?

CPU power cables come in different configurations to accommodate various motherboard and power supply designs. Different computer models may require different power cable setups based on their voltage requirements, connector types, and power delivery specifications. Manufacturers aim to provide users with the appropriate power cables that align with the specific components' needs.

It is crucial to ensure that you are using the correct power cable configuration for your specific computer model to prevent any compatibility issues or potential damage.

4. How do I identify the correct CPU power cable for my computer?

To identify the correct CPU power cable for your computer, you should refer to your motherboard and power supply documentation. The user manual or the manufacturer's website usually provides information on the compatible power cables and their specific configurations.

If you are unsure or cannot find the necessary information, it is best to contact the manufacturer's customer support or consult with a computer technician who can help you identify the correct power cable for your computer.

5. Can using a mismatched CPU power cable damage my computer?

Using a mismatched CPU power cable can potentially damage your computer components. Incompatible power cables may not supply the correct voltage or current required by the components, which can lead to unstable performance, system crashes, or even permanent damage to your CPU, motherboard, or other connected devices.

It is crucial to use the correct power cable that matches the connectors on your motherboard and power supply to ensure safe and reliable operation of your computer.

In summary, if you find that your CPU power cable does not match the port on your computer or motherboard, it is important to address this issue properly.

First, check the compatibility between the cable and the port. Ensure that you are using the correct type of cable that is designed to fit your specific hardware. If the cable is indeed incompatible, you will need to obtain the correct one.
