How To Deploy Azure Firewall

Deploying Azure Firewall is a crucial step in securing your network infrastructure. With its advanced features and capabilities, Azure Firewall provides robust protection against threats and unauthorized access. Did you know that Azure Firewall can be easily deployed and configured to fit your specific security requirements? This powerful tool empowers you with the ability to monitor and control network traffic, allowing you to safeguard your resources and keep your data safe.

When deploying Azure Firewall, you can take advantage of its rich set of features, including application and network-level filtering, threat intelligence, and integration with Azure services. By leveraging Azure Firewall, you can establish secure connections between your virtual networks and the internet, protecting your workloads from unauthorized access. With its scalability and ease of use, Azure Firewall offers a reliable solution for organizations of all sizes. Deploy Azure Firewall today and fortify your network security while ensuring seamless connectivity for your applications and users.

Overview of Azure Firewall Deployment

Azure Firewall is a cloud-based network security service provided by Microsoft Azure. It allows organizations to protect their Azure Virtual Network resources with a fully stateful firewall and provides centralized network security management across multiple Azure subscriptions and virtual networks. In this article, we will guide you through the process of deploying Azure Firewall to enhance the security of your Azure environment.

Step 1: Create an Azure Firewall

To deploy Azure Firewall, the first step is to create an instance of Azure Firewall in your Azure subscription. Follow these steps:

• Login to the Azure portal.
• Select "Create a resource" and search for "Azure Firewall".
• Click on "Azure Firewall" from the search results.
• Click on "Create" to start the creation process.
• Provide a unique name for the Azure Firewall instance and choose the subscription, resource group, and region where you want to deploy it.
• Choose the firewall's SKU and virtual network deployment type.
• Create or select an existing virtual network and subnet where the Azure Firewall will be deployed.
• Configure the IP address for the firewall's private IP and public IP (optional).
• Review the settings and click on "Create" to create the Azure Firewall.

Considerations for Firewall SKUs

When selecting the firewall's SKU, there are a few things to consider:

• Azure Firewall Basic SKU: Ideal for basic network security requirements and low-capacity scenarios.
• Azure Firewall Standard SKU: Suited for high-availability scenarios and provides higher throughput and more public IP addresses.
• Azure Firewall Premium SKU: Offers threat intelligence-based filtering and is recommended for advanced security requirements.

Choose the SKU that best suits your security and performance needs.

Step 2: Configure Network Rules

After creating the Azure Firewall, you need to configure network rules to allow or deny inbound and outbound traffic. Follow these steps:

• Navigate to the Azure Firewall resource you created.
• Go to the "Firewall" tab and click on "Network Rules".
• Click on "Add inbound rule" or "Add outbound rule" to define the required rules.
• Specify the source and destination IP addresses, ports, protocols, and action (Allow/Deny).
• Optionally, configure rule collections for more granular control.
• Save your configuration.

Rule Prioritization

Azure Firewall evaluates network rules based on the prioritization specified. The rules are evaluated sequentially, and the first rule that matches the traffic flow is applied.

Ensure you set the proper priorities for your rules to avoid conflicts or unintended network access.

Step 3: Configure Application Rules

Azure Firewall supports application rules, which allow or deny outbound network traffic based on FQDN (Fully Qualified Domain Name). To configure application rules, follow these steps:

• Go to the Azure Firewall resource.
• Select the "Application Rules" tab.
• Click on "Add application rule" to add a rule.
• Specify the name, source, destination FQDN, protocol, and action (Allow/Deny).
• Optionally, configure rule collections for more granular control.
• Save your configuration.

Use Case Example: Blocking Unwanted Applications

You can use Azure Firewall's application rules to block access to specific applications or websites. For example, you can create a rule to deny access to social media websites during work hours or block access to known malicious domains.

Step 4: Configure NAT Rules

Azure Firewall allows you to create Network Address Translation (NAT) rules to translate and redirect traffic to specific IP addresses or ranges. To configure NAT rules, follow these steps:

• Open the Azure Firewall resource.
• Go to the "NAT" tab.
• Click on "Add NAT rule" to create a new NAT rule.
• Define the source IP address, source port range, destination IP address, destination port, and translated address.
• Optionally, configure the outbound NAT rule collection.
• Save your configuration.

Use Case Example: Load Balancing

You can utilize Azure Firewall's NAT rules to distribute traffic across multiple backend servers by configuring a load balancing NAT rule. This allows for increased scalability and redundancy in your network architecture.

Step 5: Configure DNS Settings

Azure Firewall allows you to configure DNS settings to define custom DNS servers for name resolution. To configure DNS settings, follow these steps:

• Navigate to the Azure Firewall resource.
• Go to the "DNS Settings" tab.
• Choose the DNS server configuration option:
• - "Azure DNS Private Zones" allows resolution within virtual networks connected via Azure Virtual Network Peering or VPN Gateway connections.
• - "Azure DNS Forwarder" allows the firewall to forward DNS requests to internal or external DNS servers.
• Configure the appropriate DNS settings based on your network requirements.
• Save your configuration.

Considerations for DNS Settings

When configuring DNS settings, ensure that you define DNS servers that are accessible by the Azure Firewall instance to enable proper name resolution.

The DNS settings you configure can vary depending on your network architecture and connectivity requirements.

Monitoring and Troubleshooting Azure Firewall

Once you have deployed Azure Firewall and configured the necessary rules, it is essential to monitor and troubleshoot the firewall's performance to identify any security or connectivity issues. The Azure portal provides several built-in tools and features to help you monitor and troubleshoot Azure Firewall effectively.

Azure Firewall Diagnostic Logs

Azure Firewall generates diagnostic logs that can provide critical information for troubleshooting and monitoring purposes. These logs capture information such as firewall rules applied, traffic flow details, and security rule matches. To access the diagnostic logs:

• Go to the Azure Firewall resource.
• Select "Diagnostic settings" from the left-hand menu.
• Click on "Add diagnostic setting" to add a new setting.
• Configure the desired diagnostic logs and destination storage account.
• Save your settings.

Azure Firewall Metrics

Azure provides several built-in metrics that can help you monitor the performance and health of your Azure Firewall instance. These metrics include information about CPU utilization, network throughput, and connection count. To view the metrics:

• Navigate to the Azure Firewall resource.
• Select "Metrics" from the left-hand menu.
• Choose the desired metrics and time range for analysis.
• Review and analyze the metric data.

Azure Monitor and Alerts

Azure Monitor provides a centralized platform for monitoring and alerting on Azure Firewall metrics and logs. You can create custom alerts based on specific conditions and thresholds to receive notifications when an issue arises. To set up alerts:

• Go to the Azure Firewall resource.
• Select "Alerts" from the left-hand menu.
• Click on "New alert rule" to create a new rule.
• Configure the alert rule conditions, action groups, and notification preferences.
• Save your alert rule.

Azure Firewall Insights

Azure Firewall Insights provides visualizations and analytics to help you understand the network traffic patterns and threats in your environment. It leverages Azure Firewall logs and machine learning algorithms to provide actionable insights. To access Azure Firewall Insights:

• Go to the Azure portal.
• Search for "Azure Firewall Insights" and select the service.
• Choose the Azure Firewall resource you want to analyze.
• Explore the insights and recommendations provided.

Conclusion

Deploying Azure Firewall is a crucial step in securing your Azure environment. By following the steps outlined in this article, you can create an Azure Firewall instance, configure network rules, application rules, NAT rules, and DNS settings to enhance the security and control of inbound and outbound network traffic. Additionally, utilizing the monitoring and troubleshooting features provided by Azure can help you effectively monitor and troubleshoot Azure Firewall for optimal performance and security. Take advantage of Azure Firewall's powerful features and capabilities to safeguard your Azure resources from unauthorized access and potential threats.

Deploying Azure Firewall

Deploying Azure Firewall is a crucial step in securing your Azure network and protecting your resources from unauthorized access. Follow these steps to deploy Azure Firewall:

• Create a new resource group in the Azure portal.
• Navigate to the resource group and click on "Add" to add a new resource.
• In the search bar, type "Azure Firewall" and select the Azure Firewall option.
• Click on "Create" to begin the deployment process.
• Provide a name, subscription, and resource group for the Azure Firewall instance.
• Configure the required settings such as public IP address, virtual network, and subnet.
• Review the configuration settings and click on "Review + create" to validate and create the Azure Firewall instance.
• Once the deployment is complete, you can start configuring the firewall rules and network settings for your Azure resources.

By following these steps, you can easily deploy Azure Firewall and enhance the security of your Azure network.

Frequently Asked Questions

Here are some frequently asked questions about deploying Azure Firewall:

1. What is Azure Firewall?

Azure Firewall is a cloud-based network security service provided by Microsoft Azure. It acts as a barrier between an organization's internal network and the internet, preventing unauthorized access to or from the network and providing advanced security features.

It allows organizations to control and enforce network security policies, filter outbound and inbound network traffic, and protect their resources hosted on Azure. Azure Firewall is a fully managed service that offers high availability, scalability, and compatibility with other Azure services.

2. How do I deploy Azure Firewall?

To deploy Azure Firewall, you need to follow these steps:

• Create an Azure Firewall resource in your Azure portal.
• Configure the firewall settings, such as IP forwarding and DNS proxy.
• Define network rules and security policies for inbound and outbound traffic.
• Associate the firewall with the desired subnet or virtual network.
• Test the firewall configurations and monitor its performance.

These steps should be performed by a network administrator or someone with expertise in network security to ensure proper configuration and deployment of Azure Firewall.

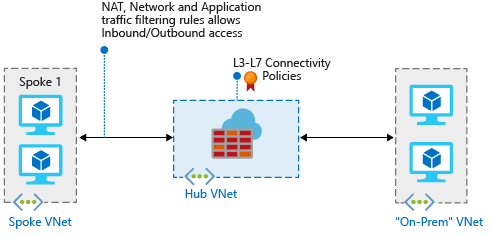

3. Can I deploy Azure Firewall in a hub-and-spoke network architecture?

Yes, Azure Firewall can be deployed in a hub-and-spoke network architecture. This architecture is commonly used in large organizations to centralize network security management and simplify network connectivity.

In this architecture, the hub represents a central network or data center, while the spokes represent branch offices or cloud environments. Azure Firewall can be deployed in the hub to secure all network traffic between the hub and spokes, providing centralized security control.

4. What are some of the advanced security features offered by Azure Firewall?

Azure Firewall offers several advanced security features, including:

• Application rules: Allow or deny access based on application-specific protocols and domains.
• NAT (Network Address Translation) rules: Translate internal IP addresses to external IP addresses.
• Threat intelligence-based filtering: Block traffic from known malicious IP addresses.
• URL filtering: Control access to specific websites or categories of websites.
• User-defined routing: Direct traffic to specific network paths based on custom routing rules.

5. Is Azure Firewall integrated with other Azure services?

Yes, Azure Firewall is tightly integrated with other Azure services. It can seamlessly integrate with Azure Virtual Network, Azure Monitor, Azure Security Center, and Azure Log Analytics, providing comprehensive network security and monitoring capabilities.

By integrating with these services, Azure Firewall can leverage their capabilities to enhance network security, detect and respond to security threats, and provide detailed logs and insights for analysis and auditing.

So there you have it! Deploying Azure Firewall is a crucial step in securing your Azure environment. By following the simple steps outlined in this article, you can easily set up and configure Azure Firewall to protect your resources.

Remember to carefully plan your firewall rules and network architecture to ensure maximum security. Regularly monitor and update your firewall configuration to adapt to changing security needs. With Azure Firewall in place, you can have peace of mind knowing that your Azure environment is safeguarded against unauthorized access and threats.
