How To Configure SSL Vpn In Sophos Xg Firewall

When it comes to securing your network and enabling remote access for your employees, configuring SSL VPN in Sophos XG Firewall is an essential step. With SSL VPN, you can provide secure access to your network resources from anywhere, ensuring that your sensitive data remains protected. This powerful solution offers flexibility and ease of use, making it a popular choice for businesses of all sizes.

Configuring SSL VPN in Sophos XG Firewall involves a few simple steps. First, you need to set up the necessary SSL VPN policies and user accounts. Then, you can configure the VPN settings and customize the authentication options to fit your requirements. With SSL VPN, you can enable secure access for your remote workforce, allowing them to connect to your network resources without compromising security. This solution not only enhances productivity but also ensures that your sensitive data remains safe from unauthorized access.

Understanding SSL VPN in Sophos XG Firewall

Sophos XG Firewall provides a secure and user-friendly way to connect remote users to the organization's network through SSL VPN (Secure Sockets Layer Virtual Private Network). SSL VPN allows remote users to access resources on the company's network securely using an encrypted connection over the internet. This article will guide you through the process of configuring SSL VPN in Sophos XG Firewall, ensuring a seamless and secure remote access experience.

Step 1: Prepare the SSL VPN Configuration

The first step in configuring SSL VPN in Sophos XG Firewall is to prepare the necessary SSL VPN configuration. This involves defining the user authentication methods, IP addressing, and user access controls. Here's how you can do it:

Define User Authentication Methods

In the Sophos XG Firewall user portal, navigate to the Authentication > Authentication Services page. Here, you can configure the authentication methods for SSL VPN. You can choose from a range of options, including local database, Active Directory, LDAP, RADIUS, and more. Configure the desired authentication method(s) according to your organization's requirements.

For example, if you choose to use the local database, you can create and manage user accounts within Sophos XG Firewall itself. If you prefer to use an external authentication server, such as Active Directory or LDAP, you need to configure the server settings and synchronize user accounts.

Ensure that the selected user authentication method(s) align with your organization's security policies and requirements. It is recommended to use strong authentication methods, such as two-factor authentication, for enhanced security.

Configure IP Addressing

Next, you need to define the IP addressing settings for SSL VPN. This includes specifying the IP range that will be assigned to remote SSL VPN clients. In the Sophos XG Firewall user portal, go to the Authentication > IP Addressing page. Here, you can configure the IP range and subnet mask for SSL VPN clients.

Choose an IP range that does not conflict with the existing IP addresses in your network. Additionally, consider the number of remote users and the available IP addresses in the specified range to ensure there are enough addresses for all the clients.

Define User Access Controls

To control the resources that remote SSL VPN clients can access, you need to define user access controls. In the Sophos XG Firewall user portal, navigate to the SSL VPN > Access page. Here, you can create access rules specifying which networks, services, and applications the SSL VPN clients can reach.

Create rules based on source and destination IP addresses, port numbers, and protocol types to grant or restrict access to specific resources. This allows you to enforce granular access policies and ensure that remote users only have access to the necessary resources within your network.

Step 2: Configure the SSL VPN Connection

After preparing the SSL VPN configuration, the next step is to configure the SSL VPN connection settings. This involves specifying the connection settings and configuring the SSL VPN client access. Follow these steps to complete the configuration:

Specify Connection Settings

In the Sophos XG Firewall user portal, go to the SSL VPN > Settings page. Here, you can specify the SSL VPN connection settings. Configure the following:

• SSL VPN port: Specify the port number to be used for SSL VPN connections. The default port is 443.
• Virtual IP Pool: Select the IP address range configured in the previous step for SSL VPN clients.
• Access Method: Choose the access method for SSL VPN clients. The options include Full Tunnel, Split Tunnel, and Reverse Split Tunnel.
• DNS Server: Configure the DNS server settings to enable remote DNS resolution for SSL VPN clients.

Configure SSL VPN Client Access

To allow SSL VPN client access, navigate to the SSL VPN > Client Settings page. Here, you can configure the SSL VPN client access options. These include the authentication method, download links for SSL VPN clients, and the configuration file.

Select the appropriate authentication method, such as username/password or certificate-based authentication. Provide the necessary details and enable the SSL VPN client access method(s) you wish to support. You can also customize the SSL VPN login page and add a company logo if needed.

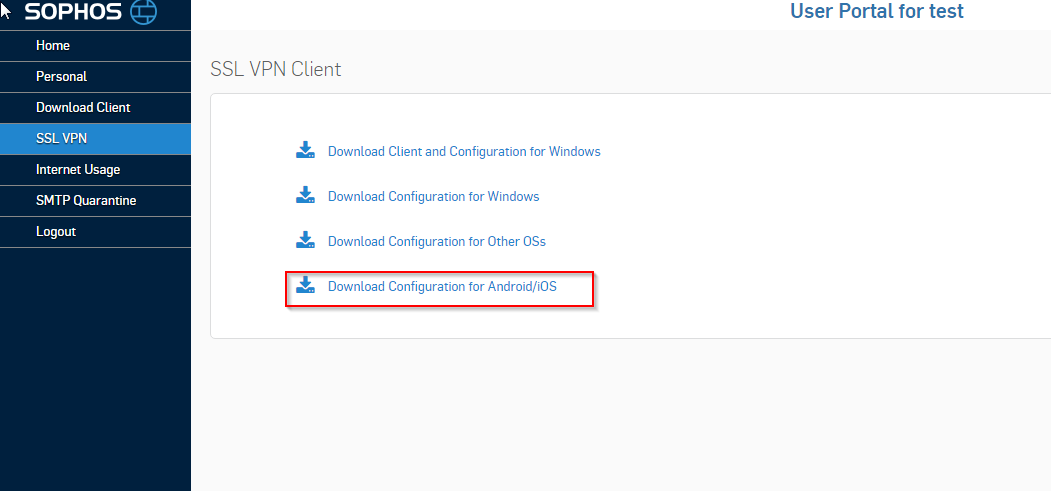

After configuring these settings, provide the SSL VPN client download links and configuration file to the remote users. They can use this information to establish the SSL VPN connection from their devices.

Step 3: Test and Monitor the SSL VPN Connection

Once you have completed the configuration, it is crucial to test and monitor the SSL VPN connection to ensure its functionality and security. Here are a few steps you can take:

Test the SSL VPN Connection

As an administrator, test the SSL VPN connection using a remote device. Install the SSL VPN client, establish the connection using the provided credentials, and verify if you can access the permitted resources within your network. This step helps identify any configuration issues and ensures that remote users will have a smooth experience.

Monitor SSL VPN Traffic

Monitor the SSL VPN traffic to detect any unusual activities or potential security threats. Sophos XG Firewall provides comprehensive logging and reporting capabilities, allowing you to monitor the SSL VPN connection status, client activities, and traffic patterns. Regularly reviewing these logs will help you proactively identify and address any security concerns.

Regularly Update SSL VPN Configuration

Ensure that you regularly update your SSL VPN configuration based on your organization's evolving needs. Regularly review the user access controls, authentication methods, and encryption protocols to keep up with the latest security standards. Additionally, apply software updates and patches to Sophos XG Firewall to address any vulnerabilities.

Educate Remote Users

Provide remote users with clear instructions on how to use the SSL VPN service and educate them about best practices for remote access security. Encourage them to use strong passwords, enable two-factor authentication if available, and avoid accessing sensitive information from public networks. Regularly communicate with remote users to address any concerns and provide necessary updates.

Maximizing the Potential of SSL VPN in Sophos XG Firewall

In addition to the basic configuration steps, you can further enhance and optimize the SSL VPN deployment in Sophos XG Firewall. Consider the following aspects to maximize the potential of SSL VPN:

Network Segmentation

Segment your network into different zones and create separate SSL VPN access rules for each zone. This provides an additional layer of security by limiting access to specific resources based on the user's role or department. It also helps in traffic management and reduces the risk of unauthorized access.

Endpoint Compliance

Enforce endpoint compliance by implementing policies that ensure remote devices meet the required security standards before they can establish an SSL VPN connection. This can include checking for updated operating systems, antivirus software, and firewall protection. Endpoint compliance ensures that only secure and trusted devices can access your network resources.

Traffic Prioritization

If your organization's network has limited bandwidth, prioritize SSL VPN traffic to ensure a responsive and seamless user experience. You can implement Quality of Service (QoS) policies in Sophos XG Firewall to prioritize SSL VPN traffic over other less critical traffic, such as web browsing or file downloads.

Advanced Authentication Methods

Incorporate advanced authentication methods, such as single sign-on (SSO) or multi-factor authentication (MFA), to strengthen the security of SSL VPN connections. SSO allows users to authenticate once and access multiple resources, reducing the need for multiple login attempts. MFA adds an extra layer of security by requiring users to provide additional verification, such as a one-time password or biometric authentication.

Conclusion

Configuring SSL VPN in Sophos XG Firewall is a crucial step in enabling secure remote access to your organization's network. By following the step-by-step configuration process and considering the additional optimization options, you can ensure a seamless and protected remote access experience. Regularly monitor and update your SSL VPN configuration to stay ahead of security threats and evolving requirements. With Sophos XG Firewall's SSL VPN capabilities, you can provide your remote users with secure and flexible access to network resources.

Configuring SSL VPN in Sophos XG Firewall

To configure SSL VPN in Sophos XG Firewall, follow these steps:

1. Log in to the Sophos XG Firewall web interface.

2. Navigate to the "VPN" section and click on "SSL VPN".

3. Click on "Add" to create a new SSL VPN tunnel.

4. Enter a name for the VPN tunnel and select "Remote Access" as the VPN type.

5. Set the authentication method, such as using Active Directory or local accounts.

6. Configure the SSL VPN server settings, including the IP range for VPN clients and DNS/WINS server details.

7. Customize the SSL VPN portal appearance and configure any additional settings, such as enabling two-factor authentication.

8. Click on "Save" to apply the changes and activate the SSL VPN configuration.

Once the SSL VPN is configured, users can connect using the appropriate VPN client software and credentials provided by the administrator.

Frequently Asked Questions

Here are some frequently asked questions about configuring SSL VPN in Sophos XG Firewall:

1. What is an SSL VPN and why is it important for Sophos XG Firewall?

An SSL VPN, or Secure Sockets Layer Virtual Private Network, allows users to securely access a private network over the internet using encryption and authentication. It is important for Sophos XG Firewall as it provides a secure and encrypted connection for remote access, protecting sensitive data and ensuring secure communication between the user and the network.

Moreover, SSL VPNs offer granular access controls, allowing administrators to define which resources and services users can access.

2. How can I configure SSL VPN in Sophos XG Firewall?

To configure SSL VPN in Sophos XG Firewall, you need to follow these steps:

1. Log in to the Sophos XG Firewall web administration interface.

2. Navigate to the "VPN" section and select "SSL VPN."

3. Click on "Add" to create a new SSL VPN connection profile.

4. Configure the general settings, such as the VPN name, authentication method, and encryption options.

5. Define the user group or individual users who will have access to the SSL VPN.

6. Specify the network resources or services that the SSL VPN users can access.

7. Save the configuration and test the SSL VPN connection to ensure it is working properly.

3. What are the authentication methods supported by Sophos XG Firewall for SSL VPN?

Sophos XG Firewall supports multiple authentication methods for SSL VPN, including:

- Local user database authentication

- Active Directory authentication

- RADIUS authentication

- LDAP authentication

These authentication methods provide flexibility in managing user access to the SSL VPN.

4. Are there any additional security features I should consider when configuring SSL VPN in Sophos XG Firewall?

Yes, there are several additional security features you should consider when configuring SSL VPN in Sophos XG Firewall:

- Two-factor authentication: Implementing two-factor authentication adds an extra layer of security by requiring users to provide a second form of verification, such as a token or OTP (one-time password), in addition to their username and password.

- Intrusion Prevention System (IPS): Enable IPS to detect and prevent network attacks, ensuring the SSL VPN connection is protected from potential threats.

- Endpoint compliance check: By enabling endpoint compliance check, you can ensure that the devices connecting to the SSL VPN meet certain security requirements, such as having up-to-date antivirus software and operating system patches.

Implementing these security features enhances the overall security of your SSL VPN deployment.

5. Can I monitor and log SSL VPN activity in Sophos XG Firewall?

Yes, Sophos XG Firewall provides comprehensive monitoring and logging capabilities for SSL VPN activity. You can review logs and reports to track user activity, identify potential security incidents, and monitor VPN performance.

Additionally, you can configure real-time alerts to receive notifications about specific SSL VPN events, such as failed logins or unauthorized access attempts.

To conclude, configuring SSL VPN in Sophos XG Firewall is a straightforward process that ensures secure remote access to your network resources. By following the steps outlined in this guide, you can easily set up SSL VPN and provide your users with a secure and convenient way to connect to your network from anywhere.

Remember to carefully configure SSL VPN policies, including authentication methods and access controls, to ensure only authorized users can access your network. Regularly review and update your SSL VPN settings to maintain the highest level of security. With SSL VPN enabled, you can confidently offer remote access to your network while maintaining the confidentiality and integrity of your data.
