Which Slot For Graphics Card

When it comes to choosing the right slot for your graphics card, there are a few key considerations to keep in mind. One surprising fact to note is that not all slots are created equal. Did you know that the type of slot you use can impact the performance and compatibility of your graphics card? Whether it's PCIe, AGP, or PCI, the slot you choose can determine how well your graphics card functions within your system.

Understanding the history and background of different slots for graphics cards can help you make an informed decision. Over the years, technology has evolved, and newer slots like PCIe have become the standard for high-performance graphics cards. In fact, PCIe (Peripheral Component Interconnect Express) offers faster data transfer rates and improved bandwidth compared to older slots, making it an ideal choice for gaming or graphic-intensive applications. By considering the compatibility, performance, and available slots in your system, you can find the perfect slot for your graphics card that meets your needs and enhances your overall computing experience.

Introduction: Understanding the Importance of Choosing the Right Slot for Your Graphics Card

When it comes to upgrading or replacing your graphics card, one of the most critical considerations is selecting the appropriate slot on your motherboard. Choosing the right slot ensures optimal performance and compatibility with your system. However, with the variety of slots available, it can be confusing to determine which one is best suited for your graphics card. In this article, we will explore the different types of slots and provide you with valuable insights on which slot is ideal for your graphics card.

PCI Express (PCIe) Slots: The Standard for Modern Graphics Cards

PCI Express (PCIe) slots have become the standard interface for modern graphics cards. These slots offer superior bandwidth and data transfer rates compared to their predecessors. PCIe slots are typically found on most contemporary motherboards and come in different versions such as PCIe 1.0, PCIe 2.0, PCIe 3.0, and the latest PCIe 4.0.

The PCIe 4.0 version provides the highest bandwidth and is backward compatible with older versions. However, it's essential to check your motherboard's specifications to ensure compatibility with PCIe 4.0. Graphics cards designed for PCIe 4.0 will also work in PCIe 3.0 slots, albeit at a reduced bandwidth.

When choosing a slot for your graphics card, it is crucial to consider the number of PCIe lanes the slot supports. PCIe slots can vary in the number of lanes, such as x16, x8, x4, or x1. The number of lanes directly affects the bandwidth available to the graphics card. Generally, a higher number of lanes equates to better performance, especially for high-end graphics cards that demand significant data transfer rates.

If you have a high-end graphics card, look for a PCIe x16 slot, as it offers the maximum number of lanes and provides optimal performance. However, if you have multiple graphics cards to install, you may need to consider using multiple PCIe slots with lower lane configurations, such as x8 or x4, depending on your motherboard's capabilities.

Considerations for Multiple Graphics Cards

If you plan to install multiple graphics cards for tasks such as gaming or GPU-intensive workloads, it's vital to select the right combination of PCIe slots to ensure smooth operation and maximum performance.

When using multiple graphics cards, it's essential to understand the concept of SLI (Scalable Link Interface) and CrossFire if you have an AMD graphics card. SLI enables multiple NVIDIA graphics cards to work together, while CrossFire allows multiple AMD graphics cards to operate together.

If you're using SLI or CrossFire, ensure that your motherboard supports the technology and has the necessary PCIe slots to accommodate the cards. For SLI, you typically need two PCIe x16 slots operating at full x16 bandwidth or two PCIe x16 slots working at x8 or x16 bandwidth. For CrossFire, a similar configuration is required.

It's important to consult your motherboard's manual or specifications to determine the optimal PCIe slot configuration for multiple graphics cards while considering the available expansion slots and PCIe lane configurations.

Legacy Slots: AGP and PCI

Before the advent of PCIe slots, AGP (Accelerated Graphics Port) and PCI (Peripheral Component Interconnect) slots were prevalent on older motherboards. These legacy slots are now outdated and no longer found on modern motherboards. However, it's worth mentioning them for historical context.

AGP slots were commonly used for graphics cards before PCIe became the standard. They provided a dedicated connection between the graphics card and the CPU, allowing for higher performance compared to the PCI bus. However, AGP slots phased out in favor of PCIe slots due to the latter's superior performance and scalability.

PCI slots, on the other hand, were more versatile and used for a variety of expansion cards, including graphics cards. PCI slots have been largely replaced by PCIe slots due to their limited bandwidth and slower data transfer rates. Most modern graphics cards require the higher bandwidth provided by PCIe slots to deliver optimal performance.

Compatibility Considerations

If you happen to have an older system with AGP or PCI slots, it's crucial to ensure compatibility with your graphics card. Most modern graphics cards are designed exclusively for PCIe slots and are not backward compatible with AGP or PCI.

However, if you have an older graphics card compatible with AGP or PCI, you can still find motherboards that support these slots. It's essential to consult the specifications of your graphics card and motherboard to ensure compatibility.

It's worth noting that running a modern high-end graphics card on an older AGP or PCI slot may lead to severe performance bottlenecks. It's highly recommended to upgrade to a modern motherboard with PCIe slots to take full advantage of the capabilities of newer graphics cards.

Next-Generation Slots: M.2 and Thunderbolt

In recent years, new peripheral slots have emerged to enhance the connectivity and performance of graphics cards. These include M.2 slots and Thunderbolt ports, both offering unique advantages for specific use cases.

M.2 Slots: Compact and High-Speed Storage Solution

M.2 slots were initially introduced as a storage solution but have gained popularity for their ability to support expansion cards, including graphics cards. M.2 slots offer high-speed data transfer rates and a compact form factor, making them ideal for small form factor systems.

When using an M.2 slot for a graphics card, it's essential to consider the available bandwidth. M.2 slots come in different versions, such as M.2 SATA and M.2 PCIe. M.2 PCIe slots provide higher bandwidth and are suitable for high-performance graphics cards.

It's crucial to consult your motherboard's specifications and the graphics card requirements to ensure compatibility and optimal performance when using an M.2 slot for a graphics card.

Potential Limitations of M.2 Slots

While M.2 slots offer various advantages, they may have limitations concerning power and cooling for graphics cards. M.2 slots are primarily designed for storage devices, and their power delivery and cooling capabilities may not be sufficient for high-end graphics cards that require additional power and cooling solutions.

If you plan to use an M.2 slot for a graphics card, ensure that your motherboard provides the necessary power and cooling support. Some motherboards offer dedicated M.2 slots specifically designed for graphics card usage.

It's important to note that using an M.2 slot for a graphics card may affect the overall performance of your storage devices, as it shares bandwidth with other M.2 devices. If you have multiple M.2 storage devices, check if using an M.2 slot for a graphics card will impact their performance.

Thunderbolt Ports: Versatile and High-Speed Connectivity

Thunderbolt ports offer versatile connectivity solutions and high-speed data transfer rates. While they are primarily used for external devices such as displays and storage, some motherboards support Thunderbolt expansion cards for graphics cards.

Thunderbolt ports provide impressive bandwidth, making them suitable for graphics-intensive tasks and multi-display setups. However, it's important to note that Thunderbolt graphics card support may vary depending on the motherboard manufacturer and the specific model.

Before using a Thunderbolt port for a graphics card, ensure that your motherboard supports Thunderbolt expansion cards and check for any compatibility limitations or performance considerations.

Expanding Graphics Card Connectivity Options

M.2 slots and Thunderbolt ports present innovative options for expanding graphics card connectivity beyond traditional PCIe slots. These slots offer flexibility for specific use cases, such as compact systems or workstations requiring high-speed connectivity.

However, it's essential to carefully review the compatibility and performance implications of using M.2 slots and Thunderbolt ports for graphics cards. Depending on your specific requirements and system configuration, these slots may provide valuable options for expanding your graphics card connectivity.

In conclusion, when choosing the right slot for your graphics card, PCIe slots are typically the preferred choice due to their superior performance and compatibility with modern graphics cards. However, if you have a specific use case or an older system, options such as AGP, PCI, M.2, or Thunderbolt may be worth considering. Always refer to your motherboard's specifications and consult with the graphics card manufacturer to ensure optimal performance and compatibility.

Choosing the Right Slot for Your Graphics Card

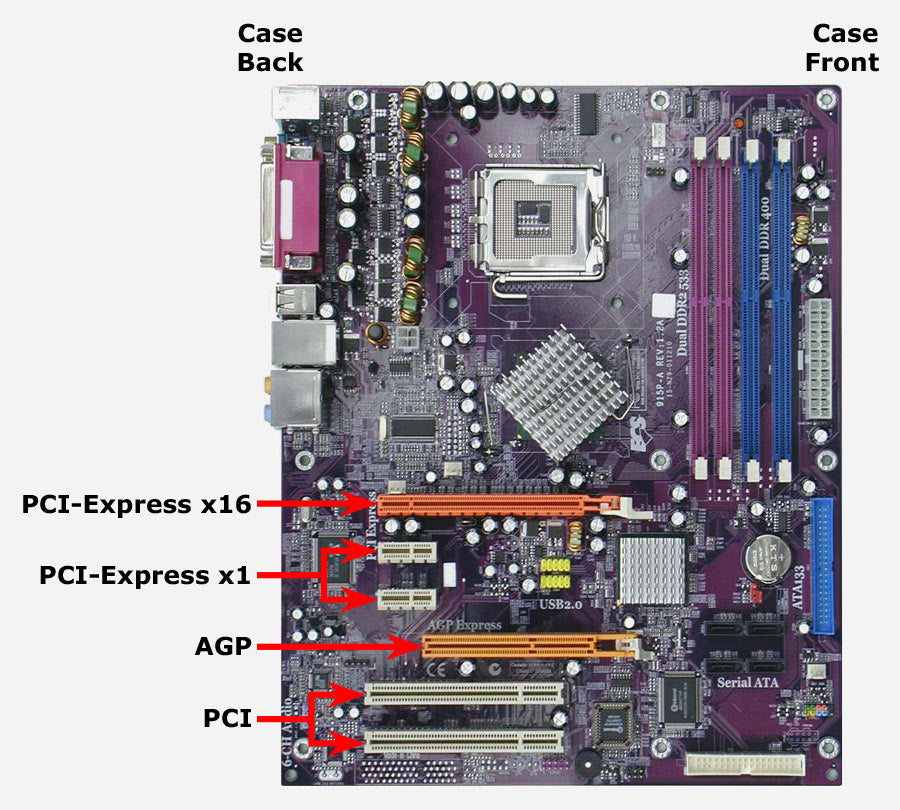

When it comes to installing a graphics card, choosing the right slot is crucial for optimal performance. There are several types of slots available on a motherboard, including PCI, PCI Express, and AGP. So, which slot should you use?

The most common and recommended slot for graphics cards is PCI Express (PCIe). PCIe slots provide faster data transfer speeds compared to the older PCI and AGP slots. The latest PCIe 4.0 slots offer even higher bandwidth, allowing for smooth gaming and graphics-intensive tasks.

When installing the graphics card, make sure to check the slot version compatibility. Most modern graphics cards use PCIe x16 slots for optimal performance. However, if your motherboard only has a PCIe x8 slot or lower, it can still work, but there may be a slight reduction in performance.

Additionally, pay attention to the physical dimensions of the slot. Make sure your graphics card physically fits the slot and does not block any neighboring slots or components.

In conclusion, when choosing a slot for your graphics card, opt for a PCIe slot, preferably PCIe 4.0 for the latest technology and maximum performance. Ensure compatibility with your motherboard and consider the physical dimensions for proper installation.

Frequently Asked Questions

Here are some common questions about finding the right slot for your graphics card:

1. How do I determine which slot is compatible with my graphics card?

To determine which slot is compatible with your graphics card, you need to check the specifications of both your graphics card and your motherboard. Most graphics cards these days use the PCIe (Peripheral Component Interconnect Express) standard, so you'll need a PCIe slot on your motherboard. Check the manual or manufacturer's website for your motherboard to find out which PCIe slots are available and their compatibility.

It's also important to consider the physical size of your graphics card and whether it will fit in the available slots. Some graphics cards are larger than traditional PCI slots, so make sure you have enough space in your computer case as well.

2. Can I use a PCI slot for my graphics card?

While older graphics cards used to be compatible with PCI (Peripheral Component Interconnect) slots, most modern graphics cards require a PCIe slot for optimal performance. If your motherboard only has PCI slots and no PCIe slots, you may be able to use a PCI graphics card, but keep in mind that the performance will be significantly lower compared to a PCIe graphics card. It's best to check the specifications of your graphics card and motherboard to ensure compatibility.

3. What if my graphics card requires dual-slot cooling?

If your graphics card requires dual-slot cooling, it means that it will occupy two expansion slots on your motherboard. This is commonly seen in high-performance graphics cards that generate more heat and require additional cooling mechanisms. Make sure you have enough available expansion slots on your motherboard to accommodate the dual-slot graphics card.

If you're unsure about the compatibility or have any concerns, it's always a good idea to consult the documentation or reach out to the manufacturer for guidance.

4. Are there any other considerations when choosing the slot for my graphics card?

Aside from compatibility and physical space, it's important to consider the power requirements of your graphics card. High-performance graphics cards can consume a significant amount of power, so you need to ensure that your power supply unit (PSU) has enough capacity to handle the graphics card.

Additionally, if you plan on using multiple graphics cards in SLI (Scalable Link Interface) or Crossfire configurations, you'll need to check if your motherboard supports these configurations and has enough PCIe slots to accommodate the cards.

5. Can I use a different slot than the one recommended for my graphics card?

It's generally recommended to use the slot specified by the graphics card manufacturer for optimal performance. Using a different slot may result in reduced performance or compatibility issues. However, if you have no other option and the alternative slot is compatible with your graphics card, you can try using it. Just keep in mind that the performance may be affected.

In conclusion, the choice of slot for a graphics card depends on several factors such as the motherboard compatibility, the graphics card model, and the available expansion slots. It is important to ensure that the graphics card is compatible with the slot type, whether it is PCIe x16, PCIe x8, or AGP.

If you are using a modern motherboard and graphics card, it is recommended to use the PCIe x16 slot, as it provides the highest bandwidth and performance. However, if you have an older system with an AGP slot, you will need to choose a graphics card that is specifically designed for AGP compatibility.
