What’s Inside A CPU

Have you ever wondered what lies beneath the sleek exterior of a CPU? The answer may surprise you. Within this tiny electronic powerhouse, there is a complex network of circuits and components meticulously designed to carry out the intricate tasks that drive our modern world.

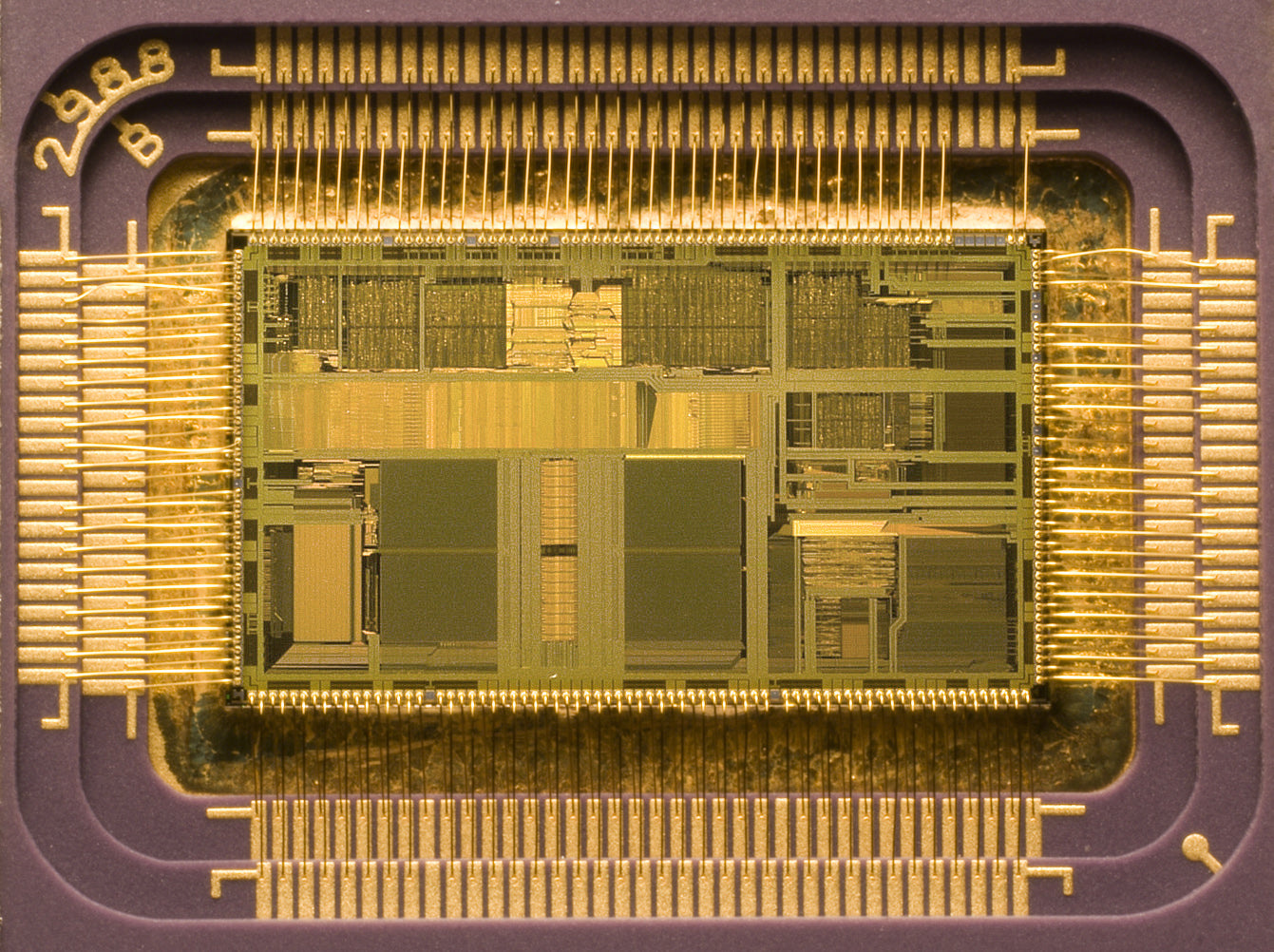

Deep inside a CPU, you will find a web of transistors and logic gates working tirelessly to process information at lightning speed. These microscopic wonders allow the CPU to execute billions of calculations per second, enabling us to perform tasks ranging from browsing the internet to running complex simulations.

What’s Inside A CPU

The Architecture of a CPU

A central processing unit (CPU) is the brain of a computer system. It is responsible for executing instructions, performing calculations, and coordinating the activities of all other hardware components. In order to carry out these tasks, a CPU is comprised of various complex components and subsystems. Understanding the architecture of a CPU provides insight into how it functions and enables us to appreciate the incredible capabilities of modern computing.

Control Unit (CU)

The control unit is a critical component of a CPU. It is responsible for coordinating and controlling all the other components of the CPU based on instructions received from memory. The control unit fetches instructions, decodes them, and determines the appropriate actions to be carried out by the CPU. It sends signals to the arithmetic logic unit (ALU) and other parts of the CPU to execute the required operations.

Internally, the control unit consists of a control register, control logic, and a clock generator. The control register stores control signals that determine the operation mode of the CPU. The control logic receives the decoded instructions from the instruction register and generates the necessary control signals to perform various tasks. The clock generator provides timing signals for synchronization and coordination of all CPU operations.

The control unit plays a crucial role in ensuring that instructions are executed in the correct sequence and that the CPU operates efficiently. It fetches instructions from memory, decodes them to determine the appropriate actions, and directs the ALU and other components to carry out the necessary operations. Without a properly functioning control unit, the CPU would not be able to perform its intended tasks.

Arithmetic Logic Unit (ALU)

The arithmetic logic unit (ALU) is another essential component of a CPU. It is responsible for carrying out arithmetic and logical operations, such as addition, subtraction, multiplication, division, and comparisons. The ALU operates on binary data and performs calculations based on the instructions received from the control unit.

The ALU consists of various functional units, including adders, logic gates, registers, and multiplexers. Adders perform addition operations, logic gates perform logical operations, registers temporarily store data, and multiplexers select the appropriate inputs for calculations. The ALU is designed to perform these operations quickly and accurately, enabling the CPU to execute complex calculations and make decisions in a matter of microseconds.

Modern CPUs often have multiple ALUs, allowing for parallel processing and increased performance. This parallelism enables the CPU to execute multiple instructions simultaneously and handle complex computational tasks more efficiently. The ALU is a fundamental building block of the CPU, driving its ability to perform calculations and process data.


Registers are temporary storage units within the CPU that hold data and instructions needed for immediate use. They are the fastest form of memory in a computer system and play a crucial role in the CPU's performance. Registers are used to store data during calculations, hold the results of operations, and store memory addresses.

The CPU contains various types of registers, including:

  • Program Counter (PC): Keeps track of the memory address of the next instruction to be executed.
  • Instruction Register (IR): Holds the current instruction being executed.
  • Data Register (DR): Stores data during input and output operations.
  • Memory Address Register (MAR): Holds the address of the memory location being accessed.
  • Memory Buffer Register (MBR): Temporarily stores data being transferred between the CPU and memory.
  • Status Register: Stores condition codes indicating the outcome of arithmetic and logical operations.
  • General-Purpose Registers: Used for storing and manipulating data during program execution.

Cache Memory

Cache memory is a small, high-speed memory located within the CPU. Its purpose is to store frequently accessed instructions and data, enabling the CPU to access them quickly. The primary benefit of cache memory is reducing the time it takes for the CPU to fetch instructions and data from the main memory, which is slower in comparison.

Cache memory operates on the principle of locality, which states that programs tend to access data and instructions that are close to each other in memory. There are different levels of cache memory, such as L1, L2, and L3, with each level providing a different degree of speed and capacity. The closer the cache memory is to the CPU, the faster the access times and the smaller the capacity.

Cache memory is an essential component of a modern CPU. It significantly improves the overall performance of the CPU by reducing the time spent waiting for data from the main memory. The cache memory enables the CPU to access frequently used instructions and data quickly, resulting in faster execution times and enhanced efficiency.


The microarchitecture of a CPU refers to its internal design and organization. It determines how the CPU's components and subsystems are interconnected and how data flows within the CPU. Microarchitecture plays a crucial role in the overall performance, power consumption, and efficiency of the CPU.

Microarchitecture encompasses various aspects, including:

  • Instruction Pipeline: Divides the instruction execution process into multiple stages to allow for parallel execution of instructions.
  • Superscalar Execution: Allows the CPU to execute multiple instructions simultaneously, taking advantage of parallelism.
  • Branch Prediction: Predicts the outcome of conditional branch instructions to minimize pipeline stalls and improve performance.
  • Out-of-Order Execution: Reorders instructions dynamically to maximize the utilization of execution units and reduce latency.
  • Cache Hierarchy: Defines the levels and types of cache memory, optimizing the access times and capacities.

Instruction Pipeline

The instruction pipeline is a technique used in modern CPUs to improve performance by dividing the instruction execution process into multiple stages. Each stage carries out a specific task, allowing for the parallel execution of instructions. The pipeline consists of stages such as instruction fetch, instruction decode, execute, memory access, and write back.

The instruction pipeline enables the CPU to work on multiple instructions simultaneously, resulting in increased throughput and faster execution times. However, the effectiveness of the pipeline depends on factors such as the length of the pipeline, the frequency of branch instructions, and the presence of data dependencies. Pipeline stalls can occur when dependencies or branch mispredictions disrupt the flow of instructions.

Overall, the instruction pipeline is a vital aspect of a CPU's microarchitecture. It allows for the efficient execution of instructions by utilizing parallelism and increasing the utilization of execution units.

Superscalar Execution

Superscalar execution is a technique used in modern CPUs to increase performance by allowing the simultaneous execution of multiple instructions. It takes advantage of instruction-level parallelism by identifying independent instructions and executing them simultaneously using multiple execution units.

Superscalar processors analyze the instruction stream and identify instructions that can be executed in parallel without dependencies. They then dispatch these instructions to multiple execution units, enabling concurrent execution. This technique improves the CPU's efficiency by increasing the number of instructions processed per clock cycle.

To support superscalar execution, the CPU must have sufficient execution units and register banks to handle the increased instruction throughput. It also requires sophisticated scheduling and dependency analysis mechanisms to ensure instructions are executed in the correct order and results are properly synchronized.

Branch Prediction

Branch prediction is a technique used in CPUs to minimize pipeline stalls caused by conditional branch instructions. These instructions can introduce a delay in the pipeline, as the CPU must fetch the target instruction and determine whether to execute it or continue with the next sequential instruction.

Branch prediction predicts the outcome of branch instructions based on historical information and patterns. The CPU makes an educated guess about whether a branch will be taken or not, allowing it to speculatively fetch and execute instructions along the predicted branch path. If the prediction is correct, the CPU avoids pipeline stalls and continues executing without delay. However, if the prediction is incorrect, the speculatively executed instructions are discarded, and the correct branch path is taken.

Branch prediction mechanisms vary in complexity and effectiveness, ranging from simple static prediction to more advanced dynamic prediction algorithms. Advanced processors utilize sophisticated branch prediction mechanisms to minimize the impact of branches on the CPU's performance.

Memory Hierarchy

The memory hierarchy of a CPU refers to the organization and arrangement of different types of memory used in a computer system. It consists of several levels, with each level providing different access times, capacities, and costs. The memory hierarchy aims to optimize the performance and cost-effectiveness of memory operations.

The memory hierarchy typically includes:

  • Registers: Fastest form of memory located within the CPU.
  • Cache Memory: Small, high-speed memory that stores frequently accessed instructions and data.
  • Main Memory (RAM): Slower but larger capacity memory used for storing program instructions and data.
  • Secondary Storage (Hard Disk Drives, Solid-State Drives): Large capacity storage for long-term data storage.

The memory hierarchy ensures that frequently accessed data and instructions are stored in faster and more expensive memory levels, while less frequently accessed data is stored in larger but slower memory levels. This structure allows for faster access times for frequently used data, improving overall system performance.

Cache memory, as mentioned earlier, plays a critical role in the memory hierarchy by storing frequently accessed instructions and data close to the CPU, thereby reducing the time spent waiting for data from main memory. The combination of multiple levels of cache memory and main memory achieves a balance between speed and capacity in the memory hierarchy.

In conclusion, the architecture of a CPU encompasses components such as the control unit, ALU, registers, cache memory, and microarchitecture. Each component plays a crucial role in the CPU's functionality and overall performance. The control unit coordinates and controls the CPU's operation, the ALU performs arithmetic and logical operations, registers provide temporary storage, cache memory accelerates data access, and microarchitecture optimizes instruction execution and performance. Understanding the inner workings of a CPU helps us appreciate the complexity and power of modern computing systems.

What’s Inside A CPU

Components Inside a CPU

In a Central Processing Unit (CPU), there are several key components that work together to perform the complex calculations and tasks necessary for a computer to function. These components include:

  • Arithmetic Logic Unit (ALU): The ALU is responsible for executing arithmetic and logical operations, such as addition, subtraction, and comparison.
  • Control Unit (CU): The CU directs and coordinates the activities of all the other components within the CPU. It fetches instructions from memory, decodes them, and manages the flow of data between the different parts of the CPU.
  • Registers: These are small units of fast storage used for temporary data storage and processing within the CPU.
  • Cache: CPU cache is a small amount of high-speed memory that stores frequently used data and instructions for faster access.
  • Bus: The bus connects all the components of the CPU, allowing them to communicate with each other and transfer data.

These components, working together, allow the CPU to perform the millions of calculations per second that power modern computing devices.

Key Takeaways: What’s Inside a CPU

  • A CPU (Central Processing Unit) is the brain of a computer.
  • Inside a CPU, there are several components, including the arithmetic logic unit (ALU) and the control unit (CU).
  • The ALU performs mathematical and logical operations, while the CU manages the execution of instructions.
  • The CPU also contains registers, which store data and instructions that the CPU needs to access quickly.
  • Cache memory is another important component of the CPU, which stores frequently accessed data for faster processing.

Frequently Asked Questions

Curious to know what's inside a CPU? Here are some frequently asked questions about the components and workings of a CPU.

1. What is the role of the Central Processing Unit (CPU) in a computer?

The CPU is the brain of a computer and plays a crucial role in executing and processing instructions. It carries out basic arithmetic, logical, control, and input/output (I/O) operations, enabling the computer to perform tasks efficiently and effectively.

The CPU consists of several key components, including the Control Unit (CU), Arithmetic Logic Unit (ALU), and Registers. These components work together to fetch, decode, and execute instructions, perform calculations, and store temporary data.

2. What are the main components inside a CPU?

Inside a CPU, you will find several essential components:

a. Control Unit (CU): This component is responsible for fetching instructions from memory, decoding them, and coordinating the activities of other CPU components.

b. Arithmetic Logic Unit (ALU): The ALU performs arithmetic operations (such as addition and subtraction) and logical operations (such as comparisons and bitwise operations).

c. Registers: These are small, high-speed storage units within the CPU that hold data and instructions needed for immediate processing. Registers store temporary values, operands, and memory addresses.

d. Cache: The CPU cache is a type of high-speed memory that stores frequently accessed data. It helps to reduce the time required to access data from the main memory, improving overall performance.

3. How does a CPU execute instructions?

When a computer program is run, the CPU executes instructions in a sequential manner. Here's a simplified explanation of the execution process:

a. Fetch: The Control Unit fetches the next instruction from memory.

b. Decode: The Control Unit decodes the instruction, determining the specific operation to be performed.

c. Execute: The control unit directs the ALU to perform the required operation, such as an arithmetic calculation or a memory access.

d. Repeat: The CPU repeats this fetch-decode-execute cycle to carry out the entire program's instructions.

4. What is the clock speed of a CPU?

The clock speed of a CPU refers to the number of operations it can perform in one second. It is measured in gigahertz (GHz). A higher clock speed indicates that the CPU can execute instructions more quickly, leading to faster processing times.

However, clock speed is not the sole determinant of a CPU's performance. Other factors, such as the number of cores, cache size, and architecture, also contribute to a CPU's overall capabilities.

5. Can the components inside a CPU be upgraded or replaced?

Generally, the components inside a CPU, such as the Control Unit, ALU, and cache, cannot be upgraded or replaced individually. These components are integrated into the CPU chip and cannot be easily modified or replaced.

However, it is possible to upgrade the CPU itself by replacing it with a newer and more powerful model compatible with the computer's motherboard. Upgrading the CPU often requires additional hardware and expertise.

To sum up, a CPU, or Central Processing Unit, is the brain of a computer. It contains many important components that work together to process and execute instructions. The main parts of a CPU include the ALU, control unit, registers, cache memory, and clock.

The ALU performs mathematical and logical operations, while the control unit coordinates the flow of data and instructions. Registers are small, fast memory units that store data for immediate access. Cache memory acts as a temporary storage area for frequently used data. And the clock ensures that all operations occur at the correct time.
