Swapping Out Motherboard And CPU

Swapping out a motherboard and CPU can be a daunting task for many, requiring precision and technical know-how. However, the rewards of upgrading these vital components can be well worth the effort. With advancements in technology and the constant demand for improved performance, staying up to date with the latest motherboard and CPU can have a significant impact on the speed and capabilities of your computer.

When it comes to swapping out the motherboard and CPU, it's essential to consider compatibility and functionality. Motherboards and CPUs have evolved over the years, with various socket types, chipsets, and power requirements. Therefore, it's crucial to research and select components that are compatible with each other and match your system's needs. By upgrading to a new motherboard and CPU, you can experience faster processing speeds, improved multitasking capabilities, and better support for advanced features like overclocking and high-end graphics cards.

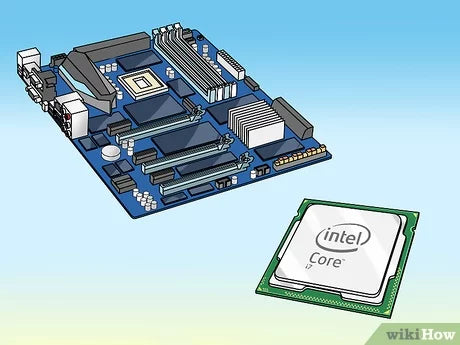

Understanding the Process of Swapping Out Motherboard and CPU

Swapping out the motherboard and CPU is a common practice when upgrading or repairing a computer. The motherboard serves as the central hub for all hardware components, while the CPU is responsible for executing instructions and performing calculations. This article will guide you through the process of swapping out the motherboard and CPU, providing expert-level information and tips to ensure a successful upgrade or repair.

1. Preparing for the Upgrade

Before starting the process of swapping out the motherboard and CPU, it is crucial to prepare adequately to ensure a smooth and successful upgrade. Here are a few essential steps to follow:

• Back up your data: It is essential to create a backup of all your important files and documents before proceeding with the upgrade. This will protect your data in case of any unforeseen issues during the process.
• Gather the necessary tools: You will need a Phillips screwdriver, thermal paste, and an anti-static wrist strap to prevent any damage from static electricity.
• Research compatibility: Ensure that the new motherboard and CPU are compatible with your existing computer components. Check the manufacturer's specifications and compatibility guides to avoid any compatibility issues.
• Update drivers and BIOS: Before swapping out the hardware, it is recommended to update your drivers and BIOS to the latest versions. This will ensure optimal compatibility and performance.

1.1 Backing Up Your Data

Backing up your data is a critical step before swapping out the motherboard and CPU. This ensures that your important files, documents, and settings are safely stored and can be easily restored if any issues arise during the upgrade process. Here's how to back up your data:

• Use an external storage device: Connect an external hard drive or USB flash drive to your computer and copy your important files and folders to the external device.
• Use cloud storage: Upload your files and documents to a cloud storage service, such as Google Drive or Dropbox. This ensures that your data is securely stored and accessible from any device with an internet connection.
• Create a system image: Use built-in backup software or third-party tools to create a system image of your entire computer. This captures the operating system, installed programs, and settings, allowing for a complete restoration if needed.

1.2 Gathering the Necessary Tools

To successfully swap out the motherboard and CPU, you will need a few essential tools. These include:

• Phillips screwdriver: Most computer cases use Phillips screws to secure the motherboard and other components.
• Thermal paste: Necessary for the proper transfer of heat between the CPU and the cooler. If you are using the stock cooler, thermal paste may already be pre-applied.
• Anti-static wrist strap: Protects your computer components from static electricity by grounding you while working.

1.3 Researching Compatibility

Compatibility is crucial when swapping out the motherboard and CPU. Here are a few key factors to consider:

• Socket type: Ensure that the new CPU is compatible with the socket on the motherboard. Different CPUs use different socket types, such as Intel's LGA or AMD's AM4.
• Memory compatibility: Check whether the new motherboard supports your existing RAM modules. Pay attention to the memory type (DDR4, DDR3, etc.), speed, and capacity.
• Expansion slots: Determine if the new motherboard has the necessary expansion slots for your graphics card, sound card, and other devices.
• Power supply compatibility: Make sure that the power supply unit (PSU) can provide sufficient power for the new motherboard and CPU. Check the PSU's wattage and connectors.

1.4 Updating Drivers and BIOS

Before swapping out the motherboard and CPU, it is recommended to update your drivers and BIOS to the latest versions. This ensures optimal compatibility and performance. Follow these steps:

• Visit the motherboard manufacturer's website and locate the support or downloads section.
• Search for the latest drivers for your specific motherboard model and download them.
• Follow the manufacturer's instructions to update the drivers and BIOS. This may involve running an executable file or creating a bootable USB drive.

2. Swapping Out the Motherboard and CPU

Once you have prepared for the upgrade, it's time to swap out the motherboard and CPU. Follow these steps carefully:

• Turn off and unplug your computer from the power source.
• Open the computer case by removing the screws or latches on the side panel.
• Discharge static electricity by wearing an anti-static wrist strap and touching a metal part of the case.
• Disconnect all cables and connectors from the motherboard, including the power supply cables, data cables, and front panel connectors.
• Remove the CPU cooler by unlatching the retention mechanism or removing the screws.
• Remove the RAM modules by pressing down on the retention clips and sliding the modules out of their slots.
• Unscrew the motherboard from the case using a Phillips screwdriver.
• Carefully lift the motherboard out of the case and place it on an anti-static surface.

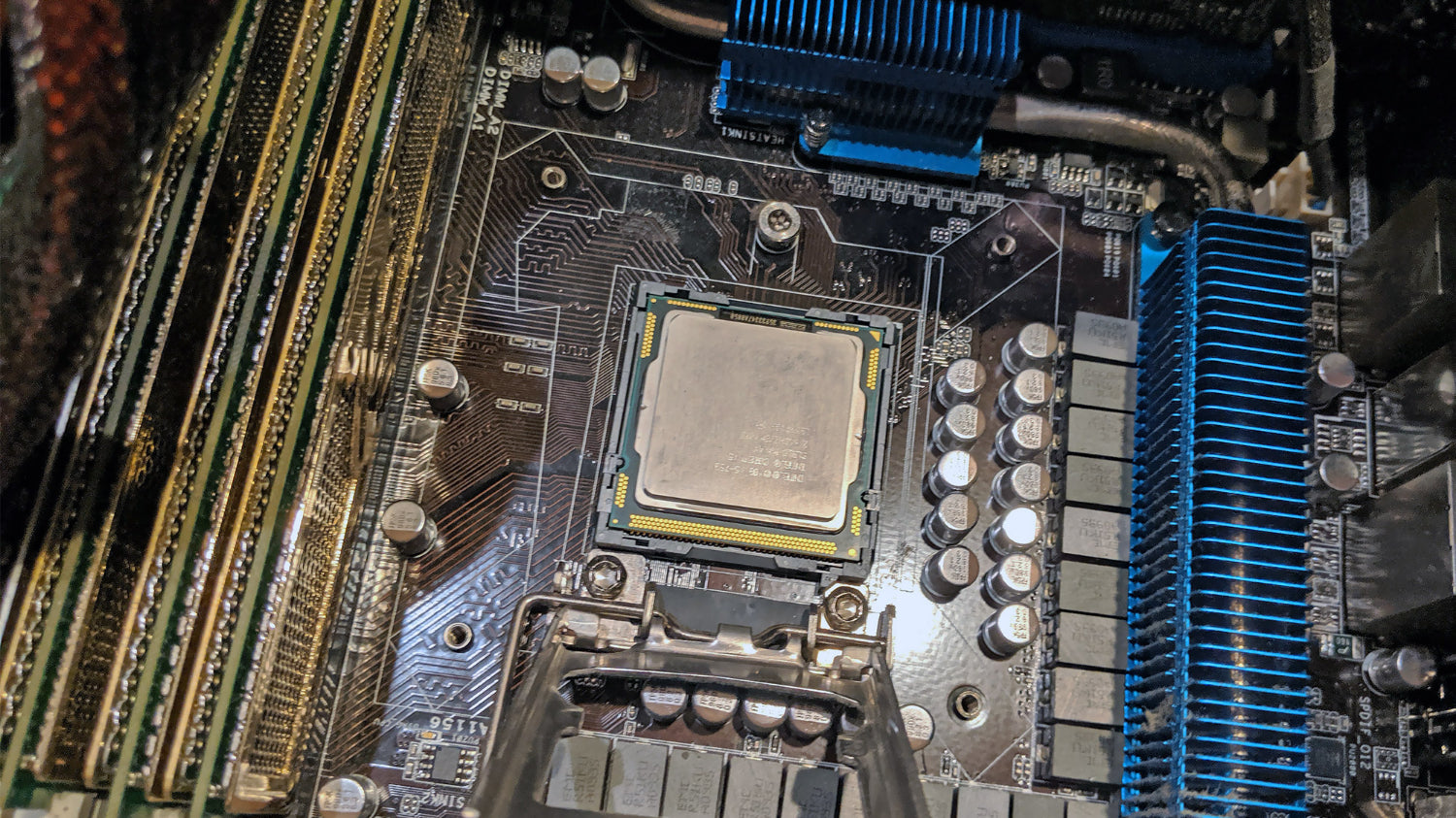

• Remove the CPU from the socket by unlatching the retention mechanism and lifting it out gently.
• Place the new motherboard into the case, aligning it with the standoffs.
• Insert the new CPU into the socket, ensuring proper alignment with the arrow indicators.
• Apply a small amount of thermal paste onto the center of the CPU.
• Attach the CPU cooler by aligning it with the mounting brackets or screw holes and securing it in place.
• Insert the RAM modules into their respective slots, ensuring proper alignment and applying gentle pressure until they click into place.
• Connect all necessary cables and connectors to the motherboard, including power supply cables, data cables, and front panel connectors.
• Double-check all connections and ensure everything is securely in place.
• Close the computer case and screw or latch the side panel back into place.
• Plug in your computer and turn it on. Check if everything is functioning correctly.

3. Troubleshooting and Tips

Despite careful preparation and execution, issues may arise during or after swapping out the motherboard and CPU. Here are a few troubleshooting steps and tips to help you overcome common obstacles:

• Check all cable connections: Make sure all cables and connectors are securely attached to the motherboard. Loose connections can cause various issues, including no display or incorrect booting.
• Clear CMOS: If your computer fails to boot or displays error messages, clearing the CMOS (Complementary Metal-Oxide-Semiconductor) can help. Consult the motherboard manual for instructions on how to reset the CMOS.
• Update drivers and BIOS: After swapping out the motherboard and CPU, it is crucial to update the drivers and BIOS to the latest versions to ensure optimal compatibility and performance. Visit the manufacturer's website for the latest updates.
• Test hardware components: If you are experiencing issues after the upgrade, test each hardware component individually to identify any faulty components. This includes the RAM, graphics card, and storage devices.
• Seek professional help if necessary: If you encounter significant difficulties or lack confidence in your technical skills, it is advisable to seek professional assistance to avoid further damage to your computer.

Exploring the Compatibility Between Motherboard and CPU

The compatibility between the motherboard and CPU is a crucial factor to consider when building or upgrading a computer. The motherboard serves as the foundation for all hardware components and provides the necessary connections and interfaces for smooth operation. The CPU, on the other hand, is responsible for executing instructions and performing calculations.

1. Understanding Socket Types

When it comes to compatibility between the motherboard and CPU, the socket type plays a significant role. The socket is the physical interface on the motherboard where the CPU is installed. Different CPUs and motherboards use different socket types. The two main players in the CPU market, Intel and AMD, have their own socket types.

Socket Type	Manufacturer
LGA1151	Intel
LGA1200	Intel
AM4	AMD
TR4	AMD

Prior to purchasing a motherboard and CPU, it is essential to ensure that the socket types match. For example, an LGA1151 CPU will only work on a motherboard with an LGA1151 socket. Mixing incompatible socket types will result in the CPU not fitting physically or electrically, rendering the components unusable together.

1.1 Intel Socket Types

Intel CPUs use various socket types, with each generation often introducing a new socket. Below are some commonly used socket types for Intel processors:

Socket Type	Example CPUs
LGA1151	8th and 9th Generation Intel Core i3/i5/i7/i9
LGA1200	10th and 11th Generation Intel Core i3/i5/i7/i9

It is essential to match the socket type of the CPU with the compatible motherboard. For example, an LGA1151 CPU will only fit into an LGA1151 socket on the motherboard.

1.2 AMD Socket Types

AMD CPUs also use various socket types, and like Intel, each generation tends to introduce a new socket. Below are some commonly used socket types for AMD processors:

Swapping Out Motherboard and CPU

Swapping out the motherboard and CPU in a computer is a complex task that requires careful planning and attention to detail. It is often done to upgrade the performance of a system or to replace faulty components. This process involves removing the old motherboard and CPU, installing the new ones, and ensuring compatibility with other hardware components.

Before starting the swap, it is important to research and choose compatible components that meet your system requirements. The motherboard and CPU must have the same socket type and support the desired features. Additionally, it is essential to update the system's BIOS and drivers before proceeding with the swap.

During the swap, proper grounding techniques should be followed to prevent static electricity damage. It is recommended to consult the motherboard and CPU manuals for specific instructions on installation and configuration. After completing the swap, the computer must be tested to ensure proper functionality and stability.

Swapping out the motherboard and CPU can be a time-consuming and challenging task, but with careful planning and the right tools, it can be successfully accomplished, resulting in improved performance and functionality.

Frequently Asked Questions

In this section, we will answer some of the most common questions related to swapping out a motherboard and CPU. If you are considering upgrading your computer's hardware, these answers will provide you with valuable information to make an informed decision.

1. What is the process of swapping out a motherboard and CPU?

Swapping out a motherboard and CPU involves several steps:

1. Prepare your workspace and gather the necessary tools, such as screwdrivers and thermal paste.

2. Disconnect all cables and peripherals connected to the motherboard.

3. Uninstall the old motherboard by removing screws and disconnecting cables.

4. Place the new motherboard in the case and secure it with screws.

5. Install the CPU onto the motherboard, making sure to align the pins correctly.

6. Apply a thin layer of thermal paste on the CPU.

7. Attach the CPU cooler and connect it to the appropriate header on the motherboard.

8. Connect all cables and peripherals to the new motherboard.

9. Power on your computer and follow the on-screen instructions to install or update necessary drivers.

Remember to consult your motherboard and CPU manuals for specific instructions, as the process may vary slightly depending on the models.

2. Can I reuse my old RAM when swapping out the motherboard and CPU?

In most cases, you can reuse your old RAM when swapping out the motherboard and CPU. However, it is essential to check compatibility between your existing RAM and the new motherboard.

Make sure the motherboard supports the same type and speed of RAM as your existing modules. Additionally, check the maximum memory capacity and number of RAM slots on the new motherboard to ensure it can accommodate your desired configuration.

3. Do I need to reinstall the operating system after replacing the motherboard and CPU?

In most cases, it is recommended to reinstall the operating system after replacing the motherboard and CPU. Swapping out these hardware components can result in changes to the system configuration, and a fresh installation ensures optimal performance and stability.

Before reinstalling the operating system, make sure to back up your important files and data. Once the installation is complete, you will need to reactivate your operating system and reinstall any necessary drivers and software.

4. What precautions should I take before swapping out the motherboard and CPU?

Before swapping out the motherboard and CPU, consider the following precautions:

- Backup your important files and data to avoid any potential loss during the hardware replacement process.

- Take note of your current hardware configuration, including the model numbers of your current motherboard, CPU, RAM, and other components.

- Research and ensure compatibility between the new motherboard and CPU with your other components, such as the graphics card and power supply.

- Ground yourself by touching a grounded metal object or wearing an anti-static wrist strap to prevent static electricity from damaging the sensitive electronic components.

Following these precautions will help minimize the risk of damage to your hardware and ensure a smooth swapping process.

5. Can I upgrade the motherboard and CPU without reinstalling programs and games?

In most cases, it is necessary to reinstall programs and games after upgrading the motherboard and CPU. Swapping out these hardware components can result in changes to the system configuration, and some programs may require reinstallation for proper functionality.

To avoid data loss, it is recommended to back up your important files before proceeding with the hardware upgrade. After completing the upgrade, you can reinstall your programs and games using their original installation files or restore them from a backup.

To sum up, swapping out the motherboard and CPU can be a daunting task but can greatly enhance the performance of your computer. Before you begin, it is crucial to make sure that the new motherboard and CPU are compatible with your existing components and that you have the necessary tools and knowledge to safely carry out the installation process. Additionally, be sure to back up your data, as there is a potential risk of data loss during the swap.

When performing the swap, remember to take your time and carefully follow the manufacturer's instructions. Disconnect all power sources and ground yourself to prevent any electrical damage. Take note of the cables and connectors, documenting their location and orientation to ease reassembly. Once the swap is complete, double-check all connections and power on the system to ensure everything is functioning correctly. With careful planning and execution, you can successfully upgrade and enjoy the improved performance of your computer with the new motherboard and CPU.

Socket Type	Example CPUs
AM4	AMD Ryzen 1000, 2000, 3000, 5000 Series
