Pipelining Improves CPU Performance Due To

Pipelining is a powerful technique that greatly enhances the performance of CPUs. By breaking down complex tasks into smaller, more manageable stages, pipelining allows for simultaneous execution of instructions, resulting in improved overall efficiency. This innovative approach to CPU design has revolutionized the way processors handle computational tasks in a variety of industries, from gaming to scientific research.

Through pipelining, CPUs can achieve higher clock speeds and faster processing times. By dividing instructions into stages such as fetch, decode, execute, and writeback, each stage can be worked on simultaneously, leading to significant time savings. With this technique, the CPU can start executing a new instruction before the previous one is completed, effectively overlapping the various stages of instruction execution. This parallelism drives greater throughput and enhances overall system performance.

Introduction to Pipelining and CPU Performance Improvement

Pipelining is a fundamental technique used in computer architecture to improve the performance of central processing units (CPUs). By breaking down the execution of instructions into multiple stages and allowing them to overlap, pipelining reduces the overall latency and increases the throughput of the CPU. This article will delve into the various aspects of how pipelining improves CPU performance and the underlying mechanisms that contribute to this enhancement.

1. Instruction-Level Parallelism

One of the key benefits of pipelining is its ability to exploit instruction-level parallelism (ILP). In traditional non-pipelined CPUs, each instruction must complete its execution before the next one can start. However, pipelining allows multiple instructions to be in different stages of execution simultaneously, thereby increasing the overall throughput.

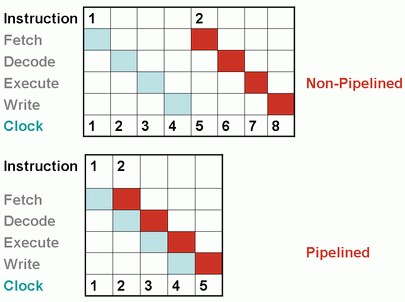

This parallelism is achieved by dividing the instruction execution into multiple stages, such as fetch, decode, execute, and writeback. Each stage operates on a different instruction, and multiple instructions can be active in different stages at the same time. This enables the CPU to make better use of its resources and improves overall performance.

By overlapping the execution of instructions, pipelining ensures that while one instruction is in the execute stage, the next instruction can already be in the decode stage, and the following instruction can be in the fetch stage. This overlap greatly reduces idle time and maximizes the utilization of the CPU, leading to a significant improvement in performance.

Additionally, pipelining allows the CPU to handle branches more efficiently. Branch instructions typically introduce a delay as the CPU needs to determine whether to take the branch or not. However, by using branch prediction techniques and speculative execution, pipelining can reduce the impact of branching on performance by predicting the branch outcome and speculatively executing instructions from the predicted path.

1.1 Hazards and Their Handling

Pipelining introduces various hazards that can affect the correct execution of instructions. These hazards include structural hazards, data hazards, and control hazards. Structural hazards occur when multiple instructions need the same resource simultaneously, such as a register or an execution unit. Data hazards arise when instructions depend on the results of previous instructions, leading to a potential data conflict. Control hazards occur due to conditional branch instructions that can change the program flow.

To handle these hazards, pipelining incorporates various techniques. For example, forwarding or bypassing allows the CPU to forward the result of an instruction directly to subsequent instructions that require it, avoiding the need to wait for the result to be written back to a register. Branch prediction techniques, such as branch target prediction and speculative execution, help mitigate the impact of control hazards by providing timely instructions to keep the pipeline filled.

Overall, the handling of hazards in pipelining is essential to ensure correct execution and maintain performance gains. Through careful design and the implementation of hazard detection and mitigation mechanisms, pipelined CPUs can effectively address these issues and improve performance.

1.2 Instruction Fetch and Decode Stages

The first stages of a pipelined CPU are instruction fetch and decode. During the instruction fetch stage, the CPU fetches the next instruction from memory and prepares it for execution. The instruction decode stage decodes the fetched instruction to determine its type and the operations it needs to perform.

The instruction fetch stage benefits from pipelining as it allows the CPU to fetch multiple instructions in advance while the execution of previous instructions is ongoing. By fetching instructions from memory in a single cycle, pipelining improves the overall throughput and reduces the memory access time per instruction.

The instruction decode stage also gains advantages from pipelining. With multiple instructions in the pipeline, the CPU can decode subsequent instructions while the previous ones are being executed. This reduces the idle time between instructions and increases the overall efficiency of the CPU.

Pipelining at the instruction fetch and decode stages contributes significantly to improving CPU performance by reducing the latency associated with memory accesses and eliminating idle cycles within the CPU pipeline.

2. Resource Utilization and Dependency Handling

Pipelining greatly improves resource utilization by allowing different stages of the pipeline to operate concurrently. With multiple instructions in flight simultaneously, the CPU can make better use of its functional units, such as arithmetic logic units (ALUs) and floating-point units.

This concurrency also helps in handling dependencies between instructions. Dependencies occur when an instruction depends on the result of a previous instruction. By allowing instructions to overlap in different stages of the pipeline, pipelining can resolve data dependencies by forwarding the required data from the earlier instruction to the dependent instruction without stalling the pipeline.

For example, if a multiplication instruction follows an addition instruction that computes the operands for the multiplication, the result of the addition can be forwarded directly to the multiplication instruction, avoiding the need to wait for the addition result to be written back to a register. This forwarding mechanism eliminates data hazards and enables the CPU to execute instructions more efficiently.

Pipelining also helps in overlapping the execution of instructions from different threads or processes, taking advantage of thread-level parallelism or instruction-level parallelism across multiple programs. By interleaving the execution of instructions from different threads or programs, pipelining improves overall CPU utilization and enables better multitasking performance.

2.1 Latency and Throughput Improvement

The primary goal of pipelining is to reduce the latency associated with the execution of instructions. Latency refers to the total time taken to complete the execution of a single instruction. Pipelining achieves this by breaking down the instruction execution process into multiple stages, as mentioned earlier, and allowing them to operate concurrently.

Reducing the instruction latency enables the CPU to process instructions more quickly, resulting in improved performance. Moreover, pipelining increases the overall throughput of the CPU, which refers to the number of instructions completed per unit of time. By overlapping the execution of multiple instructions, pipelining effectively increases the CPU's capacity to process instructions.

The performance improvement achieved by pipelining can be quantified by comparing the speedup factor, which is the ratio of the execution time of a non-pipelined CPU to that of a pipelined CPU under certain workloads. The higher the speedup factor, the more significant the performance gain offered by pipelining.

3. Pipeline Hazards and Solutions

While pipelining offers numerous advantages, it also introduces certain challenges known as pipeline hazards. These hazards can negatively impact the CPU's performance and disrupt the smooth execution of instructions. Understanding and mitigating these hazards is crucial for ensuring the proper functioning of a pipelined CPU.

The three main types of pipeline hazards are:

• Data hazards: These occur when a dependency exists between instructions, such as when one instruction writes to a register that another instruction will later read.
• Structural hazards: These arise when multiple instructions require the same hardware resource simultaneously, leading to resource contention.
• Control hazards: These occur due to changes in the program flow caused by branches or other control transfer instructions.

3.1 Data Hazards

Data hazards are caused by dependencies between instructions that require data from a previous instruction. There are three types of data hazards:

• Read-after-write (RAW) hazards: These occur when an instruction reads data from a register that is yet to be written by a previous instruction. The pipeline must ensure that the value is available when needed.
• Write-after-read (WAR) hazards: These occur when a previously written value is needed for computation before a read operation by a subsequent instruction. The pipeline must ensure the correct order of operations.
• Write-after-write (WAW) hazards: These occur when multiple instructions attempt to write to the same register simultaneously. The pipeline must ensure that the writes occur in the correct order.

Pipelined CPUs use various techniques to handle data hazards, including:

• Forwarding or bypassing: This allows the result of an instruction in a pipeline stage to be forwarded directly to subsequent instructions that depend on it, bypassing the need for waiting for the result to be written back to a register.
• Stall or bubble: In some cases, the pipeline may need to wait for the data to become available, resulting in a stall or bubble in the pipeline. This introduces a delay but ensures correct execution.
• Compiler optimizations: Compilers can also assist in reducing data hazards by reordering instructions or inserting suitable instructions, such as NOPs (No-Operation), to prevent hazards from occurring.

3.2 Structural Hazards

Structural hazards occur when multiple instructions require the same hardware resource simultaneously, resulting in resource contention. Some common structural hazards include:

• Resource conflicts: For example, multiple instructions requiring the same execution unit or functional unit at the same time can cause conflicts. The pipeline must ensure proper scheduling and allocation of resources.
• Memory conflicts: When multiple instructions require simultaneous memory access, such as accessing the same cache line or memory location, conflicts can arise. Techniques like cache organization or memory banking can alleviate these conflicts.

To handle structural hazards, pipelining employs techniques such as resource duplication, resource scheduling, data forwarding, and increasing the capacity of shared resources to avoid contention. By effectively managing resource allocation and access, structural hazards can be mitigated, thus improving the performance of pipelined CPUs.

4. Branch Prediction and Control Hazards

Control hazards arise due to changes in the program flow caused by branches or other control transfer instructions. These hazards can negatively impact the pipeline by introducing branching delays or incorrect predictions, leading to pipeline stalls or speculative execution of wrong instructions.

To mitigate control hazards, pipelined CPUs incorporate branch prediction mechanisms, which aim to predict the outcome of branch instructions and fetch the instructions based on the predicted path. The two main types of branch prediction techniques are:

• Static branch prediction: This method predicts the outcome of a branch instruction based on static information, such as the branch history or the target address. Static branch prediction can be accurate for certain types of branches, such as loops, but may not perform well for irregular or runtime-dependent branches.
• Dynamic branch prediction: This technique uses run-time information and historical data to make predictions. Dynamic branch prediction mechanisms include branch target buffers (BTBs), branch history tables (BHTs), and two-level branch predictors, among others.

By accurately predicting branch outcomes, pipelined CPUs can minimize branch-related stalls and maintain a steady flow of instructions in the pipeline. This improves overall performance by reducing the impact of control hazards and optimizing the execution of branch instructions.

Improved CPU Performance Through Pipelining

Another aspect of how pipelining improves CPU performance relates to the reduction of latency and increase in overall throughput, as discussed earlier. By breaking down the execution of instructions into multiple stages and allowing them to overlap, pipelining effectively reduces the time taken to complete the execution of individual instructions, resulting in improved performance and faster execution.

The ability to exploit instruction-level parallelism and overlap the execution of multiple instructions enables pipelining to make better use of the CPU resources and increase the overall efficiency. The handling of hazards, such as data hazards, structural hazards, and control hazards, ensures that pipelining maintains correct execution while achieving performance gains.

Pipelining also enhances resource utilization by allowing different stages of the pipeline to operate concurrently, making optimum use of the CPU's functional units. It effectively resolves dependencies between instructions and enables the CPU to handle parallel execution and multitasking efficiently.

Overall, pipelining plays a crucial role in improving CPU performance by reducing latency, increasing throughput, and enhancing resource utilization. It has become a fundamental technique in modern computer architecture, driving the design of CPUs and contributing to the ever-increasing performance capabilities of computing systems.

Pipelining Improves CPU Performance Due To

Pipelining is a crucial technique in computer architecture that greatly improves the performance of CPUs. This technique allows multiple instructions to be executed at the same time, resulting in increased throughput and reduced latency.

One of the main reasons why pipelining improves CPU performance is its ability to overlap different stages of instruction execution. In a pipelined processor, the CPU is divided into smaller stages, such as instruction fetch, decode, execute, and writeback. Each stage can work on a different instruction simultaneously, enabling the CPU to process multiple instructions in parallel.

By overlapping the execution of multiple instructions, pipelining ensures that the CPU is utilized more efficiently. This reduces the amount of idle time wasted waiting for instructions to complete and allows the CPU to process instructions at a faster rate.

Pipelining also improves CPU performance by reducing the latency of individual instructions. As each instruction passes through the pipeline, it spends less time in each stage, resulting in faster overall execution.

Overall, pipelining is a key technique that enables CPUs to achieve higher performance by maximizing the use of available resources and reducing instruction execution time.

Frequently Asked Questions

Pipelining is a powerful technique used in computer processors to improve CPU performance. It allows for the simultaneous execution of multiple instructions, overlapping different stages of the instruction processing pipeline. This efficient method enables faster processing speeds and increased overall performance. Here are some frequently asked questions about how pipelining improves CPU performance.

1. How does pipelining improve CPU performance?

Pipelining improves CPU performance by breaking down the instruction execution into multiple stages and allowing them to overlap. Each stage performs a specific operation on an instruction, such as fetching the instruction from memory, decoding it, executing the operation, and storing the results. By breaking the execution into smaller stages and allowing multiple instructions to be processed simultaneously, pipelining reduces the time taken to complete each instruction and increases the overall throughput of the CPU. Furthermore, pipelining allows for better utilization of CPU resources. While one instruction is being executed, others can be fetched, decoded, and prepared for execution. This overlapping of instructions maximizes the usage of CPU resources and prevents any idle time, resulting in improved performance.

2. What are the stages involved in the instruction pipeline?

The instruction pipeline typically consists of several stages, including instruction fetch, instruction decode, execution, memory access, and write back. In the fetch stage, the CPU fetches the next instruction from memory. The decode stage decodes the instruction and determines the required operations. The execution stage performs the necessary computation or operation. The memory access stage accesses memory if required. Finally, the write back stage stores the results of the instruction. The instructions flow through these stages in a sequential manner. As one instruction moves from stage to stage, the next instruction can enter the pipeline, keeping the CPU busy with multiple instructions simultaneously. This overlap of operations leads to improved CPU performance.

3. What are the advantages of pipelining?

There are several advantages of pipelining in improving CPU performance. Firstly, it reduces the time taken to complete each instruction by dividing the execution into smaller stages and allowing them to progress simultaneously. This results in faster processing speeds. Secondly, pipelining improves the overall throughput of the CPU by enabling multiple instructions to be processed at the same time. This leads to better utilization of CPU resources and ensures that the CPU remains busy without any idle time. Lastly, pipelining allows for efficient instruction scheduling, which improves the overall efficiency and performance of the CPU. It enables the CPU to process instructions in an optimized and organized manner, enhancing its overall capabilities.

4. Are there any limitations or challenges associated with pipelining?

Although pipelining offers significant benefits, there are certain limitations and challenges associated with its implementation. One major challenge is the possibility of dependencies between instructions. Dependencies occur when an instruction depends on the result of a previous instruction, preventing their simultaneous execution. This can lead to stalls in the pipeline, reducing the performance improvements. Additionally, pipelining can also introduce overhead due to the need for additional hardware to support the pipeline structure. The increased complexity of the pipeline and the management of dependencies require careful design and implementation. Poorly designed pipelines can result in reduced performance or even pipeline hazards, where instructions cannot be executed as expected.

5. How does pipelining impact different types of applications?

Pipelining has a positive impact on a wide range of applications. It benefits applications that involve a large number of sequential operations by allowing instructions to be processed in parallel, reducing the overall execution time. Moreover, pipelining is particularly advantageous for applications that have a high instruction-level parallelism, where multiple independent instructions can execute simultaneously. Such applications include multimedia processing, scientific simulations, and data-intensive tasks. However, applications that have dependencies between instructions or require frequent branching can pose challenges for pipelining. Dependencies and branching can disrupt the smooth flow of instructions within the pipeline and result in reduced performance. In conclusion, pipelining greatly improves CPU performance by breaking down instruction execution into smaller stages and allowing for their simultaneous processing. It enhances the overall throughput of the CPU, maximizes resource utilization, and enables faster processing speeds. However, careful consideration of dependencies and efficient pipeline design is essential to fully harness the benefits of pipelining.

L7 3 pipeline performance

To summarize, pipelining greatly enhances the performance of a CPU by allowing it to execute multiple instructions simultaneously. By dividing the execution of instructions into distinct stages, pipelining enables the CPU to overlap the different steps of instruction execution, resulting in increased efficiency and faster processing speeds.

With pipelining, the CPU can start executing the next instruction before the previous one has completed, effectively reducing the overall processing time. This parallelism improves the overall throughput of the CPU and allows it to handle a larger number of instructions in a given amount of time, resulting in improved performance.
