My Graphics Card Has A 6 Pin And 8 Pin
When it comes to graphics cards, the presence of a 6-pin and 8-pin configuration is not uncommon. These connectors, often found on high-performance graphics cards, provide additional power to support the demanding processing requirements of modern graphics-intensive applications and games. But why does a graphics card need both a 6-pin and 8-pin connector? Let's delve into the details.
A graphics card with a 6-pin and 8-pin power connector offers increased power delivery capabilities, ensuring stable and reliable performance. The 6-pin connector typically supplies up to 75 watts of power, while the 8-pin connector can provide up to 150 watts, depending on the specific graphics card design. This additional power is necessary to meet the power demands of the GPU and other components, especially under heavy workloads or when overclocking the graphics card. With these connectors, users can unlock the full potential of their graphics card, experiencing smooth gameplay and exceptional visuals.
Graphics cards often require additional power beyond what the motherboard can provide. If your graphics card has both a 6-pin and 8-pin power connector, it indicates a higher power requirement. The 6-pin connector provides up to 75 watts, while the 8-pin connector can deliver up to 150 watts. This configuration ensures that your graphics card receives the necessary power for optimal performance and stability. Make sure to connect both the 6-pin and 8-pin connectors to the corresponding power supply cables to ensure proper power delivery.
Understanding the 6 Pin and 8 Pin Connectors on Graphics Cards
Graphics cards are an essential component in modern computers, especially for gamers and professionals who require high-performance visuals. When examining the power connectors on these graphics cards, you may notice that some models feature a combination of 6 pin and 8 pin connectors. These connectors are used to supply the necessary power to the graphics card for optimal performance. In this article, we will explore the reasons behind the inclusion of both 6 pin and 8 pin connectors and how they contribute to the overall functionality of the graphics card.
1. Power Requirements for Graphics Cards
Graphics cards are power-hungry components, demanding a significant amount of electricity to deliver the desired performance. The power requirements for a graphics card depend on various factors, including the model, architecture, clock speed, and the number of cores. To ensure the graphics card receives a stable power supply, manufacturers incorporate power connectors on the card itself.
These power connectors are connected to the power supply unit (PSU) of the computer, which delivers the necessary voltage and current to the graphics card. The connectors act as a communication channel between the PSU and the graphics card, allowing for the power delivery to be optimized and monitored.
The inclusion of both 6 pin and 8 pin power connectors is a result of the varying power requirements of different graphics card models. The connectors provide flexibility in terms of power delivery, allowing users to connect the graphics card to a power supply that meets the card's requirements.
2. The Difference between 6 Pin and 8 Pin Connectors
Both 6 pin and 8 pin connectors are used to deliver power to the graphics card, but the main difference lies in the amount of power they can provide. The pins in these connectors correspond to voltage rails, with each pin carrying a specific amount of current.

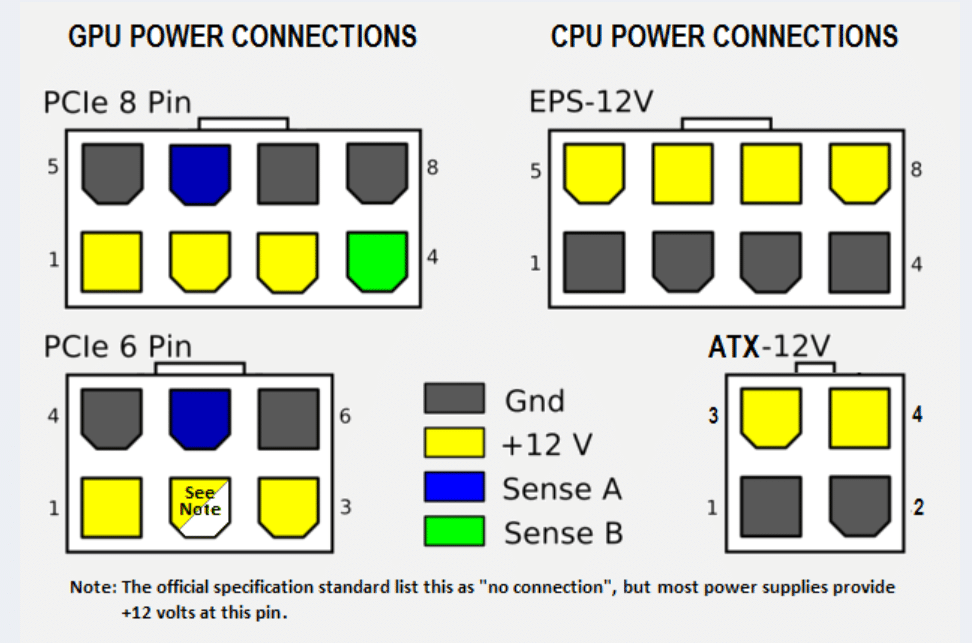

A 6 pin connector consists of three +12V pins and three ground pins, capable of delivering 75 watts of power. On the other hand, an 8 pin connector features four +12V pins and four ground pins, capable of delivering 150 watts of power. The additional pins in the 8 pin connector allow for a higher power delivery, making it suitable for graphics cards with higher power requirements.
The use of both connectors on a graphics card depends on the power demands of the specific model. While some lower-end or mid-range graphics cards may only require a single 6 pin connector, high-end graphics cards with more powerful GPUs may require a combination of 6 pin and 8 pin connectors to meet their energy requirements.
3. Connecting the Power Connectors
Connecting the power connectors on a graphics card is a straightforward process. Firstly, ensure that your power supply unit is capable of providing the necessary power and has the required connectors available. Most power supplies come with multiple 6 pin and 8 pin connectors to support a wide range of graphics cards.
If your graphics card requires both a 6 pin and 8 pin connector, you will need to connect both cables from the power supply unit to the respective connectors on the graphics card. The connectors are usually labeled, making it easy to identify the correct ports. Ensure that the connectors are securely inserted to prevent any power supply issues that may affect the graphics card's performance.
- Check your power supply unit for the required connectors.
- Connect the 6 pin and 8 pin cables from the power supply unit to the corresponding connectors on the graphics card.
- Ensure the connectors are securely inserted.
4. Power Supply Considerations
When connecting the power connectors to your graphics card, it is essential to ensure that your power supply unit can deliver enough power to meet the card's requirements. Insufficient power supply can lead to stability issues, performance degradation, and potential damage to the hardware.
Before installing a new graphics card, check the manufacturer's specifications and recommendations to determine the minimum power supply requirements. Additionally, consider the power demands of other components in your system, such as the CPU and storage devices, as they also draw power from the PSU.
Investing in a high-quality power supply unit with a higher wattage rating than the required minimum can ensure a stable power supply for your graphics card and other components. It is recommended to choose a power supply unit from reputable brands that are known for their reliability and performance.
5. Summary
The inclusion of 6 pin and 8 pin connectors on graphics cards allows for flexible power delivery, ensuring optimal performance based on the card's power requirements. These connectors enable users to connect their graphics cards to power supplies that can accommodate the necessary power demands. It is crucial to connect the power connectors correctly and ensure that the power supply unit can provide sufficient power to avoid performance issues and potential hardware damage. By understanding these connectors' purpose and properly connecting them, users can unleash the full potential of their graphics cards.
Understanding Graphics Card Power Connectors
Graphics cards require a stable power supply to function properly. The power connectors on a graphics card are essential for providing the necessary power. One common configuration is a 6-pin and 8-pin power connector.
The 6-pin and 8-pin power connectors serve different purposes. The 6-pin connector provides up to 75 watts of power, while the 8-pin connector delivers up to 150 watts. In some cases, both connectors may be required to power the graphics card adequately.
- Both connectors are connected to the power supply unit (PSU).
- Typically, high-performance graphics cards require both power connectors for optimum performance and stability.
- If your PSU does not have an available 8-pin connector, you can use a 6-pin to 8-pin adapter.
- It is important to check the power requirements of your graphics card and ensure that your PSU can provide sufficient power.
Key Takeaways: My Graphics Card Has a 6 Pin and 8 Pin
- A graphics card with a 6-pin and 8-pin power connector is designed to handle higher power requirements.
- The 6-pin and 8-pin connectors provide additional power to the graphics card for stable performance.
- Having both a 6-pin and 8-pin connector can indicate that the graphics card is high-end and requires more power.
- The 6-pin connector provides up to 75 watts of power, while the 8-pin connector provides up to 150 watts of power.
- Using both the 6-pin and 8-pin connectors ensures that the graphics card receives the necessary power for optimal performance and stability.
Frequently Asked Questions
Graphics cards often require additional power to function properly. Some graphics cards come with a 6-pin and 8-pin power connector. Here are some common questions and answers related to graphics cards with a 6-pin and 8-pin power requirement.
1. Can I use a 6-pin connector for an 8-pin graphics card?
It is not recommended to use a 6-pin connector for an 8-pin graphics card. The 6-pin connector provides a maximum power delivery of 75 watts, while the 8-pin connector can deliver up to 150 watts. Using a lower wattage connector may result in insufficient power supply, which can lead to performance issues or system instability. It is best to use the appropriate power connector as specified by the graphics card manufacturer.
If your power supply does not have an available 8-pin connector, you may need to consider upgrading your power supply to ensure proper power delivery to your graphics card.
2. Can I use an 8-pin connector for a 6-pin graphics card?
In most cases, it is not recommended to use an 8-pin connector for a 6-pin graphics card. The additional 2 pins in the 8-pin connector provide extra power delivery that may not be required by a 6-pin graphics card. Connecting an 8-pin connector to a 6-pin graphics card can potentially overload the card or cause damage.
It is crucial to use the appropriate power connector as specified by the graphics card manufacturer to ensure proper power supply and prevent any potential damage to your graphics card or system.
3. What if my power supply does not have a 6-pin or 8-pin connector?
If your power supply does not have a 6-pin or 8-pin connector, you may need to upgrade it to one that can provide the necessary power for your graphics card. Graphics cards with a 6-pin and/or 8-pin power requirement typically require a power supply with higher wattage.
It is important to check the power requirements of your graphics card and ensure that your power supply meets those requirements to avoid any compatibility or performance issues.
4. Can I use adapters to connect a 6-pin or 8-pin connector?
Using adapters to connect a 6-pin or 8-pin connector may be possible, but it is not recommended. Adapters can introduce additional points of failure and may not provide the necessary power delivery required by your graphics card.
It is always best to use the appropriate power connectors directly from your power supply to ensure stable and reliable power delivery to your graphics card.
5. How do I know if my graphics card requires a 6-pin and/or 8-pin connector?
You can check the power requirements of your graphics card by referring to the specifications provided by the graphics card manufacturer. The power requirements are usually mentioned in the product manual or on the manufacturer's website.
If you are unsure about the power requirements, it is recommended to consult with the manufacturer or seek assistance from a knowledgeable computer technician to ensure that you are using the correct power connectors for your graphics card.
In conclusion, having both a 6-pin and 8-pin power connector on your graphics card is beneficial because it provides sufficient power for high-performance GPUs. The 6-pin connector delivers up to 75 watts, while the 8-pin connector provides up to 150 watts. Together, they ensure that your graphics card receives the necessary power to function optimally.
Additionally, the combination of a 6-pin and 8-pin power connector allows compatibility with a wide range of power supply units. This versatility enables users to upgrade their graphics cards without worrying about power limitations, providing the flexibility to choose from various high-end GPUs that require different power inputs. By having both connectors, you can be confident that your graphics card is well-equipped to handle demanding tasks and deliver outstanding visual performance.
