How To Replace Intel CPU

Replacing an Intel CPU is a delicate process that requires professional expertise. Here's a step-by-step guide to help you through the process:

1. Begin by turning off the power and unplugging your computer.
2. Open the computer case and locate the CPU socket.
3. Gently remove the cooling solution and carefully unclip the CPU socket lever.
4. Hold the CPU by its edges and remove it from the socket.
5. Before installing the new CPU, clean the socket and apply thermal paste if necessary.
6. Align the CPU correctly and gently place it into the socket.
7. Secure the CPU by lowering the socket lever and reattach the cooling solution.
8. Close the computer case, plug in the power, and power on your computer.

Should you encounter any difficulties or have concerns about replacing your

Understanding the Basics of Replacing an Intel CPU

Replacing an Intel CPU may seem like a daunting task, but with the right knowledge and tools, it can be a straightforward process. Whether you're upgrading to a more powerful CPU or replacing a faulty one, this guide will take you through the essential steps to ensure a successful replacement. Understanding the basics of Intel CPU replacement is crucial to avoid any damage to your components and ensure optimal performance.

Step 1: Gather the Necessary Tools and Equipment

Before beginning the replacement process, make sure you have all the necessary tools and equipment at hand. This will save you time and ensure a smooth transition. Here are some essential items you'll need:

• Screwdriver set with various sizes and types
• Thermal paste
• Anti-static wristband
• CPU cooler (if not using the stock cooler)
• Isopropyl alcohol and lint-free cloth for cleaning
• Optional: thermal paste remover

Having these tools and equipment ready will help you perform the replacement process more efficiently and avoid any unnecessary delays.

Step 2: Prepare the Work Area

Before delving into the CPU replacement process, it's essential to prepare the work area properly. Follow these steps to ensure a clean and safe work environment:

• Turn off and unplug your computer from the power source.
• Find a spacious, well-lit, and static-free work surface.
• Gently ground yourself using an anti-static wristband to prevent any static discharge that could damage sensitive components.
• Organize the tools and equipment you gathered in step 1 for easy access during the replacement process.

By preparing the work area appropriately, you minimize the risk of damaging components and ensure a smooth replacement process.

Step 3: Remove the Old CPU

Before installing a new CPU, you must remove the old one correctly. Follow these steps:

• Remove the CPU cooler if it is attached to the old CPU. To do this, unscrew the cooler from the motherboard and detach it carefully.
• Gently release the CPU socket lever by pushing it down or to the side, depending on the motherboard model.
• Lift the CPU out of the socket using a gentle rocking motion. Be careful not to bend any CPU pins.
• Place the old CPU in an anti-static bag for safe storage or disposal, following appropriate electronic waste guidelines.

Properly removing the old CPU ensures a clean and secure installation of the new one, preventing any damage to the components.

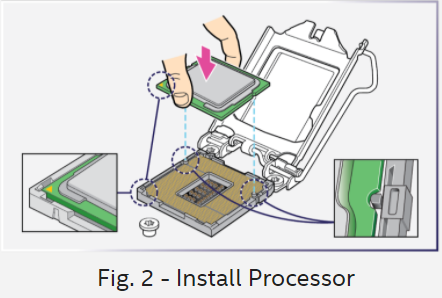

Step 4: Install the New CPU

Now that you have removed the old CPU, it's time to install the new one. Follow these steps:

• Carefully align the new CPU with the socket, ensuring that the notches or alignment markers match.
• Gently place the CPU into the socket, making sure it sits flat and level.
• Close the CPU socket lever, securing the CPU in place.

It's crucial to be cautious during this step and apply gentle pressure to avoid misalignment or damage to the CPU and socket.

Step 5: Apply Thermal Paste and Attach the CPU Cooler

To ensure proper heat dissipation and prevent your CPU from overheating, thermal paste is necessary. Here's how to apply it and attach the CPU cooler:

Note: If you're using the stock cooler that comes with your CPU, thermal paste may already be pre-applied. In this case, skip the thermal paste application step and proceed to attaching the CPU cooler.

• Take a small amount of thermal paste, approximately pea-sized, and apply it to the center of the CPU.
• Using a spreading tool or the CPU cooler itself, evenly spread the thermal paste in a thin, uniform layer.
• Secure the CPU cooler onto the CPU socket, aligning the mounting brackets or screws with the corresponding holes.
• Tighten the screws or fasteners in a diagonal pattern to ensure even pressure distribution and prevent any warping of the CPU cooler.

Proper application of thermal paste and secure attachment of the CPU cooler are essential for maintaining optimal CPU temperatures and preventing overheating.

Exploring Various Sockets and Compatibility

When replacing an Intel CPU, it's crucial to consider socket compatibility. Different Intel processors utilize various socket types, and using an incompatible CPU and socket combination can result in a non-functional system. Let's explore some common Intel CPU sockets and their compatibility:

Socket LGA 1151

The LGA 1151 socket is a popular choice for Intel CPUs, especially those in the 8th and 9th generation. It supports a wide range of consumer-grade CPUs and offers excellent performance for gaming and everyday tasks. However, it's crucial to note that although LGA 1151 sockets are physically similar, they are divided into two sub-categories: LGA 1151v1 and LGA 1151v2. These sub-categories are not interchangeable.

When replacing an Intel CPU on an LGA 1151 socket, ensure that you choose a compatible CPU according to the specific sub-category supported by your motherboard. Failure to do so may result in the CPU not functioning or not being detected by the system.

Socket LGA 1200

The LGA 1200 socket, introduced with Intel's 10th generation processors, offers improved power delivery, better overclocking support, and increased compatibility with high-speed memory. If you're upgrading to a 10th generation Intel CPU, make sure your motherboard supports the LGA 1200 socket. Older sockets, such as LGA 1151, are not compatible with 10th generation processors.

Socket LGA 2066

The LGA 2066 socket is designed for high-end desktop platforms and is commonly used in Intel Core X-Series processors. It offers support for multiple cores, improved memory capacity, and robust overclocking capabilities. If you're considering replacing an Intel CPU with an LGA 2066 socket, ensure that your motherboard also supports this socket type to avoid any compatibility issues.

Socket LGA 3647

The LGA 3647 socket is exclusive to Intel's Xeon processors and is primarily used in server-grade systems. These processors are designed for heavy workloads, demanding applications, and multi-socket configurations. If you're replacing an Intel CPU with an LGA 3647 socket, ensure that your motherboard supports this socket type and is compatible with Xeon processors.

Understanding the various Intel CPU sockets and their compatibility is crucial to ensure a successful replacement and avoid any compatibility issues that may arise.

Safeguarding Your Components and Performing Post-Replacement Steps

Replacing an Intel CPU involves more than just the physical installation of the new processor. It also requires safeguarding your components and conducting post-replacement steps to ensure everything is functioning correctly. Here's what you need to do:

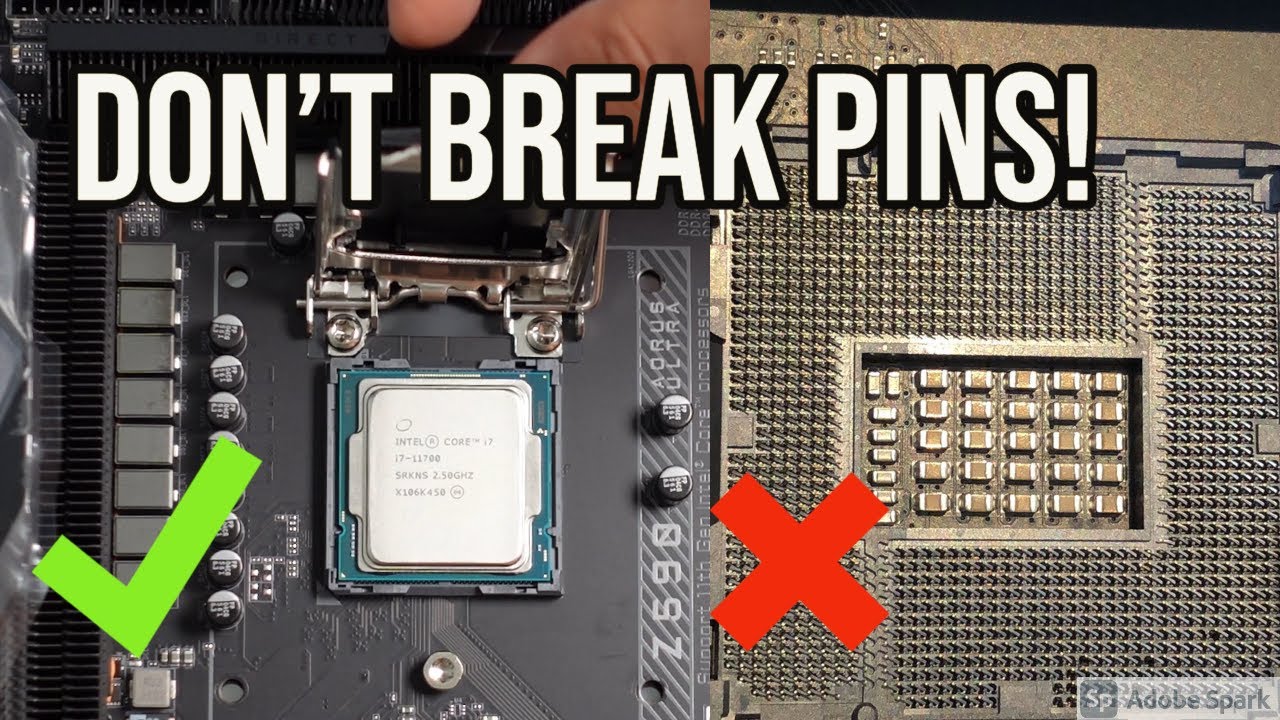

Preventing Damage to Components

During the CPU replacement process, it's essential to handle components with care to prevent damage. Here are some key tips to keep in mind:

• Handle the CPU by its edges, avoiding any contact with the pins or delicate circuitry.
• Avoid excessive force when installing or removing the CPU to prevent bending or breaking the pins.
• Avoid touching the gold contacts or pins on the bottom of the CPU, as oils and residues from your fingers can interfere with proper functioning.
• Take caution when applying thermal paste to avoid spills or excess paste on other components.

By following these precautions, you minimize the risk of damaging your components and ensure a smooth replacement process.

Performing Post-Replacement Steps

After installing the new CPU, it's crucial to perform the following post-replacement steps to ensure everything is functioning correctly:

• Connect all necessary power cables and ensure they are securely plugged in.
• Power on your computer and enter the BIOS settings to make sure the CPU is detected and operating at the correct frequency.
• Run a stress test or benchmarking software to verify the stability and performance of the new CPU.
• Monitor the CPU temperatures during normal usage and intensive tasks to ensure they are within safe limits.

Performing these post-replacement steps allows you to confirm that the new CPU is working correctly and troubleshoot any issues that may arise.

Replacing an Intel CPU may seem intimidating at first, but with the right knowledge and precautions, it can be a smooth and rewarding experience. By understanding the basics of Intel CPU replacement, exploring socket compatibility, and taking the necessary steps to safeguard your components, you can successfully replace your CPU and enjoy improved performance and functionality.

Replacing an Intel CPU: Step-by-Step Guide

When it comes to replacing an Intel CPU, it's important to follow a systematic approach to ensure a smooth and successful upgrade. Here is a step-by-step guide to help you through the process:

• Step 1: Gather the necessary tools, including a compatible replacement CPU, thermal paste, and a screwdriver.
• Step 2: Power down the computer and unplug all cables. Ground yourself to discharge any static electricity.
• Step 3: Open the computer case and locate the CPU socket on the motherboard.
• Step 4: Carefully lift the CPU retention mechanism and gently remove the existing CPU.
• Step 5: Apply a thin layer of thermal paste on the new CPU and align it with the socket, ensuring the notches and pin alignments match.
• Step 6: Carefully lower the retention mechanism back into place, locking the CPU securely.
• Step 7: Close the computer case, reconnect all cables, and power on the computer to test the new CPU.

Remember to consult the user manual or the manufacturer's website for specific instructions related to your motherboard and CPU model. If you are unsure or uncomfortable with the process, it is recommended to seek professional assistance.

Frequently Asked Questions

Replacing an Intel CPU is an important task that requires careful handling. Here are some frequently asked questions about how to replace an Intel CPU.

1. Can I replace my Intel CPU without professional help?

Yes, you can replace your Intel CPU without professional help if you have some technical knowledge and experience. However, it is important to follow proper safety measures and guidelines provided by Intel to avoid damaging your processor or other components.

Before attempting to replace your CPU, make sure you have the necessary tools, such as a screwdriver and thermal paste. Additionally, consult Intel's official documentation or online resources for step-by-step instructions specific to your CPU model.

2. What precautions should I take before replacing my Intel CPU?

Prior to replacing your Intel CPU, it is crucial to observe the following precautions:

- Turn off your computer and disconnect the power source.

- Ensure that you are working in an electrostatic discharge (ESD) safe environment to prevent static electricity from damaging your CPU or other components. Wear an ESD wrist strap if possible.

- Familiarize yourself with your computer's manual or consult Intel's documentation to understand the specific steps involved in replacing your CPU.

3. How do I remove the old Intel CPU?

When it comes to removing the old Intel CPU, follow these steps:

- Gently release the CPU socket lever to unlock the processor.

- Carefully lift the CPU out of the socket using the edges. Avoid touching the pins or any contact points on the bottom of the CPU.

4. How do I install the new Intel CPU?

Installing a new Intel CPU involves the following steps:

- Align the notches on the CPU with the notches on the socket.

- Gently place the CPU into the socket, ensuring it is properly seated.

- Close the CPU socket lever to secure the processor in place.

5. Is it necessary to apply thermal paste when replacing an Intel CPU?

Yes, it is crucial to apply thermal paste when replacing an Intel CPU. Thermal paste helps ensure proper heat transfer between the CPU and the heatsink, preventing overheating.

Before applying thermal paste, clean the surface of the CPU and heatsink using isopropyl alcohol. Then, apply a small amount of thermal paste (about the size of a grain of rice) onto the center of the CPU. Finally, place the heatsink on top and secure it properly.

In conclusion, replacing an Intel CPU is a relatively straightforward process that can greatly improve the performance of your computer. Remember to gather all the necessary tools and components, including a compatible CPU, thermal paste, and a screwdriver. Take the time to carefully disconnect and remove the old CPU, clean the socket, and apply new thermal paste before installing the new CPU.

Make sure to follow the manufacturer's instructions and consult online resources or seek professional help if needed. Once the new CPU is securely in place, reconnect all the cables, power on your computer, and ensure that it is functioning properly. By replacing an Intel CPU, you can boost your computer's speed and enjoy smoother performance for all your tasks and activities.
