How To Put Ryzen CPU In Motherboard
Are you ready to unlock the full potential of your system? Installing a Ryzen CPU in your motherboard is a crucial step towards maximizing your computer's performance. It may seem daunting, but with the right guidance, you'll be up and running in no time.
First, let's delve into the key aspects of this process. Ryzen CPUs, developed by AMD, have revolutionized the gaming and computing industry with their exceptional power and speed. By combining multiple cores and threads, these processors offer unparalleled performance and efficiency. With a wide range of models available, you can easily find the perfect Ryzen CPU to suit your needs and budget.
Installing a Ryzen CPU in a motherboard is a straightforward process that ensures optimal performance. Firstly, ensure that you have the correct motherboard socket for your CPU. Gently align the CPU with the socket and place it in, making sure the pins fit snugly. Apply a small amount of thermal paste on the CPU. Carefully lower the CPU cooler onto the CPU and fasten it securely. Finally, connect the power supply cables to the motherboard. Remember to handle the CPU and motherboard with caution and refer to the manufacturer's instructions for any specific details.
What You Need to Know About Installing a Ryzen CPU in a Motherboard
Installing a Ryzen CPU in a motherboard requires precision and attention to detail. As a crucial component of any computer system, the CPU is responsible for executing instructions and performing calculations. The Ryzen CPU, developed by AMD, is known for its powerful performance and efficient multitasking capabilities. In this guide, we will walk you through the process of putting a Ryzen CPU in a motherboard, ensuring a successful installation and optimal performance of your computer.
1. Gather the Necessary Tools and Components
Before you begin the installation process, it is essential to gather all the necessary tools and components. Here is a list of items you will need:
- Ryzen CPU
- Motherboard
- Thermal paste
- Screwdriver
- Anti-static wristband
Make sure you have these items readily available before starting the installation.
1.1 Choosing the Right Ryzen CPU
The first step in the process is to choose the right Ryzen CPU for your needs. Take into consideration factors such as your budget, intended use (e.g., gaming, content creation, or productivity), and compatibility with your chosen motherboard. AMD offers a range of Ryzen CPUs with varying specifications, so research and select the best fit for your requirements.
Once you have purchased the Ryzen CPU, ensure that the packaging is intact and undamaged. Inspect the CPU to make sure there are no bent pins or other physical defects that could affect its functionality.
Note: Before installing the CPU, ensure compatibility between your selected Ryzen CPU and the chosen motherboard. Check the motherboard manufacturer's website or manual for a list of supported CPUs.
1.2 Preparing the Motherboard
Next, prepare the motherboard for CPU installation. Remove the motherboard from its packaging and place it on a clean, non-conductive surface. Identify the CPU socket, which is usually located in the center of the motherboard.
Before proceeding further, consult the motherboard's manual to familiarize yourself with its layout and instructions specific to your model.
1.3 Understanding Thermal Paste
Thermal paste is a crucial component in the CPU installation process. It helps improve heat transfer between the CPU and the heatsink, ensuring efficient cooling. Before installing the CPU, apply an appropriate amount of thermal paste to the CPU's heat spreader. Refer to the thermal paste manufacturer's instructions for the recommended application method.
Keep in mind that applying too much thermal paste can hinder heat transfer and cause overheating, while applying too little can lead to insufficient cooling. Therefore, it is crucial to follow the manufacturer's guidelines.
1.4 Anti-static Precautions
Electrostatic discharge (ESD) can damage sensitive electronic components, including the CPU. To prevent ESD, it is highly recommended to wear an anti-static wristband while handling the CPU and motherboard. Alternatively, you can periodically ground yourself by touching a metal object to discharge any built-up static charges.

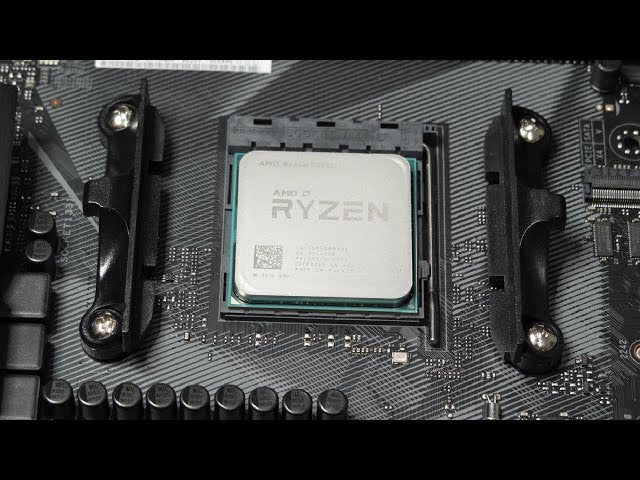

2. Installing the Ryzen CPU
Now that you have gathered the necessary tools and prepared the motherboard, it's time to install the Ryzen CPU. Follow these steps:
- Make sure the motherboard is powered off and disconnected from the power supply.
- Locate the CPU socket cover on the motherboard and lift it to expose the socket.
- Gently lift the lever securing the CPU socket to an upright position.
- Align the notches on the Ryzen CPU with the corresponding tabs on the socket.
- Lower the CPU into the socket, ensuring that it fits snugly.
- Press the CPU down gently, avoiding excessive force.
- Once the CPU is securely in place, lower the socket lever back into its locked position.
- Inspect the CPU to ensure that all pins are properly aligned and inserted into the socket.
By following these steps, you have successfully installed the Ryzen CPU in the motherboard.
2.1 Applying Thermal Paste
Before attaching the CPU cooler, apply an even and thin layer of thermal paste on the CPU's heat spreader. This will ensure adequate heat transfer between the CPU and the cooler. Refer to the thermal paste manufacturer's instructions for the proper application technique.
2.2 Attaching the CPU Cooler
After applying thermal paste, carefully align the CPU cooler with the mounting brackets on the motherboard. Secure the cooler in place using the provided screws or clips, ensuring it is firmly attached.
Note: The exact installation process for the CPU cooler may vary depending on the cooler model. Consult the cooler's manual or manufacturer's website for detailed instructions specific to your cooler.
3. Connecting Power and Testing
With the Ryzen CPU successfully installed, it's time to connect power to the motherboard and test the system. Follow these steps:
- Connect the 24-pin power cable from the power supply unit to the motherboard's 24-pin ATX power socket.
- If your power supply unit has a separate CPU power cable, connect it to the motherboard's corresponding CPU power socket.
- Connect any necessary cables for storage devices, graphics cards, and other peripherals.
- Double-check all connections to ensure they are secure.
- Connect a display monitor to the graphics card, if applicable.
Once all connections are made, connect the power supply unit to the mains and power on the system.
3.1 BIOS Setup
During the initial boot, the motherboard will display a prompt to enter the BIOS or UEFI setup. Follow the on-screen instructions to access the BIOS settings. In the BIOS, you may need to configure settings such as boot order, memory XMP profile, and CPU frequency depending on your requirements.
Consult the motherboard manual for detailed instructions on navigating the BIOS setup and making the necessary changes.
3.2 Testing System Stability
After configuring the BIOS settings, proceed to test the stability of the system. Run stress-testing software to assess the CPU's performance under heavy loads, as well as monitor the temperatures using software utilities.
If the system passes the stress tests without any issues and the temperatures remain within acceptable limits, congratulations! You have successfully installed and tested your Ryzen CPU in the motherboard.
Troubleshooting Common Issues
While the installation process is usually straightforward, there may be instances where you encounter issues. Here are a few common problems and their potential solutions:
1. Bent CPU Pins
If you notice bent pins on the Ryzen CPU, do not attempt to force them into the socket. Using excessive force can cause damage to the CPU or motherboard. Instead, consult a professional technician or contact the retailer for a replacement.
2. CPU Not Detected
If the CPU is not detected during the boot process, ensure it is properly seated in the socket and that the socket lever is securely locked. Additionally, check for any damaged pins or debris inside the socket. If the issue persists, consult the motherboard manual or contact technical support for further assistance.
3. Overheating
If the CPU temperatures are excessively high or the system experiences frequent overheating, verify that the CPU cooler is correctly installed and adequately cooled. Ensure the CPU and cooler are in direct contact with thermal paste. Also, check that the cooler's fans are functioning correctly and that there is sufficient airflow within the computer case.
If overheating continues to be a problem, consider upgrading to a larger or more efficient cooling solution and double-checking the proper seating of the CPU cooler.
3. BIOS Update
In some cases, updating the motherboard's BIOS to the latest version can resolve compatibility issues and improve CPU performance. However, BIOS updates should be approached with caution as an incorrect update process can cause irreparable damage to the motherboard. Always follow the manufacturer's instructions and backup any important data before attempting a BIOS update.
In Conclusion
Installing a Ryzen CPU in a motherboard is a critical step in building a high-performance computer system. By carefully following the steps outlined in this guide and taking necessary precautions, you can ensure a successful installation and optimal performance of your Ryzen CPU. Remember to consult the manuals provided with your components for manufacturer-specific instructions and always prioritize safety and proper handling of sensitive components. With your Ryzen CPU installed, you are ready to enjoy the power and capabilities of this advanced processor.
Step-by-Step Guide on How to Install a Ryzen CPU in a Motherboard
Installing a Ryzen CPU in a motherboard requires careful attention to detail and following specific steps. Here is a step-by-step guide:
- Prepare the motherboard and CPU: Ensure that you have a compatible motherboard for your Ryzen CPU. Remove any plastic coverings, and locate the CPU socket on the motherboard.
- Apply thermal paste: Apply a small amount of thermal paste on the center of the CPU. This helps with heat transfer.
- Place the CPU: Align the golden triangle on the CPU with the triangle on the CPU socket, and gently lower the CPU into place. Do not force it.
- Secure the CPU: Lock the CPU into place by moving the retention lever or latch. It should fit snugly and should not move.
- Install the CPU cooler: Attach the CPU cooler to the motherboard, making sure it is securely fastened.
- Connect power cables: Connect the CPU power cable from the power supply unit to the motherboard.
- Test the installation: Power on the system and check if the BIOS recognizes the CPU.
- Complete the setup: Once the CPU is recognized, proceed with the operating system installation and other necessary setup steps.
By following these steps, you can successfully install a Ryzen CPU in a motherboard and start enjoying its performance benefits.
### Key Takeaways:
- Make sure to handle the Ryzen CPU with care to avoid any damage.
- Before installing the CPU, double-check that it is compatible with your motherboard.
- Remove the protective cover on the CPU socket of your motherboard.
- Gently place the Ryzen CPU into the socket, aligning the golden triangle.
- Apply even pressure to lower the CPU into place, ensuring it is properly seated.
Frequently Asked Questions
Here are some common questions and answers about how to install a Ryzen CPU in a motherboard:
1. What precautions should I take before installing a Ryzen CPU in a motherboard?
Before installing a Ryzen CPU in a motherboard, there are a few precautions you should take:
1. Make sure you are working in a clean and static-free environment.
2. Double-check that the motherboard supports the specific Ryzen CPU model you have.
3. Ensure that you have the necessary tools, such as a screwdriver, thermal paste, and any additional components required for your specific motherboard.
2. How do I properly align the Ryzen CPU with the motherboard socket?
To properly align the Ryzen CPU with the motherboard socket, follow these steps:
1. Locate the CPU socket on your motherboard.
2. Lift the CPU socket lever to the open position.
3. Align the gold arrow or triangle on the Ryzen CPU with the corresponding markings or indicators on the CPU socket.
4. Gently place the CPU into the socket, ensuring that it is aligned properly.
5. Once aligned, lower the CPU socket lever to secure the CPU in place.
3. How should I apply thermal paste before installing the Ryzen CPU?
Applying the thermal paste correctly is crucial for proper CPU cooling. Here's how to do it:
1. Clean the surface of the CPU and the CPU cooler with isopropyl alcohol.
2. Apply a small dot or line of thermal paste onto the center of the Ryzen CPU.
3. Use a spreading tool or the heatsink itself to evenly spread the thermal paste across the CPU surface.
4. Ensure that the thermal paste is applied thinly and evenly without any excess.
4. What precautions should I take while installing the CPU cooler?
When installing the CPU cooler, it's important to take the following precautions:
1. Make sure the CPU cooler is compatible with your Ryzen CPU and motherboard.
2. Handle the CPU cooler carefully to avoid damaging the CPU or motherboard.
3. Apply the right amount of pressure when attaching the CPU cooler to the CPU socket.
4. Secure the CPU cooler firmly but not excessively, avoiding overtightening the mounting screws or brackets.
5. What should I do after installing the Ryzen CPU in the motherboard?
Once the Ryzen CPU is installed in the motherboard, follow these steps:
1. Connect the CPU fan to the appropriate CPU fan header on the motherboard.
2. Install the RAM modules into the motherboard's memory slots.
3. Connect any additional power cables, such as the 24-pin motherboard power connector and the 8-pin CPU power connector.
4. Double-check all connections and ensure that everything is securely in place.
5. Finally, close the computer case, connect all peripherals, and power on the system to complete the installation process.
So there you have it, now you know how to put a Ryzen CPU in a motherboard! It may seem daunting at first, but by following these simple steps, you'll be able to successfully install your CPU without any issues.
Remember to ensure that you have compatible hardware, apply thermal paste correctly, and handle the CPU with care to avoid any damage. Take your time and double-check all connections to make sure everything is securely in place. Once you've completed the installation, you can proceed with the rest of your computer setup and enjoy the power and performance of your new Ryzen CPU!
