How To Install A Pcie X16 Graphics Card

Installing a PCIe x16 graphics card requires careful handling and attention to detail. Follow these professional steps:

1. Power off your computer and unplug it from the wall outlet.
2. Open the computer case and locate an available PCIe x16 slot on your motherboard.
3. Remove the metal slot cover for the chosen slot.
4. Align the graphics card with the slot and firmly insert it, ensuring it is fully seated.
5. Secure the graphics card with the screw or latch provided.
6. Connect the necessary power cables from your power supply to the graphics card.
7. Close the computer case, plug in your computer, and power it on.
8. Install the latest drivers for your graphics card from the manufacturer's website, following their instructions.
9. Restart your computer to complete the installation.

Understanding the Importance of a PCIe X16 Graphics Card

Installing a PCIe X16 graphics card is a crucial step for any computer enthusiast looking to enhance their system's graphics capabilities. The PCIe X16 interface offers high-speed data transfer, allowing for smooth and immersive gaming experiences, advanced video editing, and improved visual performance in various professional applications. Whether you're a seasoned PC builder or a novice looking to upgrade your machine, understanding the process of installing a PCIe X16 graphics card is essential. This guide will provide you with step-by-step instructions to successfully install your new graphics card and unlock the full potential of your system.

1. Preparing for Installation

Before diving into the installation process, it's important to gather the necessary tools and ensure compatibility between your new graphics card and your existing system. Here are some key steps to prepare for the installation:

• Check the system requirements: Verify that your computer meets the minimum requirements for installing a PCIe X16 graphics card. This includes factors such as power supply capabilities, available physical space in the case, and the appropriate PCIe slot.
• Acquire the necessary tools: To install the graphics card, you'll need a screwdriver, an antistatic wristband, and thermal paste if needed for aftermarket cooling solutions.
• Backup your data: Before making any hardware changes, it's always a good idea to back up your important files and data. This ensures that in case of any unforeseen issues during the installation process, your data remains secure.
• Uninstall previous graphics card drivers: If you're upgrading from an existing graphics card, uninstall the drivers associated with that card to prevent conflicts during installation. This can be done through the Device Manager or by using specialized software.

Gathering Compatibility Information

Before purchasing a new PCIe X16 graphics card, it's important to ensure compatibility with your system. The following steps will help you gather the necessary information:

• Check your power supply unit (PSU): The PSU should have sufficient power to support the new graphics card. Check the manufacturer's specifications for a recommended power supply wattage and connective options (such as PCIe power connectors).
• Measure your available space: Graphics cards come in various sizes. Measure the physical space available inside your computer case to ensure the new graphics card will fit. Pay attention to the length, height, and width of the card.
• Identify the PCIe slot: Open your computer case and locate the PCIe slot where the graphics card will be installed. Ensure that it's a PCIe X16 slot, as other types like PCIe X1 or PCIe X4 won't be compatible.
• Review the system requirements: Visit the GPU manufacturer's website to check the system requirements. Make sure your computer meets the necessary specifications, such as the operating system and minimum RAM requirements.

Uninstalling Previous Graphics Card Drivers

If you're upgrading from an existing graphics card, it's essential to remove the old drivers before installing a new one. Follow these steps to uninstall the drivers:

• Open the Control Panel and navigate to "Programs and Features."
• Locate the software associated with your previous graphics card, such as NVIDIA or AMD drivers.
• Select the software and click on the "Uninstall" or "Remove" option.
• Follow the on-screen instructions to complete the uninstallation process.

Backing Up Your Data

Prior to any hardware changes, it's highly recommended to back up your important files and data. This precautionary step ensures that even if something goes wrong during the installation process, your critical information remains safe. You can back up your data using various methods, such as:

• External storage devices: Use external hard drives, USB flash drives, or cloud storage services to create a backup of your important files.
• Online backup services: Consider utilizing online backup platforms that offer secure data backup and recovery options.
• Network storage: If you have a NAS (Network Attached Storage), you can back up your data to the network drive.

2. Installing the PCIe X16 Graphics Card

Now that you've prepared your system for the installation process, it's time to proceed with installing the PCIe X16 graphics card. Follow the step-by-step instructions below:

Step 1: Power Off and Unplug

Before handling any internal components, make sure your computer is powered off and unplugged from the electrical outlet. This will prevent any potential damage to the system or yourself.

Step 2: Open the Computer Case

Remove the side panel of your computer case to gain access to the internal components. Consult your computer's manual if you're unsure how to safely open the case.

Step 3: Locate the PCIe X16 Slot

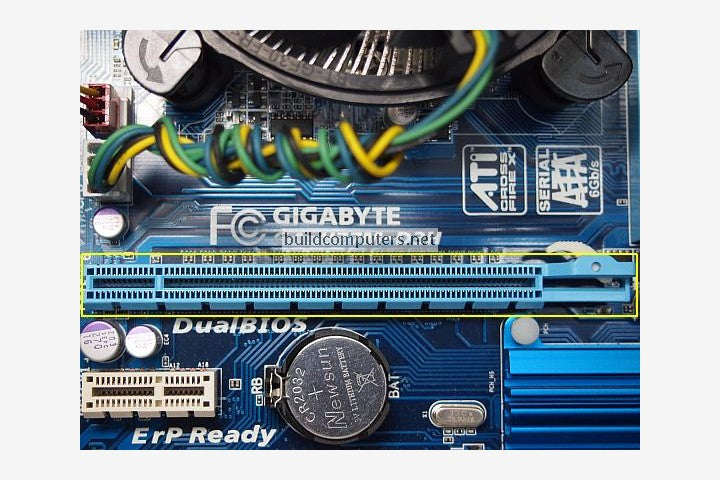

Locate the PCIe X16 slot where the graphics card will be installed. It's usually located towards the rear of the motherboard and will have a longer length compared to other PCIe slots. Ensure that any PCIe slot covers are removed before proceeding.

Step 4: Insert the Graphics Card

Gently hold the PCIe X16 graphics card by the edges, ensuring that you do not touch any of the gold contacts on the bottom. Align the notches on the card with the PCIe slot and insert it firmly into the slot. Apply even pressure on both ends until the card is securely seated.

Step 5: Secure the Graphics Card

Once the graphics card is inserted, secure it in place using the retention mechanism provided by your motherboard. This can be a latch, clip, or screw depending on the design. Follow the instructions in your motherboard's manual to ensure proper installation.

Step 6: Connect Power and Video Cables

Depending on your graphics card and power supply specifications, connect the necessary power cables to the graphics card. This may include PCIe power connectors or additional power connectors specific to your card model. Additionally, connect the video cable from your monitor to the ports on the graphics card.

Step 7: Close the Computer Case

Now that the installation is complete, carefully close the computer case and reattach the side panel. Make sure all screws and latches are securely fastened.

3. Post-Installation Steps

After installing your new PCIe X16 graphics card, there are a few post-installation steps you should follow to ensure optimal performance:

• Power on the computer and enter the BIOS/UEFI: Upon startup, enter the BIOS or UEFI settings by pressing the designated key (such as F2, Del, or Esc) as indicated on the screen. Verify that the graphics card is recognized, and make any necessary adjustments to the system settings.
• Install the latest graphics card drivers: Visit the manufacturer's website and download the latest drivers for your graphics card. Install them following the provided instructions. This will ensure compatibility, stability, and access to the latest features and optimizations.
• Perform benchmark tests: After the driver installation, it's recommended to run benchmark tests to assess the performance of your new graphics card. This will help you analyze its capabilities and compare it to previous installations or other systems.
• Monitor temperatures and adjust cooling: Keep an eye on the temperatures of your graphics card during heavy usage. If necessary, adjust fan speeds or consider installing additional cooling solutions to maintain optimal temperatures.

4. Troubleshooting Common Issues

Despite careful installation, you may encounter some common issues with graphics card installations. Here are a few potential problems and their solutions:

No Display or Blank Screen

If your monitor displays no image after installing the graphics card:

• Check the power connectors: Ensure that the power connectors are securely connected to the graphics card.
• Verify the PCIe slot: Remove and reinsert the graphics card to ensure it is properly seated in the PCIe slot.
• Update the BIOS/UEFI: Check your motherboard manufacturer's website for any BIOS/UEFI updates that may improve graphics card compatibility.
• Try a different video output: If your graphics card has multiple video outputs, try connecting your monitor to a different port.

Crashes or Blue Screens

If your system crashes or experiences blue screen errors after installing the graphics card:

• Update drivers: Ensure you have the latest graphics card drivers installed. Visit the manufacturer's website to download and install the most up-to-date drivers.
• Check power supply: Insufficient power supply can cause instability. Verify that your power supply meets the requirements of your graphics card and is functioning correctly.
• Check cooling: Overheating can lead to system instability. Ensure that your graphics card is adequately cooled, and clean any dust buildup on fans or heatsinks.

Artifacts or Visual Distortions

If you notice artifacts or visual distortions in your display:

• Check cable connections: Make sure all video and power cables are securely connected to the graphics card and monitor.
• Check monitor settings: Adjust the resolution, refresh rate, and color settings of your monitor to ensure they are compatible with your graphics card's capabilities.
• Reinstall drivers: Uninstall the graphics card drivers and perform a clean reinstallation to rule out any software-related issues.

Take Your Graphics Performance to the Next Level

Installing a PCIe X16 graphics card is a significant upgrade that can unleash the full power of your computer's visual capabilities. By following the steps outlined in this guide, you can confidently install your new graphics card and enjoy enhanced graphics, improved gaming experiences, and smoother video rendering. Remember to always refer to the manufacturer's instructions and specifications for your specific graphics card model and consult professional help when needed. Now, it's time to unlock the potential of your system and immerse yourself in the world of high-performance graphics!

Installing a Pcie X16 Graphics Card

When it comes to installing a Pcie X16 graphics card, follow these steps for a successful installation:

• Prepare your computer by shutting it down and disconnecting all cables.
• Open your computer case by removing the screws or latches that hold the side panel in place.
• Locate an available Pcie X16 slot on your motherboard and remove the slot's protective cover.
• Align the graphics card with the slot and firmly press it into place. Make sure the gold contacts on the card are properly inserted into the slot.
• Secure the graphics card by screwing it into the case using the provided screws.
• Connect the necessary power cables from your power supply to the graphics card.
• Replace the side panel of your computer case and reconnect all cables.
• Power on your computer and install the appropriate drivers for your graphics card.
• Test your graphics card to ensure it is working correctly.

It is important to consult the user manual of your specific graphics card and motherboard for any additional instructions or variations in the installation process.

Frequently Asked Questions

Installing a PCIe X16 graphics card can greatly enhance your computer's graphics performance. Here are some common questions and answers to help you through the installation process.

1. Can I install a PCIe X16 graphics card on any motherboard?

Yes, you can install a PCIe X16 graphics card on any motherboard that has an available PCIe X16 slot. However, it is important to check the compatibility of your motherboard with the graphics card before making a purchase. Look for information about supported PCIe versions (such as PCIe 2.0 or PCIe 3.0) and make sure your motherboard meets the requirements. When installing the graphics card, make sure to power off your computer and disconnect the power cord before opening the case. Consult your motherboard's manual for the location of the PCIe X16 slot and follow the installation instructions provided by the graphics card manufacturer.

2. Do I need to uninstall my old graphics card before installing a new one?

If you have an existing graphics card installed in your computer, it is generally recommended to uninstall the old graphics card drivers before installing a new one. This helps to avoid any conflicts between the old and new drivers. To uninstall the old graphics card drivers, you can go to the Control Panel in Windows, select "Uninstall a program" or "Add or remove programs," and find the driver software related to your old graphics card. Follow the prompts to uninstall the software. Afterward, you can proceed with installing the new graphics card and its drivers.

3. How do I physically install the PCIe X16 graphics card?

To physically install a PCIe X16 graphics card, follow these steps: 1. Power off your computer and disconnect the power cord. 2. Open the computer case by removing the screws or sliding the panels. 3. Locate the PCIe X16 slot on your motherboard. 4. Remove the slot cover on the back of the case that aligns with the PCIe X16 slot. 5. Carefully insert the graphics card into the PCIe X16 slot, ensuring that it is firmly seated. 6. Secure the graphics card to the case using the screws provided. 7. Close the computer case and reconnect the power cord. Note: It is important to handle the graphics card with care and avoid touching the gold connectors.

4. Do I need to connect additional power cables to the graphics card?

Some high-performance graphics cards require additional power beyond what the PCIe slot provides. These graphics cards often have extra power connectors, such as 6-pin or 8-pin connectors, that need to be connected to the power supply unit (PSU). Check the specifications of your graphics card to determine if additional power cables are required. If your graphics card does require extra power, ensure that your PSU has the necessary connectors available. Connect the power cables from the PSU to the corresponding connectors on the graphics card. This will provide the necessary power for the graphics card to function properly.

5. How do I install the drivers for the new graphics card?

After physically installing the new graphics card, you will need to install the drivers to ensure proper functionality and performance. Follow these steps: 1. Power on your computer and log in to your operating system. 2. Insert the driver installation disc that came with the graphics card into your computer's optical drive, or download the latest drivers from the manufacturer's website. 3. Follow the prompts to install the graphics card drivers. This typically involves running an installer program and accepting the license agreement. 4. Once the installation is complete, restart your computer to apply the changes. 5. After restarting, you may need to configure your display settings in the operating system or graphics card control panel to optimize the performance and resolution. Note: It is recommended to always use the latest drivers available, as they often include bug fixes and performance improvements. Check the manufacturer's website regularly for any driver updates. These are some of the frequently asked questions about installing a PCIe X16 graphics card. Remember to always follow the instructions provided by the graphics card manufacturer and consult your motherboard's manual for any specific requirements. Happy gaming and graphic-intensive tasks!

In conclusion, installing a PCIe X16 graphics card is a relatively simple process that can greatly enhance your computer's graphics performance. It is important to ensure you have the necessary hardware and software requirements, such as an available PCIe X16 slot and compatible drivers. Once you have prepared your system, you can begin the installation process by carefully inserting the graphics card into the slot and securing it with a screw.

After installing the card, make sure to connect any additional power cables required by the graphics card. Finally, turn on your computer and install the drivers for the new card. This can usually be done by downloading the latest drivers from the manufacturer's website and following the installation instructions. With the new PCIe X16 graphics card installed and drivers updated, you will be able to enjoy improved visuals and smoother performance in your favorite games and applications.
