How To Insert Graphics Card

When it comes to enhancing your computer's graphical performance, one of the most effective upgrades you can make is inserting a new graphics card. Whether you're a professional gamer, a video editor, or just looking to improve your display quality, a graphics card can make all the difference. With the ability to handle complex visuals and render high-resolution graphics, a graphics card can take your computing experience to the next level.

Inserting a graphics card may seem like a daunting task, but with the right guidance, it can be a straightforward process. First, you'll want to ensure that you have the appropriate hardware and software compatibility. Researching the specifications of your computer and the graphics card you intend to install is crucial for a successful installation. Once you have the necessary information, you can prepare your computer by shutting it down, disconnecting all power sources, and opening the case. Carefully insert the graphics card into the designated slot, making sure it is securely fastened. Finally, reassemble your computer, connect all necessary cables, and power it back on. Congratulations, you've successfully installed a new graphics card!

Understanding Graphics Cards

Before diving into the process of inserting a graphics card, let's first understand what a graphics card is and why it is crucial for your computer's performance. A graphics card, also known as a video card or GPU (Graphics Processing Unit), is a specialized electronic circuit that accelerates the creation and rendering of images, videos, and animations on a computer.

A graphics card is responsible for generating and displaying visual information on your computer monitor. It takes the load off the CPU (Central Processing Unit), allowing it to focus on other tasks while the GPU processes graphics-related tasks efficiently and quickly. Whether you're a gamer, video editor, or designer, having a powerful graphics card ensures smoother and more immersive visual experiences.

The graphics card connects to your computer's motherboard through a slot known as the PCIe (Peripheral Component Interconnect Express) slot. In this article, we will guide you through the process of inserting a graphics card into your computer, step by step.

Preparation and Safety

Before starting the process of inserting a graphics card, it is essential to take some precautions to ensure the safety of your computer and yourself. Here are a few important steps to follow:

• Turn off your computer and unplug it from the power source. This will prevent any accidental damage and ensure your safety.
• Ground yourself to discharge any static electricity buildup. You can do this by touching a grounded metal surface or using an anti-static wristband.
• Read the documentation provided with your graphics card to familiarize yourself with its specifications, compatibility, and installation process.
• Prepare a clean and static-free workspace to work on your computer. Avoid carpets or surfaces that generate static charges.

Checking Compatibility

Before purchasing a graphics card, it is crucial to ensure that it is compatible with your computer's hardware and operating system. Here are a few factors to consider:

• Check the specifications of your computer's power supply unit (PSU) to determine if it can provide enough power for the graphics card.
• Verify that your motherboard has a free PCIe slot available for the graphics card. You can consult the motherboard's documentation or visit the manufacturer's website for this information.
• Consider the physical dimensions of the graphics card and the available space inside your computer's case. Ensure that there is enough clearance for the card to fit without obstructing other components.
• Check if your operating system supports the graphics card and if the necessary drivers are available.

Gathering the Required Tools

Before proceeding with the installation process, gather the necessary tools to make the process smoother:

• Phillips screwdriver: You will need this tool to remove the screws securing the computer case and the graphics card slot covers.
• Compressed air or a soft brush: Use these tools to clean out any dust or debris from the PCIe slot and other components.
• Antistatic wristband (optional): While not required, an antistatic wristband can help further protect your computer from static electricity discharge.

Installing the Graphics Card

Now that you've prepared and gathered the necessary tools, it's time to install the graphics card. Follow these steps:

Step 1: Opening the Computer Case

1. Turn off your computer and unplug it from the power source.

2. Place your computer on a stable, static-free surface.

3. Use a Phillips screwdriver to remove the screws securing the computer case. The number and location of the screws may vary depending on the case manufacturer.

4. Slide off the computer case to expose the internal components.

Step 2: Removing the Slot Covers

1. Locate the PCIe slot where you will be inserting the graphics card. It is typically located near the back of the computer.

2. Identify the slot covers corresponding to the PCIe slots and remove them by unscrewing the screws or pressing the release latch, depending on the case design.

3. Keep the slot covers in a safe place in case you need to replace them in the future.

Step 3: Preparing the Graphics Card

1. Carefully remove the graphics card from its packaging, handling it by the edges and avoiding touching any of the delicate components.

2. Take a moment to examine the graphics card and identify the PCIe connector. It is a long, narrow connector located on the bottom of the graphics card.

3. Check for any protective plastic covering or protective caps on the PCIe connector, and remove them if present.

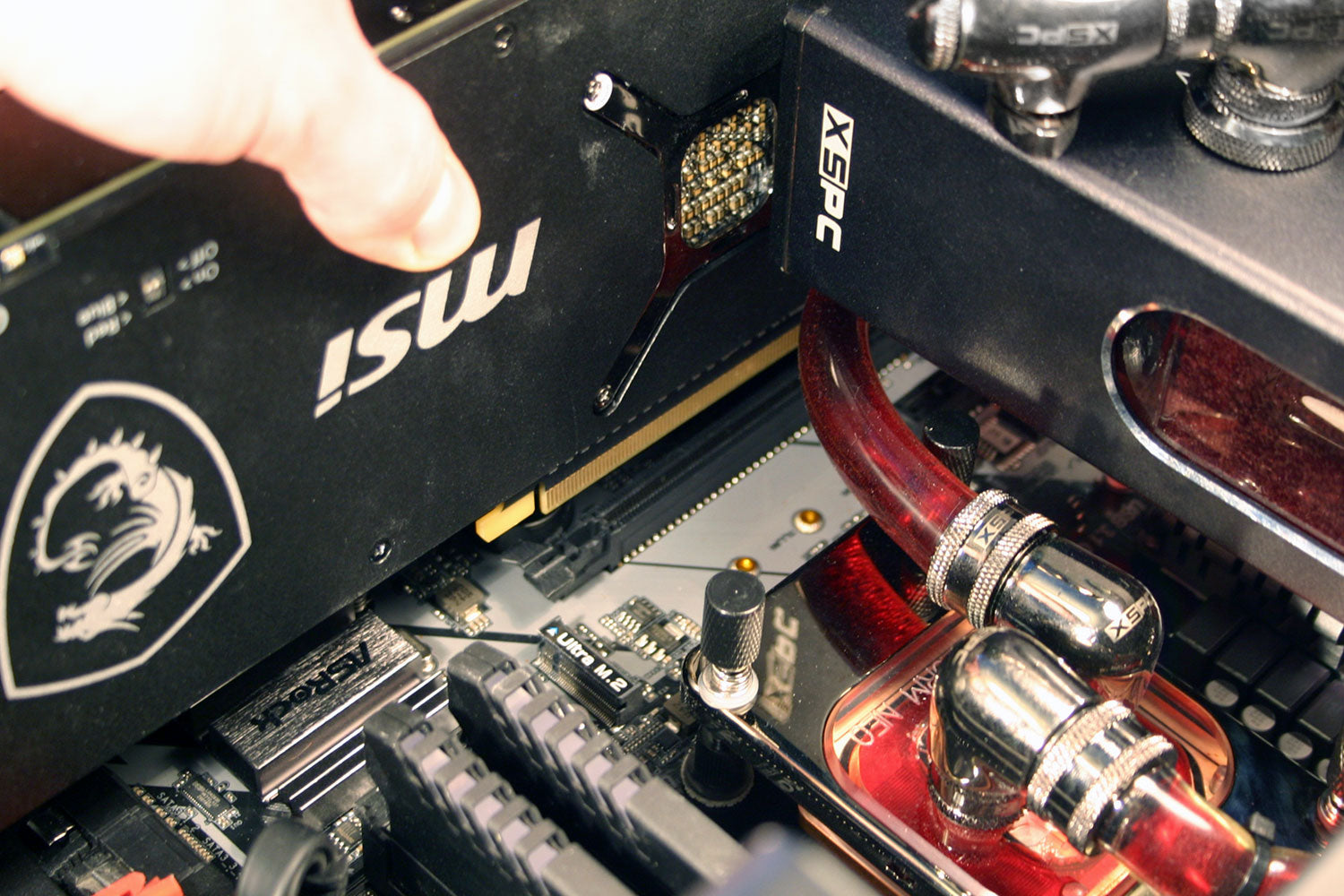

Step 4: Inserting the Graphics Card

1. Align the graphics card's PCIe connector with the open PCIe slot on the motherboard.

2. Gently insert the graphics card into the slot, applying even pressure until it is fully seated. Do not force it or wiggle it excessively.

3. Once inserted, secure the graphics card by tightening the screws on the PCIe slot bracket. These screws will vary depending on your case design.

Final Steps

After successfully inserting the graphics card, follow these final steps to complete the process:

Step 1: Closing the Computer Case

1. Ensure that the graphics card is securely in place and all necessary connections are made.

2. Slide the computer case back into its original position.

3. Use the Phillips screwdriver to reattach the screws and secure the computer case.

Step 2: Connecting Cables

1. Locate the PCIe power connectors on the graphics card (if applicable). These connectors may be located on the side or back of the card.

2. Connect the appropriate power cables from your power supply unit (PSU) to the graphics card. Ensure a secure connection.

3. Double-check all other cables, such as the monitor cable and any additional peripherals, to ensure they are properly connected.

Step 3: Powering On the Computer

1. Plug your computer back into the power source.

2. Turn on your computer and wait for it to boot up.

3. Install the necessary drivers for your graphics card. These can usually be downloaded from the manufacturer's website.

Troubleshooting

While the process of inserting a graphics card is generally straightforward, you may encounter some issues along the way. Here are a few troubleshooting tips:

Compatibility Issues

If your graphics card isn't working properly or not working at all, it could be due to compatibility issues. Here's what you can do:

• Double-check that your power supply can provide enough power for the graphics card.
• Ensure that the graphics card is properly seated in the PCIe slot. Sometimes, it may not make contact properly due to misalignment.
• Make sure that the necessary drivers are installed and up to date.
• If the graphics card worked previously and suddenly stopped working, consider if any recent system or software updates may have caused the issue.
• Consult the graphics card manufacturer's support website or contact their customer support for further assistance.

Display Issues

If you're experiencing display issues after installing a new graphics card, try these troubleshooting steps:

• Check that the monitor cable is securely connected to both the graphics card and the monitor.
• Ensure that the monitor is set to the correct input source.
• Try connecting the monitor to a different port on the graphics card (if available).
• Update the graphics card drivers to the latest version.
• If the display issues persist, try connecting a different monitor to see if the problem is with the graphics card or the monitor.

Performance Issues

If you're not experiencing the expected performance boost after installing a new graphics card, consider these troubleshooting steps:

• Verify that the graphics card is recognized by your computer's operating system.
• Ensure that the necessary drivers are installed and up to date.
• Check the graphics settings in your applications and games to ensure they are using the dedicated graphics card instead of integrated graphics (if applicable).
• Verify that your power supply can provide enough power for the graphics card under heavy workloads.
• Monitor the graphics card's temperatures and ensure that it is not overheating. Clean any dust or debris from the card's cooling system if necessary.

By following these troubleshooting steps, you should be able to resolve any issues you encounter after inserting a graphics card into your computer. Remember to stay patient and seek professional assistance if needed.

Step-by-Step Guide on How to Insert a Graphics Card

If you are looking to enhance the performance of your computer's graphics capabilities, inserting a graphics card is a great solution. Here is a step-by-step guide on how to insert a graphics card:

Step 1: Shut Down and Unplug Your Computer

Prior to inserting the graphics card, it is crucial to power off your computer and unplug it from the power source. This ensures safety and prevents any electrical damage during the installation process.

Step 2: Open the Computer Case

Next, carefully remove the screws or fasteners that hold the computer case together. Gently slide off the side panel to gain access to the internal components of your computer.

Step 3: Locate the Appropriate Slot

Identify the correct slot where the graphics card will be inserted. This is typically a PCI Express slot, which is larger and longer than other expansion slots in your computer.

Step 4: Insert the Graphics Card

Carefully align the graphics card with the slot and gently push it into place. Apply even pressure to ensure a secure connection. Make sure the card is firmly seated and the metal bracket aligns with the opening in the computer case.

Step 5: Secure the Graphics Card

Use the screws provided with

Frequently Asked Questions

Here are some common questions about how to insert a graphics card:

1. What tools do I need to insert a graphics card?

To insert a graphics card, you will need the following tools:

• Screwdriver
• Antistatic wristband
• Graphics card

These tools will help ensure a safe and secure installation process.

2. How do I prepare my computer for installing a graphics card?

Before installing a graphics card, it is important to prepare your computer. Follow these steps:

• Power off your computer and unplug it from the power source.
• Open the computer case to access the motherboard.
• Touch a metal surface to discharge any static electricity.

These steps will help prevent any damage to your computer components during the installation process.

3. How do I insert a graphics card into the motherboard?

To insert a graphics card into the motherboard, follow these steps:

• Locate the PCIe slot on the motherboard.
• Gently insert the graphics card into the slot, aligning the connectors.
• Press down firmly until the card is securely seated in the slot.

Make sure that the card is inserted straight and level to avoid any damage.

4. How do I connect the power cables to the graphics card?

To connect the power cables to the graphics card, follow these steps:

• Locate the power connectors on the graphics card.
• Connect the appropriate power cables from the power supply to the connectors.
• Ensure that the connections are secure.

Proper power connections are crucial for the graphics card to function correctly.

5. How do I test if the graphics card is installed correctly?

After installing the graphics card, you can test if it is installed correctly using the following steps:

• Power on your computer.
• Check if the graphics card is recognized in the device manager.
• Run a graphics-intensive program or game to test the performance of the card.

If the graphics card is working properly, you should see improved graphics performance.

By following these steps, you can easily insert a graphics card into your computer. Remember to turn off the power and remove any static electricity before touching the components. Start by locating the appropriate slot, usually a PCI-E slot, on your motherboard. Gently align the graphics card with the slot and firmly press it down until it is securely seated. Finally, reattach any necessary cables and turn on the power. Your computer should now recognize the new graphics card.

Inserting a graphics card can greatly enhance your computer's performance, allowing you to enjoy higher-quality visuals and smoother gameplay. It's a relatively simple process that anyone can do with care and attention. Just make sure to choose a graphics card that is compatible with your motherboard and meets your specific needs. Whether you're a gamer or a multimedia enthusiast, upgrading your graphics card can take your computing experience to the next level.
