How To Connect Graphics Card

To connect a graphics card, follow these steps:

1. Turn off your computer and unplug it from the power source.
2. Open the computer case by removing the screws on the side panel.
3. Locate an available PCI Express slot on the motherboard.
4. Carefully insert the graphics card into the slot, ensuring it is fully seated.
5. Secure the graphics card with the screw or latch provided.
6. Connect the power cables from the power supply to the graphics card, if required.
7. Close the computer case and screw it back into place.
8. Plug in the computer and turn it on.
9. Install the necessary drivers for the graphics card.
10. Restart your computer to complete the installation



    Understanding Graphics Cards and Their Connection

    Graphics cards are essential components in modern computers, especially for those who require high-performance graphics processing. Whether you're a gamer, graphic designer, or video editor, having a dedicated graphics card can significantly enhance your computer's visual capabilities. However, to enjoy the full benefits of a graphics card, it's crucial to understand how to connect it properly. This article will guide you through the process of connecting a graphics card, ensuring that you make the most of this powerful hardware component.

    Identifying the Appropriate Slot

    The first step in connecting a graphics card is identifying the appropriate slot on your motherboard. Most modern graphics cards use the PCI Express (PCIe) slot, which provides faster data transfer rates and better performance compared to other slots like PCI or AGP. Locate the PCIe slot on your motherboard, typically longer than other expansion slots and usually located near the processor or memory slots. Refer to your motherboard's documentation to locate the specific PCIe slot you should use.

    It's essential to ensure that the slot is compatible with your graphics card. Graphics cards come in different sizes, with the most common being the x16 size. However, there are also smaller x8 and x4 sizes. Check the dimensions of your graphics card and ensure that it matches the size of the PCIe slot you've identified. A larger card may require an x16 slot, while smaller cards can be accommodated by x8 or x4 slots.

    Before proceeding, make sure to power off your computer and unplug it from the electrical outlet. This step is crucial to prevent any damage to your components or electrical shocks.

    Once you've identified the appropriate slot and ensured compatibility, you're ready to connect your graphics card.

    Preparing for Installation

    Before installing the graphics card, it's essential to prepare your computer for the upgrade. Follow these steps:

    • Ensure your power supply unit (PSU) has enough wattage to support the new graphics card. High-performance graphics cards require more power, so check the card's power requirements and compare them with your PSU's specifications. If necessary, upgrade your PSU to avoid potential issues.
    • Remove any existing graphics card drivers from your computer. These drivers may interfere with the installation of your new graphics card. Uninstall the drivers using the appropriate software, or use the Device Manager in Windows to remove them.
    • Ground yourself by touching a metal object to discharge any static electricity. This step is crucial in preventing electrostatic discharge (ESD) that could damage sensitive electronic components.
    • Prepare the necessary tools, including a screwdriver and any cables or adapters that may accompany your graphics card.

    By taking these steps, you'll ensure a smooth and problem-free installation process.

    Installing the Graphics Card

    Now that you've prepared your computer, it's time to connect the graphics card. Follow these steps:

    • Locate the PCIe slot you identified earlier and remove the expansion slot covers adjacent to it. These covers may be attached with screws or clips. Set them aside as you'll need to reattach them if you remove the graphics card in the future.
    • Gently align the graphics card with the PCIe slot and slide it into place. Make sure not to apply excessive force or twist the card as you insert it. The metal connector on the card should fit securely into the slot.

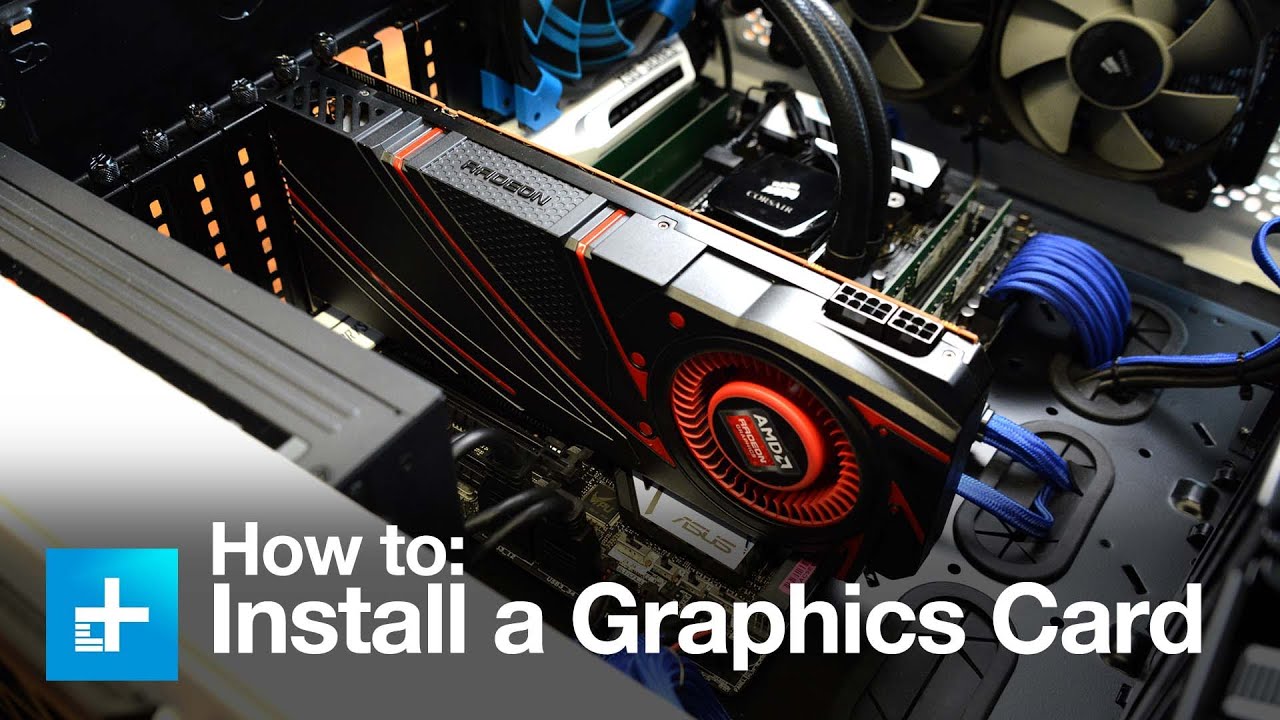

    • Secure the graphics card to the case using screws. Typically, there will be a screw or latch at the end of the slot to hold the card in place. Use the screw provided with your case or motherboard to secure the card firmly.

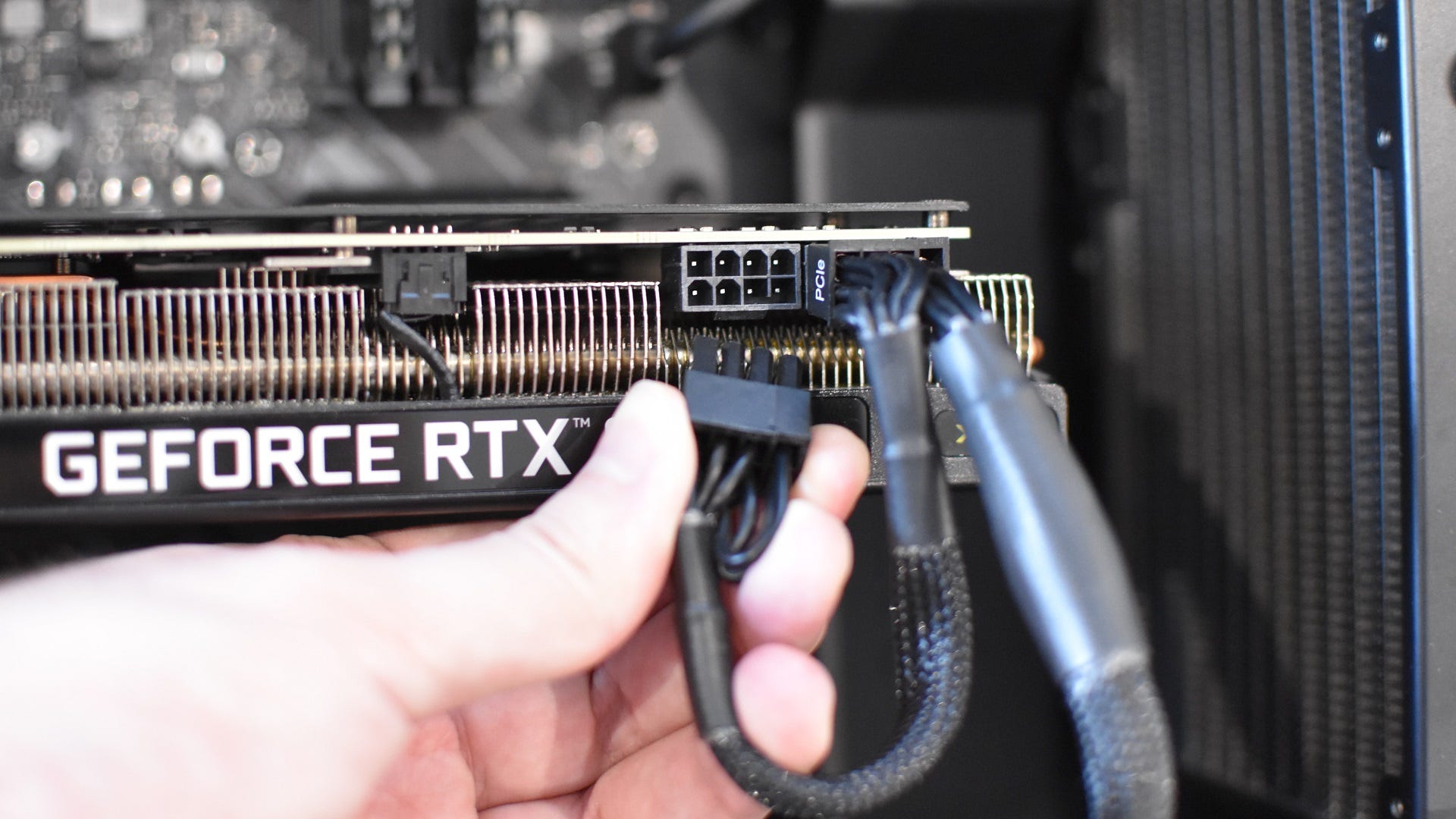

    • Connect the appropriate power cables to the graphics card. Depending on the model, this may include a combination of six-pin, eight-pin, or twelve-pin power connectors. Refer to your graphics card's documentation to ensure you connect the cables correctly and provide sufficient power to the card.
    • If your graphics card requires additional connections, such as HDMI or DisplayPort for video output, connect the appropriate cables to the respective ports on the GPU and your monitor. These connections may vary depending on your card's specifications and the available ports on your monitor.

    Once you've completed these steps, you can proceed to reassemble your computer and prepare for the next steps in configuring your graphics card.

    Configuring Graphics Card Settings

    After connecting the graphics card, there are some important settings and configurations to consider:

    • Boot your computer and access the BIOS or UEFI settings by pressing the designated key during startup. The key may vary depending on your motherboard manufacturer, but it's typically Del, F2, or Esc. In the BIOS settings, ensure that the PCIe slot is set as the primary display adapter. This step ensures that the computer recognizes and utilizes the graphics card as the main graphics device.
    • Install the latest graphics card drivers from the manufacturer's website. These drivers optimize performance, enable additional features, and fix potential issues. Visit the manufacturer's website and locate the appropriate driver for your graphics card and operating system. Download and install the driver following the provided instructions.
    • Configure graphics card settings through the driver control panel. Depending on your graphics card manufacturer, this control panel may be named NVIDIA Control Panel, AMD Radeon Settings, or Intel Graphics Command Center. Here, you can adjust various settings, such as display resolution, refresh rate, anti-aliasing, and more. Explore these settings to customize your graphics card according to your preferences and needs.

    With these steps, you have successfully connected and configured your graphics card. Enjoy the enhanced graphics performance and capabilities that the graphics card brings to your computer.

    Powering and Troubleshooting Your Graphics Card

    Now that you have connected your graphics card, it's important to ensure that it receives sufficient power and troubleshoot any potential issues that may arise. This section will guide you through powering and troubleshooting your graphics card effectively.

    Powering the Graphics Card

    To ensure your graphics card receives sufficient power, follow these steps:

    • Ensure that your power supply unit (PSU) is properly connected to your graphics card. Double-check that all power cables are securely attached to the graphics card's power connectors and the PSU's power output. Loose connections can cause instability or performance issues.
    • If your PSU has multiple power connectors of the same type (e.g., two six-pin connectors), connect separate cables to each connector on the graphics card instead of using a single cable with a splitter. This ensures sufficient power delivery to the card and prevents potential power limitations.
    • Check your graphics card's power requirements and compare them to your PSU's wattage. If your power supply doesn't meet the recommended wattage, consider upgrading to a higher-capacity PSU to avoid power-related issues.

    By following these power-related steps, you'll ensure that your graphics card receives the necessary power for optimal performance.

    Troubleshooting Graphics Card Issues

    If you encounter any issues with your graphics card, such as graphical artifacts, crashes, or performance problems, here are some troubleshooting steps to try:

    • Update your graphics card drivers to the latest version. Outdated or incompatible drivers can cause various issues. Visit the manufacturer's website and download the latest drivers for your specific graphics card and operating system.
    • Check for any physical damage or loose connections. Ensure that the graphics card is securely inserted into the PCIe slot and that all power connectors are properly attached. Reseating the card may also help resolve connection-related issues.
    • If you're experiencing overheating issues, check your graphics card's temperature. Use software utilities like MSI Afterburner or GPU-Z to monitor the temperature while your system is under load. If the temperature exceeds safe levels, ensure that the fans on your graphics card are functioning correctly and consider improving your system's cooling with additional case fans or a better heatsink.
    • Reset your graphics card's settings to their default values. The driver control panel for your graphics card allows you to reset settings to their default state or restore factory settings. Doing so can resolve conflicts or improper configurations.

    If you still experience issues after troubleshooting, consult the manufacturer's support resources or seek assistance from professional technicians.

    By understanding how to connect a graphics card and effectively troubleshooting potential issues, you'll optimize the performance and reliability of your graphics card setup.





    Connecting a Graphics Card

    If you want to enhance your computer's graphics performance, adding a graphics card is a great option. Connecting a graphics card is a relatively straightforward process. Here are the steps to follow:

    • Start by turning off your computer and disconnecting the power cord.
    • Open the computer case to access the motherboard.
    • Identify the appropriate slot for your graphics card. It is usually a PCI Express (PCIe) slot.
    • Gently push down the lever on the slot to open it.
    • Align the graphics card with the slot and carefully insert it. Apply firm, even pressure until it is fully seated.
    • Secure the graphics card by fastening the screw provided on the bracket or using an additional support bracket if necessary.
    • Connect the power supply cables to the graphics card, if required.
    • Close the computer case and reconnect the power cord.
    • Turn on your computer and install the necessary drivers for the graphics card.
    • Once the drivers are installed, your graphics card is ready to use!



    Key Takeaways - How to Connect Graphics Card

    • Ensure you have the correct type of graphics card for your computer.
    • Power down your computer and unplug it from the power source before installing the graphics card.
    • Locate an available PCI Express slot on your motherboard and remove the corresponding metal cover.
    • Align the graphics card with the slot and gently push it into place until it is fully seated.
    • Secure the graphics card to the case using screws or other fasteners.



    Frequently Asked Questions

    Are you looking to connect your graphics card but not sure how to do it? Don't worry, we've got you covered! Here are some frequently asked questions about connecting graphics cards.

    1. Can I connect a graphics card to any computer?

    Not all computers are compatible with graphics cards. To connect a graphics card, you need to have a motherboard with an available PCIe x16 slot. Additionally, you will need to ensure that your power supply can meet the power requirements of the graphics card. It's always a good idea to check the specifications of your computer before purchasing a graphics card.

    Once you have confirmed compatibility, you can connect the graphics card to the PCIe x16 slot on your motherboard. Make sure to secure it properly using the screws provided. Finally, connect the necessary power cables to the graphics card and you're good to go!

    2. How do I connect the power cables to my graphics card?

    Most modern graphics cards require additional power apart from what they receive from the PCIe slot. To connect the power cables, locate the appropriate power connectors on your graphics card. These are usually located on the side of the card. Consult the graphics card's manual if you're unsure.

    Once you've located the power connectors, connect the corresponding power cables from your power supply. Most graphics cards use either 6-pin or 8-pin PCIe power connectors. Make sure the connectors are fully seated and securely connected. After connecting the power cables, your graphics card should receive sufficient power to function properly.

    3. Do I need to install drivers for my graphics card?

    Yes, it is essential to install the appropriate drivers for your graphics card. Drivers allow your operating system to communicate with the graphics card and utilize its full potential. Without the drivers, your graphics card may not work correctly, and you may experience performance issues.

    Most drivers can be downloaded from the graphics card manufacturer's website. Make sure to select the correct driver for your specific graphics card model and operating system. Once the driver is downloaded, follow the installation instructions provided by the manufacturer to install it properly.

    4. Can I connect multiple graphics cards to my computer?

    Yes, it is possible to connect multiple graphics cards to your computer. This setup, known as multi-GPU or SLI/Crossfire, can provide increased graphics processing power. However, not all motherboards and power supplies support multi-GPU configurations.

    If you want to connect multiple graphics cards, make sure your motherboard has enough PCIe x16 slots to accommodate them. Additionally, your power supply should have sufficient wattage and the necessary power connectors to support multiple graphics cards.

    5. Are there any precautions I should take when connecting a graphics card?

    When connecting a graphics card, it's important to take a few precautions:

    1. Ensure your computer is powered off and unplugged before installing the graphics card. This prevents any potential electrical damage.

    2. Handle the graphics card with care, holding it by the edges and avoiding touching any sensitive components or connector pins.

    3. Ground yourself by touching a grounded metal object before handling the graphics card. This helps to prevent any static electricity discharge that could damage the components.

    By following these precautions, you can safely and effectively connect your graphics card without any issues.






    To connect a graphics card, follow these steps:

    First, make sure your computer is powered off and unplugged. Open the computer case and locate the PCIe slot on the motherboard. Remove the metal cover from the slot to expose the connector. Then, align the graphics card with the slot and gently insert it until it is firmly seated. Secure the card with the screw or latch provided.

    Next, connect the power cable from the power supply unit to the graphics card. This cable will typically be a 6-pin or 8-pin connector that fits into the corresponding port on the card. Ensure that it is securely connected. Finally, close the computer case and connect the monitor to the graphics card using the appropriate video cable.

    Once everything is connected, you can power on your computer and install the necessary drivers for the graphics card. This can usually be done by downloading the drivers from the manufacturer's website and following the installation instructions. With the graphics card properly connected and drivers installed, you can now enjoy enhanced graphics performance on your computer.
