How Are CPU Credits Used In EC2 T2 Instances

When it comes to EC2 T2 instances, understanding how CPU credits are utilized is crucial for optimizing performance and managing costs. In these instances, CPU credits play a vital role in determining the available CPU resources for your workload.

EC2 T2 instances provide a baseline level of CPU performance along with the ability to burst above that baseline when additional CPU power is needed. This burstability is facilitated through CPU credits, which accumulate when the workload is below the baseline and deplete when the workload exceeds the baseline.

Understanding CPU Credits in EC2 T2 Instances

In Amazon Elastic Compute Cloud (EC2), T2 instances are a popular choice for many users due to their cost-efficiency and burstable performance capabilities. The key feature that enables this burstable performance is the concept of CPU credits. CPU credits are virtual tokens that determine the amount of CPU resources available to an EC2 T2 instance. In this article, we will explore how CPU credits are used in EC2 T2 instances and their significance in managing compute workloads effectively.

How Are CPU Credits Earned?

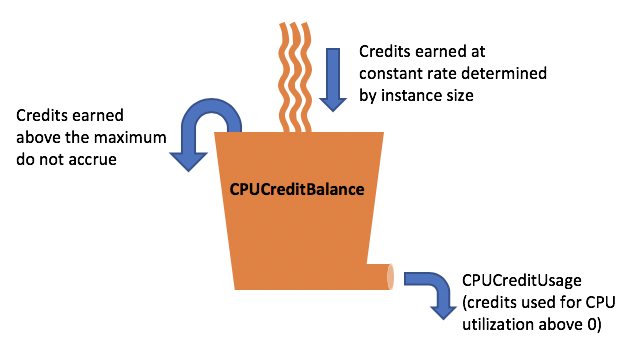

In EC2 T2 instances, CPU credits are earned over time when the instance operates below its baseline performance. Each instance accrues CPU credits at a specific rate depending on its size. The larger the instance, the faster it earns credits. The rate at which CPU credits are earned is referred to as the CPU credit earning rate. The CPU credit balance of an instance is the total number of credits it has earned over time.

When an instance is running below its baseline performance, it accumulates CPU credits into its credit balance, up to a maximum limit defined by the instance size and its burstable performance characteristics. The rate at which credits are earned is higher when the instance is idle or running low CPU utilization, and lower when it becomes more active. This accumulation of CPU credits allows the instance to save up credits during periods of low activity to later utilize for burstable performance when needed.

It's important to note that CPU credits have a time-based validity period. In the case of T2 instances, credits can be stored for a maximum of 24 hours. If the unused credits are not utilized within this period, they expire and cannot be used anymore.

How Are CPU Credits Consumed?

As mentioned earlier, CPU credits are utilized by EC2 T2 instances for burstable performance. When an instance requires more CPU resources than its baseline performance, it consumes CPU credits to compensate for the additional demand. The rate at which credits are consumed is referred to as the CPU credit consumption rate.

The consumption of CPU credits is directly tied to the instance's CPU utilization. As long as the instance's CPU utilization remains below its baseline, it operates using its earned CPU credits without any additional cost. However, if the instance's CPU utilization exceeds its baseline, it will start consuming CPU credits from its balance.

If the instance has insufficient CPU credits to meet the increased demand, its CPU performance will gradually be throttled down, resulting in slower processing speeds. In such cases, it's essential to monitor the CPU credit balance and adjust the instance type or optimize the workload to ensure consistent performance.

Managing CPU Credits and Burst Performance

Effectively managing CPU credits in EC2 T2 instances is crucial to ensure consistent performance and avoid performance degradation. Here are some strategies for efficient management:

• Monitor CPU Credit Balance: Regularly monitor the CPU credit balance of your instances to ensure they have sufficient credits available to meet the workload demands.
• Optimize Workload: If your workload consistently utilizes high CPU resources and exhausts the CPU credit balance, consider upgrading to a larger instance size or switching to a different instance family that better suits your requirements.
• Scheduled Shutdowns: Consider implementing scheduled shutdowns during periods of low activity to allow your instances to accumulate CPU credits for burstable performance during peak usage hours.
• Auto Scaling: Utilize Auto Scaling groups to automatically adjust the number of instances running in your application based on the CPU utilization and demand. This helps ensure that the workload is evenly distributed across multiple instances and reduces the chance of CPU credit depletion.

Monitoring CPU Credit Usage

Amazon CloudWatch provides a range of metrics to monitor CPU credit usage and performance. By utilizing CloudWatch, you can track the CPU credit balance, CPU utilization, and other relevant metrics for your EC2 T2 instances. This data will enable you to make informed decisions regarding instance sizing and workload optimization.

Additionally, CloudWatch alarms can be configured to send notifications when the CPU credit balance falls below a certain threshold, allowing you to take proactive measures to avoid performance degradation.

Understanding Burst Performance

The burst performance of EC2 T2 instances allows them to utilize their CPU credits for short periods, even if their baseline performance is lower than the workload demand. This burstable behavior is useful for workloads with occasional or unpredictable spikes in CPU utilization. However, it's important to note that sustained high CPU utilization will deplete the CPU credit balance, impacting performance.

To fully utilize the burstable performance, it's recommended to size the instance appropriately and design workloads that can take advantage of the burstable CPU credits.

Best Practices for CPU Credit Management

Here are some best practices to effectively manage CPU credits in EC2 T2 instances:

• Understand Workload Patterns: Analyze your application's CPU utilization patterns to determine the most suitable instance type and size for your workload.
• Monitor Regularly: Regularly monitor the CPU credit balance and utilization metrics using CloudWatch to detect any potential performance issues.
• Optimize as Needed: If your workload consistently exceeds the instance's baseline performance, consider upsizing the instance type or optimizing the application itself to reduce CPU demands.

Benefits and Limitations of CPU Credits

CPU credits bring several benefits to EC2 T2 instances, including:

• Cost-Efficient: The burstable performance feature allows instances to run below the baseline without incurring extra costs, making T2 instances cost-effective for many workloads.
• Burstable Performance: The ability to utilize CPU credits for burstable performance ensures that instances can handle sudden spikes in workload demand effectively.

However, it's important to be aware of the limitations of CPU credits in EC2 T2 instances:

• CPU Credit Balance: The limited CPU credit balance means that sustained high CPU utilization can deplete the credits and result in degraded performance.
• Baseline Performance: The baseline performance of T2 instances may not be sufficient for applications with consistent high CPU demand.

Understanding these benefits and limitations helps in making informed decisions while choosing T2 instances and managing workload demands.

In conclusion, CPU credits play a crucial role in determining the performance of EC2 T2 instances. By earning, consuming, and managing CPU credits effectively, users can optimize their workloads, achieve burstable performance, and make the most of the cost-efficiency offered by T2 instances.

Understanding CPU Credits in EC2 T2 Instances

In EC2 T2 instances, CPU credits are a key concept that determines the CPU performance of your instances. These credits are a way of measuring the computing power available to the instance. One CPU credit is equivalent to one vCPU (virtual CPU) running at 100% utilization for one minute. You can accumulate CPU credits when your instance operates below its baseline performance level or bursts above it, and the credits can be used when your instance needs more CPU power.

The amount of CPU credits you earn and spend depends on your instance size and the time-varying performance of your workload. T2 instances have a baseline performance level and a burst performance level. The baseline performance represents the sustainable performance of the instance, while the burst performance allows the instance to temporarily increase its CPU performance when it needs more processing power.

It's important to monitor your CPU credits because if you exhaust your accumulated credits, your CPU performance will drop significantly. If your workload consistently operates above the baseline performance, it may be more cost-effective to consider using a larger instance type or utilizing instances with higher baseline performance, such as T3 instances.

Frequently Asked Questions

In this section, we will answer some common questions about how CPU credits are used in EC2 T2 instances.

1. What are CPU credits?

CPU credits are a measurement of the CPU utilization of an EC2 instance. Each T2 instance receives CPU credits continuously at a specific rate, depending on the instance size. These credits can be accumulated and used to burst beyond the baseline performance.

When the instance is using less CPU than its baseline, it accumulates credits. These credits can then be utilized during periods of high CPU usage to maintain performance. Unused credits can be stored for up to 24 hours.

2. How are CPU credits used in EC2 T2 instances?

When a T2 instance exceeds its baseline performance, it consumes CPU credits to sustain the higher CPU utilization. If the instance runs out of accumulated credits, the performance is capped at the baseline level until more credits are accumulated or earned.

If the instance consistently exceeds the baseline performance for an extended period, it may be more cost-effective to consider using a different instance type that provides higher baseline performance, such as the T3 or M5 instance types.

3. How are CPU credits earned?

CPU credits are earned by the instance when it operates below the baseline performance level. The rate at which credits are earned depends on the size of the instance. The smaller the instance, the faster the accumulation rate.

Earning CPU credits allows the instance to build up credits to be used during periods of high CPU utilization, enabling the instance to burst beyond the baseline performance level temporarily.

4. Can CPU credits be transferred between instances?

No, CPU credits cannot be transferred between instances. Each instance receives its own CPU credit allocation based on its size and operates independently. The earned credits are specific to the instance and cannot be shared or transferred.

5. How can I monitor and manage CPU credits in my EC2 instances?

You can monitor the CPU credits of your EC2 instances using CloudWatch. By viewing the CPU credit balance metric, you can determine when your instances are running low on credits and may need to be upgraded or have their workload adjusted.

To manage CPU credits effectively, it is important to analyze your instance's CPU usage patterns and determine if it consistently exceeds the baseline performance. If so, you might consider upgrading to a different instance type that provides higher baseline performance to ensure optimal performance and cost-efficiency.

In summary, CPU credits are a unique mechanism used in EC2 T2 instances to manage the performance and cost of your virtual machines. These credits are earned when the CPU utilization is below the baseline performance and are consumed when the CPU utilization exceeds the baseline.

By understanding how CPU credits work, you can effectively optimize your instance's performance and cost. Monitoring your CPU credits and utilizing burstable performance wisely will help you ensure that your applications run smoothly without incurring additional costs. Remember, efficient management of CPU credits is key to getting the most out of your T2 instances on AWS.
