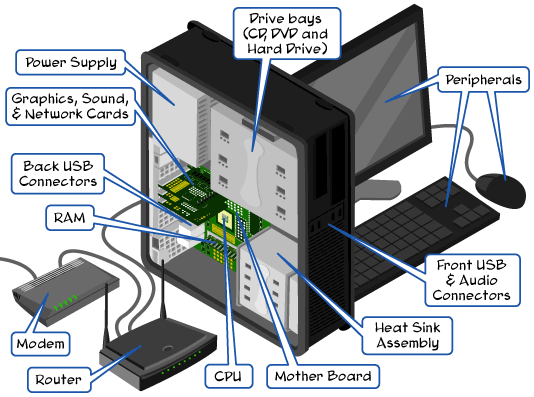

Hardware Components Of A CPU

When it comes to the intricate world of computer hardware, the components of a CPU play a critical role in determining its performance and capabilities. From the mesmerizing complexity of transistors to the power of multicore processors, the hardware inside a CPU is a fascinating blend of innovation and engineering mastery.

The history of CPU hardware components is a testament to the ever-evolving demands of technology. From the humble beginnings of vacuum tubes and punch cards to the modern era of nanoscale transistors, each advancement has paved the way for faster and more efficient computing. Today, CPUs are designed to handle complex algorithms, process vast amounts of data, and deliver immersive gaming experiences.

Understanding the Hardware Components of a CPU

The central processing unit (CPU) is the brain of a computer system, responsible for executing instructions and performing calculations. It consists of several key hardware components that work together to ensure efficient and reliable operation. In this article, we will delve into the various hardware components of a CPU and explore their functions in detail.

1. Control Unit (CU)

The control unit (CU) is one of the primary components of a CPU. Its main role is to direct the flow of data and instructions within the processor. It fetches instructions from memory, decodes them, and then coordinates the execution of these instructions by sending control signals to other components.

The control unit consists of the instruction register (IR), which holds the current instruction being executed, and the program counter (PC), which stores the memory address of the next instruction to be fetched. The CU also contains the arithmetic logic unit (ALU) control unit, which controls the ALU's operation during arithmetic and logical calculations.

Additionally, the control unit is responsible for managing the instruction pipeline, which allows for the overlapping of fetch, decode, and execute stages to maximize efficiency. It ensures the proper sequencing and timing of instructions, enabling the CPU to perform complex computations and execute programs effectively.

The control unit plays a crucial role in the overall performance and functionality of a CPU, as its efficient operation directly impacts the speed and accuracy of instruction execution.

a. Instruction Fetch

During the instruction fetch phase, the control unit retrieves the next instruction from memory based on the value stored in the program counter. It sends a memory request to the memory unit, receives the instruction, and stores it in the instruction register for further processing.

Efficient instruction fetching is crucial for optimal CPU performance. Techniques like branch prediction and prefetching are employed to ensure that the CPU can retrieve and load instructions into the instruction register quickly and accurately.

By fetching instructions in advance and predicting the most likely execution path, the control unit can minimize idle time and keep the CPU busy executing instructions.

b. Instruction Decode

Once an instruction is fetched and stored in the instruction register, the control unit proceeds to decode it. During the instruction decode phase, the control unit determines the type of instruction and the operands it requires.

Decoding involves analyzing the instruction's binary representation and extracting relevant information, such as the operation code (opcode) and memory addresses. This information is crucial for the subsequent execution of the instruction by the CPU.

An efficient instruction decoding process allows the CPU to quickly and accurately identify the operation to be performed and the data it needs to access, enabling smooth execution.

c. Execution Unit

The execution unit is responsible for carrying out arithmetic and logical operations specified by the instructions. It performs calculations, manipulates data, and stores the results in the appropriate registers or memory locations.

The execution unit comprises the arithmetic logic unit (ALU), which performs arithmetic calculations such as addition and multiplication, and the floating-point unit (FPU), which handles more complex operations involving floating-point numbers.

The efficient functioning of the execution unit is crucial for overall CPU performance, as it directly affects the speed and accuracy of calculations and data manipulation.

d. Control Signals

In addition to managing the instruction flow and execution, the control unit generates control signals that regulate the functioning of other CPU components. These control signals synchronize the operation of different units, ensuring proper coordination and timing.

Control signals include signals for data movement, memory access, ALU operations, and input/output operations. They are essential for maintaining the integrity and accuracy of data and instructions within the CPU.

2. Arithmetic Logic Unit (ALU)

The arithmetic logic unit (ALU) is a fundamental component of a CPU responsible for performing arithmetic and logical operations on data. It carries out calculations such as addition, subtraction, multiplication, division, and logical comparisons.

The ALU operates on binary data, manipulating bits and bytes to produce meaningful results. It consists of combinational logic circuits that perform the actual calculations and a set of registers that store operands and results.

The ALU receives input data from the CPU's registers, executes the requested operation, and stores the result in the appropriate register or memory location. It performs these operations based on control signals provided by the control unit.

The ALU's performance, measured in terms of speed and precision, significantly impacts the overall performance of the CPU. CPU designers continuously strive to improve the ALU's efficiency to enhance computational capabilities.

a. Arithmetic Operations

The ALU performs various arithmetic operations, including addition, subtraction, multiplication, and division. It operates on binary numbers represented as bits and carries out calculations on these binary representations.

For addition and subtraction, the ALU uses simple adders or subtractors that can handle binary numbers of varying lengths. For multiplication and division, more complex algorithms and circuits are employed to accomplish the desired operations.

Efficient execution of arithmetic operations is vital for numerous computational tasks, ranging from basic calculations to complex scientific simulations.

b. Logical Operations

Alongside arithmetic operations, the ALU is capable of performing logical operations on binary data. These operations include logical AND, OR, NOT, and XOR, among others.

Logical operations are particularly useful in tasks that involve data manipulation, decision making, and bitwise comparisons. They are essential components of programming constructs and algorithms.

The ALU's logical capabilities enable the CPU to make comparisons, evaluate conditions, and execute branching instructions, thus enabling the execution of complex programs and algorithms.

c. Bitwise Operations

In addition to arithmetic and logical operations, the ALU can also perform bitwise operations on data. Bitwise operations manipulate individual bits within binary numbers, making it possible to modify or extract specific bits for various purposes.

Bitwise operations such as shifting, ANDing, ORing, and XORing are particularly useful in tasks involving data encoding, decoding, compression, and encryption.

The ALU's ability to perform bitwise operations enhances the CPU's versatility and makes it capable of handling complex data manipulation tasks.

3. Registers

Registers are small, high-speed memory units used within a CPU to store data, instructions, and addresses temporarily. They play a crucial role in the execution of instructions, as they provide quick access to frequently used data and facilitate communication between different components.

A typical CPU consists of several types of registers, each serving a specific purpose:

• Instruction Register (IR): Stores the current instruction being executed.
• Program Counter (PC): Holds the memory address of the next instruction to be fetched.
• Stack Pointer (SP): Points to the top address of the stack, used for managing function calls and data storage within the CPU.
• General-Purpose Registers (GPRs): Used for storing temporary data, intermediate results, and operands.
• Status Registers: Store the flags and status information about the CPU's current state.

Registers provide fast access to data, allowing for rapid execution of instructions and efficient communication between the various components of the CPU.

a. Instruction Register (IR)

The instruction register (IR) is a crucial register within the CPU that holds the current instruction being executed. It stores the binary representation of the instruction fetched from memory.

The IR is an essential component of the instruction cycle, as it provides the control unit with the necessary information to decode and execute the instruction accurately.

By holding the instruction in a dedicated register, the CPU can efficiently access and manipulate the necessary data and operands without needing to repeatedly refer back to memory.

b. Program Counter (PC)

The program counter (PC) is a register that stores the memory address of the next instruction to be fetched. It keeps track of the CPU's position within the program or sequence of instructions.

When an instruction is completed, the PC is incremented to point to the next instruction's memory address. This allows for the sequential execution of instructions stored in memory.

The PC is vital for ensuring the CPU's effective and accurate execution of instructions, as it determines the order in which instructions are fetched and executed.

c. Stack Pointer (SP)

The stack pointer (SP) is a register that keeps track of the top address of the stack. The stack is a region of memory used for temporary storage of data, function calls, and return addresses.

When a function call is made, the SP is incremented to allocate space for local variables and function parameters. As functions complete their execution, the SP is decremented to deallocate the stack space used by the function.

The SP enables efficient management of memory and facilitates the organization and storage of data within the CPU.

d. General-Purpose Registers (GPRs)

General-purpose registers (GPRs) are registers that can store temporary data, intermediate results, and operands during program execution. They are accessible by the CPU's arithmetic logic unit (ALU) for carrying out calculations and manipulations.

The number and size of GPRs vary depending on the CPU architecture. They provide high-speed storage for frequently used data, reducing the need to access memory repeatedly.

GPRs enhance the CPU's performance by enabling quick access to data and minimizing the latency associated with memory access.

e. Status Registers

Status registers store various flag bits and status information about the CPU's current state. They provide essential information for program execution and help monitor and manage the CPU's behavior and operation.

The status registers include flags that indicate conditions such as carry, overflow, zero, and sign, which are important for various arithmetic and logical operations.

Additionally, status registers may contain special-purpose bits that control specific CPU modes or features, such as interrupt enable/disable flags, privilege levels, or error detection mechanisms.

4. Cache Memory

Cache memory is a small, high-speed memory integrated within the CPU or located close to it. It serves as a buffer between the CPU and main memory (RAM), providing faster access to frequently used instructions and data.

The cache memory operates on the principle of locality, which states that programs tend to access a relatively small portion of memory repeatedly, both spatially (nearby locations) and temporally (recently accessed locations).

Cache memory consists of multiple levels, typically L1, L2, and sometimes L3 caches. Each level has its own capacity, speed, and proximity to the CPU.

By storing frequently used instructions and data closer to the CPU, cache memory reduces the time required to fetch data from main memory, thus accelerating the overall execution of programs.

a. L1 Cache

The L1 cache, often divided into separate instruction and data caches (L1i and L1d), is the closest and fastest cache to the CPU. It holds a small but essential subset of instructions and data currently being used by the CPU.

Accessing data from the L1 cache is significantly faster compared to accessing data from the main memory, as it requires fewer clock cycles.

The L1 cache operates at the same clock speed as the CPU, ensuring minimal latency in fetching instructions and data needed for immediate execution.

b.

Components of a CPU

A Central Processing Unit (CPU) is the brain of a computer system. It carries out instructions and performs calculations to execute tasks. The CPU consists of several hardware components that work together to enable the computer to function efficiently.

The key hardware components of a CPU include:

• Control Unit (CU): This component controls the flow of data and instructions within the CPU and between other computer components.
• Arithmetic Logic Unit (ALU): The ALU performs mathematical calculations and logical operations, such as addition, subtraction, and comparison.
• Registers: These are small, high-speed memory units that store instructions, data, and intermediate results during processing.
• Cache: The CPU cache is a small amount of fast memory that stores frequently accessed instructions and data, reducing the need to access the slower main memory.
• Bus: The bus is a set of wires that enables communication between the CPU and other components, such as memory, storage devices, and input/output devices.

These components work together to ensure the smooth operation of a CPU and the overall functioning of a computer system.

###

Frequently Asked Questions

Here are some commonly asked questions about the hardware components of a CPU:

1. What are the main hardware components of a CPU?

The main hardware components of a CPU are:

• Central Processing Unit (CPU): This is the brain of the computer and performs all the calculations and processing tasks.
• Arithmetic Logic Unit (ALU): This component is responsible for performing arithmetic and logical operations.
• Control Unit (CU): The control unit manages the execution of instructions and controls the flow of data within the CPU.
• Registers: These are small memory units inside the CPU that store data and instructions currently being used.
• Cache: The cache is a small, high-speed memory that stores frequently accessed data and instructions to help improve CPU performance.

2. How does the Central Processing Unit (CPU) work?

The Central Processing Unit (CPU) works by performing three main functions:

First, it fetches instructions from the computer's memory, which specify what operations need to be performed. These instructions are then decoded by the CPU to understand what needs to be done.

Next, the CPU executes the instructions by performing the necessary calculations and operations using its components, such as the Arithmetic Logic Unit (ALU).

Finally, the CPU writes the results of the executed instructions back to the computer's memory for storage or further processing.

3. What is the purpose of the Arithmetic Logic Unit (ALU) in a CPU?

The Arithmetic Logic Unit (ALU) is responsible for performing arithmetic and logical operations. It can perform calculations such as addition, subtraction, multiplication, and division, as well as logical operations like AND, OR, and NOT.

The ALU is a critical component of the CPU as it carries out the actual computations required by the instructions given to the computer.

4. How does the Control Unit (CU) manage the execution of instructions in a CPU?

The Control Unit (CU) is responsible for managing the execution of instructions in a CPU. It performs the following tasks:

• Fetches the instructions from the computer's memory.
• Decodes the instructions to understand what needs to be done.
• Controls the flow of data between different components of the CPU.
• Coordinates the execution of instructions by sending control signals to the appropriate components.
• Ensures that instructions are executed in the correct order and that the necessary data is available for processing.

5. What is the role of registers and cache in a CPU?

Registers and cache play important roles in the functioning of a CPU:

Registers are small, high-speed memory units located inside the CPU. They are used to store data and instructions that are currently being used by the CPU. Registers provide fast access to these frequently accessed data, reducing the need to access the computer's main memory and improving overall performance.

Cache, on the other hand, is a small but faster memory that sits between the CPU and the computer's main memory. Cache stores copies of frequently accessed data and instructions, allowing the CPU to quickly retrieve them when needed. This helps reduce the time it takes to access data from the main memory, further improving CPU performance.

To sum up, the CPU, or Central Processing Unit, is the brain of the computer. It consists of several hardware components that work together to execute instructions and perform calculations. These components include the control unit, the arithmetic logic unit, the registers, and the cache memory.

The control unit manages and coordinates the execution of instructions, while the arithmetic logic unit performs mathematical and logical operations. The registers store data and instructions temporarily, and the cache memory helps speed up data retrieval. All these components play a crucial role in ensuring the smooth functioning of the CPU and overall performance of the computer.
