Graphics Card Two Power Connectors
When it comes to powering high-performance graphics cards, two power connectors are often better than one. These connectors provide the necessary electrical power to drive the card and ensure optimal performance. With the increasing demand for more power-hungry GPUs, the use of two power connectors has become a standard feature in many modern graphics cards. This configuration allows for greater stability and reliability, especially during intense gaming or graphic-intensive tasks.
Graphics card two power connectors offer a range of benefits and capabilities. Not only do they provide the necessary power to drive the card, but they also ensure a stable power supply, minimizing the risk of system crashes or instability. This is crucial for gamers and professionals who rely on their graphics card for demanding applications such as video editing, 3D rendering, or virtual reality. Furthermore, the use of two power connectors allows for better overclocking potential, enabling users to push their graphics cards to higher clock speeds for improved performance. With the ever-increasing demands of modern graphics-intensive applications, two power connectors have become a vital component in high-end gaming rigs and professional workstations.

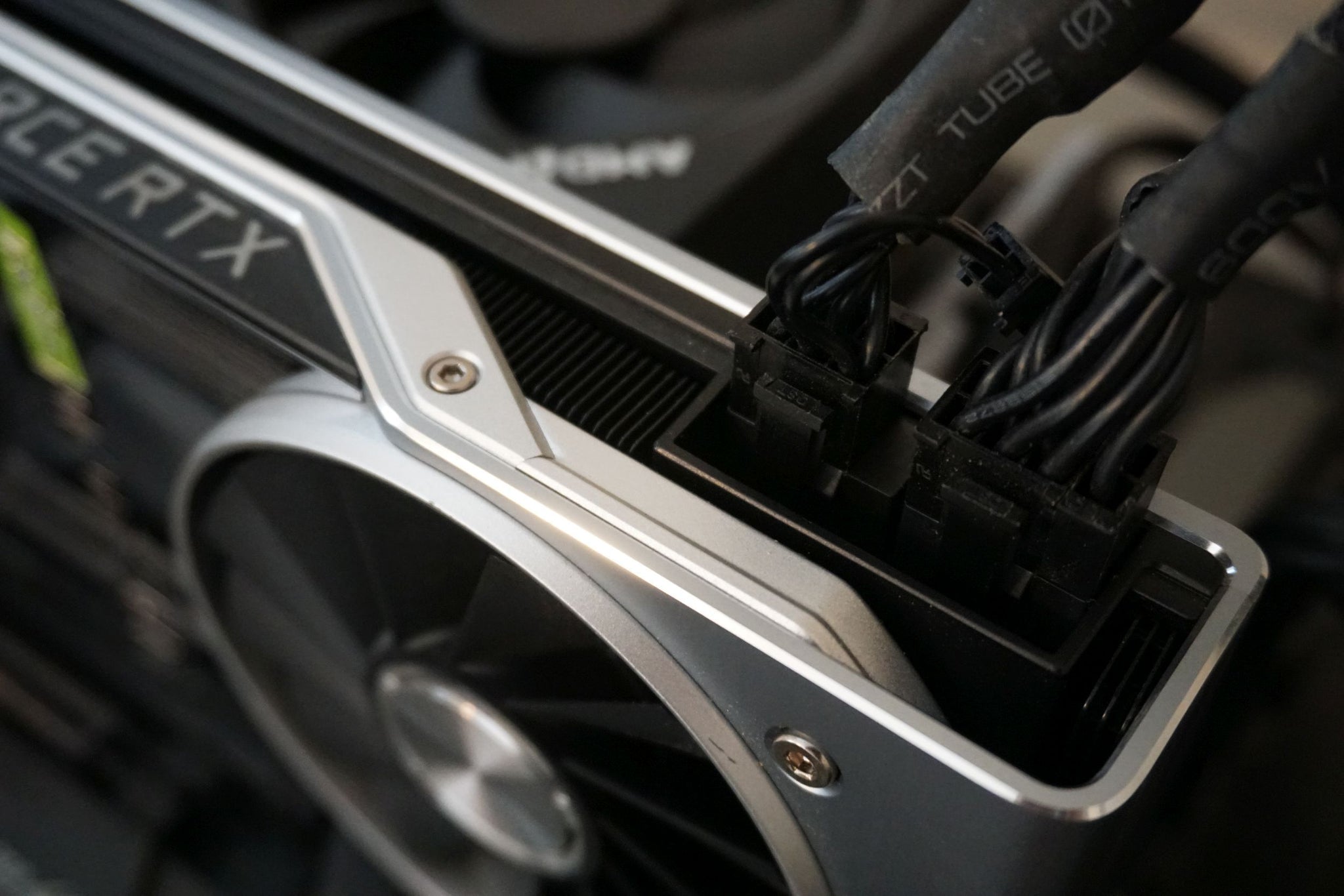

A graphics card with two power connectors provides increased power delivery and stability for high-performance gaming and graphics-intensive tasks. By connecting two power cables directly to the graphics card, it ensures that the card receives the necessary power it needs to perform at its best. This configuration also helps prevent voltage drops and minimize power fluctuations, resulting in smoother gameplay and improved graphics rendering. Whether you're a professional gamer or a graphic designer, a graphics card with two power connectors is essential for achieving optimal performance and maximizing your productivity.
Understanding Graphics Card Two Power Connectors
Graphics cards are an essential component of modern gaming and professional workstations. They are responsible for rendering high-quality graphics and accelerating complex calculations. To function optimally, graphics cards require sufficient power supply. Graphics card two power connectors provide the necessary power for the card to operate efficiently and deliver the best performance.
Types of Graphics Card Power Connectors
Graphics cards generally require either one or two power connectors, depending on their power consumption and design. The most common types of power connectors used in graphics cards are the 6-pin and 8-pin connectors. These connectors provide a direct link between the power supply unit (PSU) and the graphics card, ensuring a stable and reliable power source.
The 6-pin connector consists of six pins arranged in a 3x2 configuration. It provides a maximum power output of 75 watts. On the other hand, the 8-pin connector, also known as the 6+2 pin connector, features eight pins arranged in a 4x2 configuration. It supplies a maximum power of 150 watts. The additional two pins on the 8-pin connector can be detached, allowing it to be used as a 6-pin connector when necessary.
Some high-end graphics cards may require two 8-pin connectors to ensure sufficient power delivery. These cards are designed to handle heavy workloads and demanding graphics processing requirements. Dual 8-pin connectors offer a maximum power output of 300 watts, providing the necessary power reserve for overclocking and running intensive applications seamlessly.
Power Consumption and Graphics Card Performance
The power consumption of a graphics card has a direct impact on its performance. With higher power input, the graphics card can handle more demanding tasks, achieve higher clock speeds, and sustain peak performance for extended periods. Graphics cards with dual power connectors are generally more powerful and suited for resource-intensive applications such as gaming, video editing, and 3D rendering.
Having two power connectors allows the graphics card to have a more stable and efficient power supply, reducing the chances of power-related issues such as voltage drops or overheating. This stability results in smoother gameplay, better frame rates, and improved overall performance.
It's important to note that the power consumption of a graphics card varies depending on its model and specifications. Before purchasing a graphics card, it's crucial to ensure that your power supply unit can provide sufficient power through the required power connectors.
Power Supply Considerations
When selecting a power supply unit for a graphics card with two power connectors, it's essential to consider the wattage and the efficiency rating of the power supply. The wattage should be able to meet the power requirements of the graphics card, including any potential overclocking or future upgrades.
Additionally, the efficiency rating provides an indication of how power-efficient the power supply unit is. Higher efficiency ratings, such as 80 Plus Gold or Platinum, indicate that the power supply can convert a higher percentage of input power into usable output power, minimizing energy wastage and reducing heat generation.
- Check the power requirements of the graphics card and ensure the power supply can meet those requirements.
- Consider investing in a power supply with higher wattage to accommodate future upgrades or overclocking.
- Choose a power supply with a high efficiency rating to maximize energy utilization and reduce heat generation.
- Ensure that the power supply has the necessary connectors to accommodate the graphics card's power requirements, including the appropriate number of 8-pin or 6-pin connectors.
Safe Installation and Troubleshooting
Proper installation of the graphics card and power connectors is crucial for optimal performance and safe operation. Here are some key points to consider during installation:
- Make sure the computer is fully powered off and disconnected from the power source before installing the graphics card.
- Identify the appropriate power connectors on the graphics card and ensure they are securely connected to the corresponding connectors on the power supply unit.
- Double-check that the power connectors are fully inserted and locked in place to avoid accidental disconnection during operation.
If you encounter any power-related issues, such as system instability or unexpected shutdowns, consider the following troubleshooting steps:
- Ensure that the power connectors are properly connected and seated firmly in their respective ports.
- Verify that the power supply unit is providing sufficient power to the graphics card.
- Check for any loose connections or damaged power cables and replace them if necessary.
Expanding Power Delivery for Enhanced Graphics Performance
For enthusiasts looking to push their graphics card to the absolute limit, there are additional options available to further enhance power delivery. Some high-end graphics cards come with built-in options for connecting external power supply units directly to the graphics card.
Graphics Card Power Expansion Ports
Graphics cards equipped with power expansion ports allow users to connect an external power supply unit solely dedicated to the graphics card. These expansion ports may come in the form of additional 8-pin or 6-pin connectors or proprietary connectors designed specifically for this purpose.
By connecting an external power supply unit, graphics cards can draw power from two separate power sources simultaneously, unlocking even greater power delivery and potential overclocking headroom. This setup is particularly useful for extreme overclocking scenarios or running multiple graphics cards in a multi-GPU configuration.
Considerations for External Power Supply Units
When utilizing an external power supply unit for graphics card power expansion, it's crucial to ensure compatibility and safety. Consider the following:
- Choose an external power supply unit with a wattage and efficiency rating suitable for the graphics card's power requirements.
- Make sure the external power supply unit is compatible with the graphics card's power expansion ports.
- Ensure that both the internal power supply unit and the external power supply unit are properly grounded to prevent electrical hazards.
By expanding power delivery through external power supply units, users can unleash the full potential of their graphics cards for extreme gaming, virtual reality experiences, or complex rendering tasks.
Graphics card two power connectors play a vital role in delivering the necessary power for optimal performance. Whether it's using the standard 6-pin and 8-pin connectors or utilizing additional power expansion options, understanding and properly utilizing power connectors can significantly enhance the capabilities of a graphics card. It's essential to consider the power consumption, power supply requirements, and safe installation practices to ensure a seamless and reliable computing experience.
Understanding Graphics Cards with Two Power Connectors
Graphics cards are essential components of modern computers, especially for gaming or intensive graphic design tasks. Many high-performance graphics cards require additional power beyond what the PCIe slot can provide. This is why they come equipped with two power connectors. These connectors, usually in the form of 6 or 8-pin connectors, ensure that the graphics card receives the necessary power to operate at its optimal performance.
The use of two power connectors allows for greater stability and power delivery to the graphics card, enabling it to handle demanding tasks without overheating or experiencing power-related issues. It is important to note that not all graphics cards require two power connectors, as lower-end or less power-hungry models may only require a single power connector.
When installing a graphics card with two power connectors, it is crucial to check the power supply unit (PSU) to ensure it can provide enough power to support the graphics card's requirements. Additionally, it is recommended to use separate power cables for each connector, rather than using adapters or daisy-chaining, to ensure optimal power distribution.
Key Takeaways for "Graphics Card Two Power Connectors"
- Graphics cards with two power connectors provide extra power for optimal performance.
- The power connectors on a graphics card are usually PCI-E 6-pin or 8-pin connectors.
- Using both power connectors is important for high-end graphics cards.
- Not all graphics cards require two power connectors, so check the specifications.
- Make sure your power supply has enough wattage to support a graphics card with two power connectors.
Frequently Asked Questions
In this section, we will address some common questions related to graphics card two power connectors.
1. What are the two power connectors on a graphics card?
The two power connectors on a graphics card are the PCIe power connectors. These connectors provide additional power to the graphics card to ensure it receives enough power for optimal performance.
Most modern graphics cards require two power connectors, usually in the form of 6-pin or 8-pin connectors. These connectors are typically located on the edge of the graphics card and are designed to fit into corresponding connectors on the power supply unit (PSU).
2. Why does a graphics card need two power connectors?
A graphics card needs two power connectors for several reasons. Firstly, high-end graphics cards require a significant amount of power to function properly. The power supplied through the motherboard alone may not be sufficient, especially during intense gaming or rendering tasks.
Secondly, using two power connectors allows for better power distribution and reduces the load on each individual connector. This helps prevent power delivery issues, ensures stable performance, and avoids potential damage to the graphics card or the power supply unit.
3. How do I connect my power supply to my graphics card?
To connect your power supply to your graphics card, follow these steps:
- Ensure that your power supply unit has the necessary PCIe power connectors available.
- Locate the PCIe power connectors on your graphics card.
- Connect the corresponding PCIe power connectors from the power supply to the graphics card.
- Ensure that the connectors are securely inserted and properly aligned.
- Double-check the connections and make sure they are snug.
4. What happens if I don't connect both power connectors to my graphics card?
If you don't connect both power connectors to your graphics card, it may not receive sufficient power to function properly. This can result in performance issues, graphical glitches, or even system instability.
In some cases, the graphics card may not work at all or may not be detected by the system. It's important to ensure that both power connectors are properly connected to avoid any potential problems.
5. Can I use adapters to connect the power supply to my graphics card if I don't have the required connectors?
While it is possible to use adapters to connect the power supply to your graphics card if you don't have the required connectors, it is generally not recommended. Adapters may introduce additional points of failure and can potentially compromise the stability and performance of your graphics card.
If your power supply does not have the necessary connectors, it is advisable to upgrade to a power supply that can provide the required power for your graphics card.
In summary, graphics cards that require two power connectors are typically high-performance cards that require additional power to function optimally. These power connectors, usually in the form of 6-pin or 8-pin connectors, ensure that the graphics card receives sufficient power to deliver smooth and efficient performance.
When installing a graphics card that has two power connectors, it's essential to make sure your power supply unit (PSU) can provide enough power to support the card's requirements. Additionally, be sure to connect both power connectors securely to avoid any stability or performance issues.
