Ez Debug Led CPU Not Detected

Ez Debug LED CPU not detected is a common issue faced by many computer users. It can be frustrating when your computer fails to recognize the CPU, leaving you unable to power on your system and perform important tasks. This issue can disrupt your workflow and cause inconvenience, leading you to search for solutions to fix this problem.

Ez Debug LED CPU not detected can occur due to various reasons, such as a loose CPU connection, incompatible hardware, or even a faulty CPU. This problem is not limited to a specific brand or model of computers and can affect both desktop and laptop systems. To resolve this issue, it is important to troubleshoot and identify the root cause, whether it's a hardware issue or a software-related issue. By addressing the problem effectively, you can ensure the proper functioning of your computer and avoid any further disruptions.

Understanding Ez Debug Led CPU Not Detected

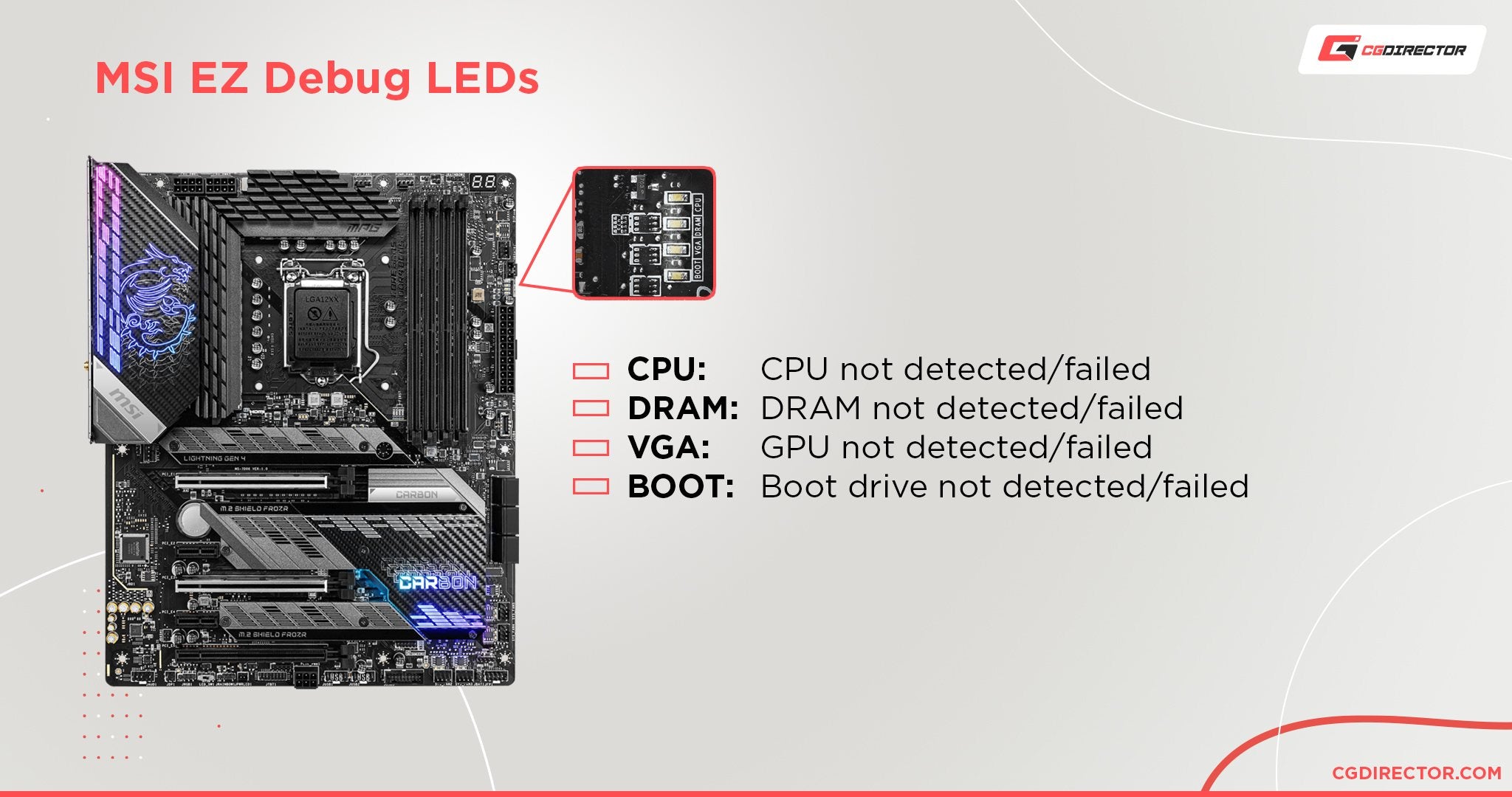

Ez Debug Led is a feature found on many modern motherboards that helps users troubleshoot hardware issues by indicating specific error codes through LEDs. One common error code that users may encounter is the "CPU Not Detected" message. This error typically occurs when the CPU is not properly installed or there is a compatibility issue between the CPU and the motherboard. In this article, we will explore the possible causes and solutions for the Ez Debug Led CPU Not Detected error.

1. Incorrect CPU Installation

One of the primary reasons behind the Ez Debug Led CPU Not Detected error is incorrect CPU installation. If the CPU is not seated properly in the socket, the motherboard will not be able to detect it. To resolve this issue, follow the steps below:

• Power off the system and unplug the power cable.
• Remove the CPU cooler if it is already installed.
• Gently lift the CPU retention bracket to release the CPU socket.
• Carefully place the CPU into the socket, aligning the notches or arrow marks on the CPU and socket.
• Press the CPU down firmly but gently until it is fully seated.
• Close the CPU retention bracket to secure the CPU in place.
• Reinstall the CPU cooler.
• Plug in the power cable and power on the system.

If the CPU was not properly seated, this should resolve the Ez Debug Led CPU Not Detected error. However, if the issue persists, further troubleshooting may be required.

1.1. Bent CPU Pins

Bent CPU pins can also lead to the Ez Debug Led CPU Not Detected error. When installing or removing a CPU, it is essential to handle it carefully and avoid putting any pressure on the pins. If you suspect that the CPU pins are bent, follow these steps to check and potentially fix the issue:

• Power off the system and unplug the power cable.
• Remove the CPU cooler and carefully lift the CPU from the socket.
• Inspect the pins on both the CPU and the socket for any signs of damage.
• If you find any bent pins, use a mechanical pencil with an eraser or a fine-tip tweezer to gently straighten them.
• Once the pins are straightened, carefully place the CPU back into the socket and ensure it is properly seated.
• Reinstall the CPU cooler.
• Plug in the power cable and power on the system.

If the issue was caused by bent CPU pins, this should fix the Ez Debug Led CPU Not Detected error. However, if the problem persists, it is important to consider other potential causes.

1.2. Incompatible CPU and Motherboard

Another possible cause of the Ez Debug Led CPU Not Detected error is an incompatible CPU and motherboard combination. Different CPUs have specific compatibility requirements with motherboards, such as socket type, chipset compatibility, and BIOS compatibility. If the CPU you are using does not meet the compatibility requirements of your motherboard, it will fail to detect the CPU.

To ensure compatibility between your CPU and motherboard, refer to the motherboard's user manual or manufacturer's website for a compatible CPU list. Additionally, it is crucial to keep the motherboard's BIOS up to date, as BIOS updates often include CPU compatibility improvements.

If you have confirmed that the CPU and motherboard are incompatible, you may need to replace either the CPU or the motherboard to resolve the Ez Debug Led CPU Not Detected error.

2. Faulty CPU or Motherboard

In some cases, the Ez Debug Led CPU Not Detected error may be caused by a faulty CPU or motherboard. Hardware components can fail due to various reasons, including manufacturing defects, physical damage, or wear and tear over time.

To determine whether the CPU or motherboard is faulty, you can try the following steps:

• Test the CPU on a different compatible motherboard if available.
• Test a different compatible CPU on the same motherboard.
• If the CPU works on a different motherboard or a different CPU works on the same motherboard, it indicates that the faulty component is the CPU or motherboard, respectively.
• Contact the manufacturer's support or consider consulting a professional for further assistance and potential replacement.

In cases of a faulty component, replacing the CPU or motherboard is often the best solution to resolve the Ez Debug Led CPU Not Detected error.

2.1. CPU Cooler Connection

The CPU cooler plays a vital role in keeping the CPU cool during operation. If the CPU cooler is not properly connected, it can cause the CPU temperature to rise rapidly, leading to the Ez Debug Led CPU Not Detected error.

To ensure the CPU cooler is properly connected:

• Power off the system and unplug the power cable.
• Remove the CPU cooler.
• Clean the thermal paste from the CPU and cooler using isopropyl alcohol.
• Apply a thin layer of thermal paste on the center of the CPU.
• Reinstall the CPU cooler, making sure it is securely attached to the CPU socket.
• Plug in the power cable and power on the system.

Ensuring a proper connection between the CPU and the CPU cooler can help resolve the Ez Debug Led CPU Not Detected error and prevent potential CPU overheating issues.

2.2. BIOS Settings

Incorrect BIOS settings can sometimes result in the Ez Debug Led CPU Not Detected error. The BIOS controls various settings related to hardware detection and initialization, including CPU detection.

To access the BIOS settings:

• Power off the system and unplug the power cable.
• Press the designated key (e.g. Del, F2, or Esc) during the system startup to enter the BIOS.
• Navigate to the "CPU" or "Hardware" section in the BIOS settings.
• Ensure that the CPU is set to the correct parameters, such as clock speed, number of cores, and voltage.
• If any changes are made, save the settings and exit the BIOS.
• Plug in the power cable and power on the system.

Incorrect BIOS settings can often be corrected by loading default settings or manually adjusting the CPU-related parameters as necessary.

Troubleshooting Ez Debug Led CPU Not Detected - Part 2

Continuing from the previous section, here are further possibilities to consider when troubleshooting the Ez Debug Led CPU Not Detected error.

3. Faulty or Inadequate Power Supply

Inadequate or faulty power supply can also lead to the Ez Debug Led CPU Not Detected error. Insufficient power supply can cause instability in the system, preventing proper CPU detection.

To ensure sufficient power supply:

• Check if the power supply unit (PSU) has enough wattage to support the CPU and other components.
• Ensure that all necessary power cables are connected securely to the motherboard.
• Consider testing the system with a different power supply, if available, to rule out any power-related issues.

If a faulty or inadequate power supply is causing the Ez Debug Led CPU Not Detected error, replacing the power supply with a higher wattage or more reliable unit should resolve the issue.

3.1. Power Surge Protection

Power surges or irregularities in the electrical supply can damage components, including the CPU or motherboard. Surge protectors or uninterruptible power supplies (UPS) can help mitigate these risks and ensure a stable power supply to the system.

Consider connecting your system to a surge protector or UPS to protect against power surges and fluctuations that may cause the Ez Debug Led CPU Not Detected error.

4. Defective Motherboard

In some cases, the Ez Debug Led CPU Not Detected error may be caused by a defective motherboard. Although relatively rare, manufacturing defects or physical damage to the motherboard can result in the CPU not being detected.

To determine if the issue lies with the motherboard:

• Test a different compatible CPU on the same motherboard.
• If the same motherboard fails to detect a different CPU, it indicates a potential issue with the motherboard.
• Contact the motherboard manufacturer's support or consult a professional for further assistance and potential replacement.

If the motherboard is determined to be defective, you may need to replace it to resolve the Ez Debug Led CPU Not Detected error.

4.1. Clear CMOS

Clearing the CMOS (Complementary Metal-Oxide-Semiconductor) can help reset the motherboard's settings to default, potentially resolving any conflicts or incorrect configurations that may cause the Ez Debug Led CPU Not Detected error.

To clear the CMOS:

• Power off the system and unplug the power cable.
• Locate the CMOS jumper on the motherboard. Refer to the motherboard's manual for the exact location.
• Remove the CMOS jumper from its default position.
• Wait for a few seconds and then reposition the CMOS jumper back to its original position.
• Plug in the power cable and power on the system.

Clearing the CMOS can often resolve various motherboard-related issues, including the Ez Debug Led CPU Not Detected error.

Overall, the Ez Debug Led CPU Not Detected error can be caused by various factors such as incorrect installation, compatibility issues, faulty components, power supply problems, or defective motherboard. By following the troubleshooting steps outlined in this article, users can identify and resolve the issue to successfully detect the CPU on their system.

Troubleshooting Ez Debug Led: CPU Not Detected

If you are encountering an issue with your computer where the Ez Debug LED is indicating that the CPU is not detected, there are several steps you can take to troubleshoot and resolve the problem.

First, ensure that the CPU is properly installed in the socket and that all connections are secure. Check for any bent pins or other physical damage on the CPU and the motherboard.

If the physical connections are in good condition, try clearing the CMOS settings by resetting the motherboard's BIOS. This can be done by removing the CMOS battery for a few minutes and then reinserting it. Additionally, check if the CPU is supported by the motherboard and if a BIOS update is available.

If the issue persists, try booting the system with only the essential components connected – CPU, RAM, and power supply. This can help determine if any other component is causing the problem.

If none of these steps resolve the issue, it is recommended to contact the manufacturer's technical support for further assistance or consider seeking professional help to diagnose and repair the problem.

Frequently Asked Questions

If your system's EZ Debug LED shows that the CPU is not detected, it can be concerning. However, there are several possible reasons for this issue, and solutions are available. This FAQ will help you troubleshoot the problem and get your CPU working again.

1. What are the possible reasons for the EZ Debug LED showing "CPU Not Detected"?

There could be several reasons for the EZ Debug LED to show "CPU Not Detected" on your motherboard:

The CPU might not be properly seated in the socket. It is possible that during installation or transportation, the CPU was not securely placed, leading to poor contact with the socket pins.

Another possible reason could be compatibility issues. The CPU you have installed might not be compatible with the motherboard. Ensure that the motherboard supports your CPU model.

2. How can I troubleshoot the "CPU Not Detected" issue?

To troubleshoot the "CPU Not Detected" issue, follow these steps:

1. Check the CPU installation: Remove the CPU and reseat it properly in the socket. Ensure that it is aligned correctly and securely fastened. Double-check that the socket locking mechanism is engaged.

2. Verify compatibility: Check the motherboard's specifications and ensure that the CPU you have installed is supported. If not, you may need to upgrade either the CPU or the motherboard.

3. Can a faulty power supply affect CPU detection?

Yes, a faulty power supply can affect CPU detection. If the power supply unit (PSU) is not providing enough power to the motherboard, it may fail to detect the CPU or other components properly. It is recommended to check the PSU's voltage outputs and ensure they meet the motherboard's requirements.

4. Is it possible to fix the "CPU Not Detected" issue without replacing any components?

In some cases, the "CPU Not Detected" issue can be resolved without replacing any components. Try the following steps:

1. Clear CMOS: Reset the motherboard's BIOS settings by clearing CMOS. Refer to your motherboard's manual for the specific instructions on how to do this.

2. Update BIOS: Check for BIOS updates for your motherboard on the manufacturer's website. Updating the BIOS can sometimes resolve compatibility issues and improve CPU detection.

5. If none of the troubleshooting steps work, what should I do?

If none of the troubleshooting steps mentioned above resolve the "CPU Not Detected" issue, it is advisable to seek professional assistance. Contact the manufacturer's customer support or consult a computer technician who can further diagnose and resolve the problem.

MSI EZ Debug CPU LED FIXED! (2022)

In conclusion, if you are facing the issue of 'Ez Debug Led CPU Not Detected' on your computer, there are a few steps you can take to troubleshoot the problem. First, make sure that the CPU is properly installed and seated correctly in the socket. Check for any bent pins or physical damage. Next, check the CPU power cable to ensure it is securely connected. If the issue still persists, try resetting the CMOS by removing the motherboard battery for a few minutes and then reinstalling it. Finally, if none of these steps resolve the problem, it may be necessary to contact a professional for further assistance.

Remember, troubleshooting computer issues can sometimes be complex, but by following these steps, you can hopefully resolve the 'Ez Debug Led CPU Not Detected' issue. It's important to remain patient and thorough in your troubleshooting efforts. If all else fails, don't hesitate to seek help from a knowledgeable professional who can guide you through the process and help you get your CPU back up and running.
