CPU Vdd Soc Current Optimization

CPU Vdd SoC current optimisation means managing processor power without compromising stability. If you mean the BIOS option labelled CPU VDD_SoC Current Optimization, leave it on Auto unless your motherboard documentation gives a specific reason to change it. It is separate from SoC voltage, and.

What CPU VDD and SoC current mean

VDD identifies a supply rail. Current is the electrical flow through that rail, measured in amperes; voltage is the electrical potential, measured in volts. Power depends on both. These terms describe related measurements, but they are not interchangeable controls.

Processors can have separate power domains for their cores and other functions. On the Ryzen platforms described in AMD's Ryzen Master reference guide, the SoC domain includes the memory controller and, on APUs, integrated graphics. The exact arrangement depends on the processor.

A current reading normally changes with activity. A higher reading during a demanding workload does not, by itself, show that anything needs fixing. Equally, a lower reading is not evidence of greater efficiency if the computer is completing less work.

What the BIOS current optimisation option controls

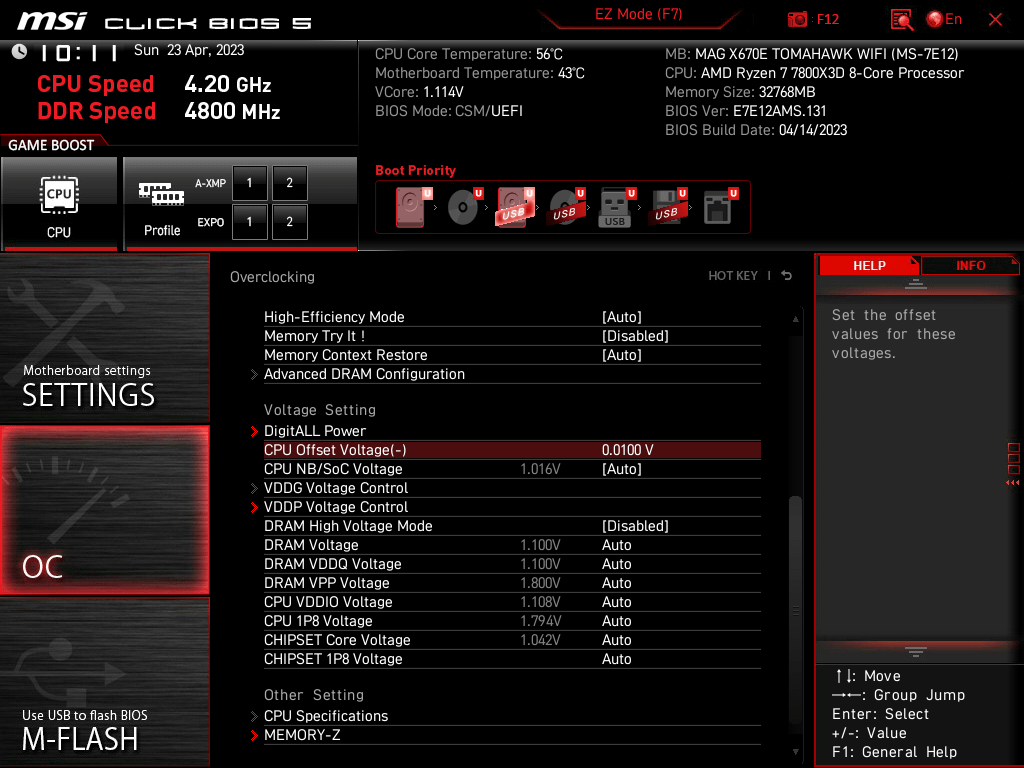

Some MSI motherboards expose CPU VDD_SoC Current Optimization. The B450 TOMAHAWK manual describes Auto as automatic BIOS configuration and Custom Setting as manual current configuration. Availability and wording vary with the board and firmware.

The MSI X570/B550 BIOS guide also lists CPU VDD Full Scale Current and CPU SoC Full Scale Current as controls revealed by Custom Setting. These descriptions do not establish a universal value or a predictable saving from reducing either entry.

Do not treat a full-scale current setting as a direct instruction to make the processor draw fewer amperes. Before changing it, establish what the setting represents on your board, including its units and any effect on current reporting. A lower displayed power figure alone cannot prove that physical power consumption has fallen.

SoC voltage, processor power limits and current optimisation are separate settings. Advice for one should not be applied to another simply because both mention CPU power.

Choose the control that matches your goal

Reducing SoC voltage is a different form of tuning. Its stability margin depends on the processor, memory configuration and platform. There is no single voltage recommendation suitable for every system, and this current optimisation setting should not be used as a substitute for platform-specific voltage guidance.

Check the hardware before changing settings

Record the exact CPU, motherboard model, BIOS version and memory configuration. Also note whether graphics are integrated or supplied by a separate card. The guide to checking graphics card information with command-line tools can help identify the display hardware before you choose a relevant workload.

Keep compatibility research separate from electrical tuning. For example, a socket rPGA 989 CPU list concerns a different platform from the Ryzen boards discussed here. Confirm compatibility against the computer or motherboard manufacturer's support list, and use tuning instructions written for your actual hardware.

Read the BIOS help text as well as the manual. If neither explains what the current control does, keep Auto selected and ask the motherboard manufacturer for clarification before experimenting.

A controlled process for evaluating a change

1. Define the problem. Record whether you are investigating excess heat, unusual readings, instability or energy use. Choose a repeatable task that exposes it.
2. Save your existing configuration. Photograph relevant BIOS pages or save a supported profile. Read the board's recovery procedure before altering settings that could prevent startup.

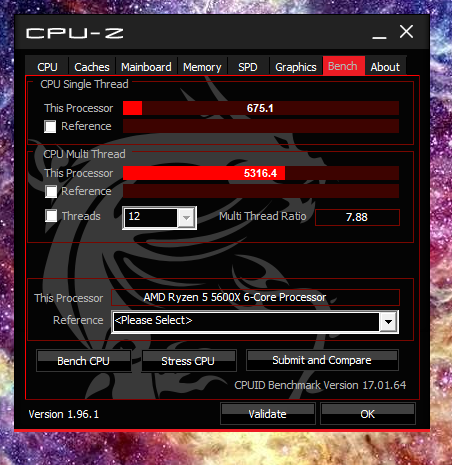

3. Establish a baseline. Run the chosen task with the current optimisation option on Auto. Record completion time or performance, temperatures, relevant power readings and any errors.
4. Change one documented control. Use only guidance applicable to your processor and motherboard. Keep memory settings, clock settings and other power controls unchanged during the comparison.
5. Repeat the same workload. Keep cooling conditions, application settings and background activity as consistent as practical. Compare useful work completed alongside temperature and power.
6. Check broader stability. Include memory-intensive work, integrated graphics workloads where applicable, idle periods, restarts and sleep/resume. A successful boot or one benchmark run is insufficient.
7. Restore the previous setting if results worsen. Revert when new errors, crashes or performance losses appear, or when there is no repeatable benefit.

Check what your monitoring software actually reports: core power, SoC power, package power and whole-system consumption cover different things. If your goal is lower electricity use, a suitable wall-power meter provides an independent whole-system comparison. For tasks with a clear finish, consider energy used to complete the task as well as instantaneous watts.

How automatic power management fits in

Dynamic voltage and frequency scaling adjusts operating conditions as demand changes. Clock gating reduces unnecessary switching activity, while power gating shuts down supported inactive circuitry. These mechanisms help explain why workload and idle behaviour matter to consumption.

They are largely implemented through processor design, firmware and operating system power management. Selecting Custom Setting in a current optimisation menu does not implement these techniques. Most users benefit from allowing supported automatic management to operate and addressing a measured problem with the appropriate control.

For related component checks, use the computer hardware guides alongside your manufacturer's documentation. Start by locating CPU VDD_SoC Current Optimization in your board's manual and recording an Auto-setting baseline for the workload you want to improve.
