CPU Fan Connector On Motherboard
When it comes to the components inside your computer, the CPU Fan Connector on the motherboard may seem like a small and insignificant part. However, this unassuming connector plays a crucial role in maintaining the performance and longevity of your computer's central processing unit (CPU). Did you know that without a properly functioning CPU fan, the CPU can overheat and potentially cause irreparable damage? The CPU Fan Connector is responsible for connecting the CPU fan to the motherboard, allowing it to efficiently cool the CPU and prevent overheating.
The CPU Fan Connector on the motherboard has evolved over time to meet the increasing power and cooling requirements of modern CPUs. In the early days of computing, fans were often powered directly by the power supply unit (PSU) and attached to the CPU heatsink. However, as CPUs became more powerful and generated more heat, it became necessary to provide more control over the fan speed. This led to the development of the CPU Fan Connector, which allows the motherboard to monitor the CPU temperature and adjust the fan speed accordingly. Today, these connectors typically use a 4-pin design, with the additional pin allowing for more precise control of the fan speed. This ensures optimal cooling performance while keeping noise levels to a minimum. With the CPU Fan Connector, computer enthusiasts and professionals can rely on their systems to run smoothly even under heavy workloads, giving them the confidence and peace of mind they need."
The CPU fan connector on a motherboard is a crucial component that allows a CPU fan to connect directly to the motherboard. This connection ensures that the fan is properly powered and controlled, allowing it to cool the CPU efficiently. It is usually a 4-pin connector that offers more control options, such as variable fan speed and PWM control. Properly connecting your CPU fan to this connector is important for maintaining optimal CPU temperatures and preventing overheating.
Understanding the CPU Fan Connector on a Motherboard
The CPU fan connector is a crucial component found on a motherboard that allows the connection and control of the cooling fan directly to the central processing unit (CPU). It plays a vital role in maintaining the optimal temperature of the CPU by ensuring proper airflow and heat dissipation. This article will explore the different aspects of the CPU fan connector, including its purpose, types, pin configurations, and troubleshooting tips.
Purpose of the CPU Fan Connector on a Motherboard
The primary purpose of the CPU fan connector on a motherboard is to enable the connection and control of the CPU cooling fan. The CPU generates a significant amount of heat during operation, and without proper cooling, it can lead to performance issues and potential damage. The CPU fan connector allows the fan to be directly connected to the motherboard, ensuring effective cooling by providing power and control signals. By regulating the fan speed and monitoring temperature, the CPU fan connector ensures that the CPU operates within safe temperature limits.
In addition to cooling the CPU, the CPU fan connector also plays a role in system stability. As the CPU temperature increases, the fan speed needs to adjust accordingly to prevent overheating. The CPU fan connector allows the motherboard to communicate with the fan and adjust its speed based on temperature readings. By automatically regulating the fan speed, the CPU fan connector helps maintain system stability and prevents thermal throttling.
Modern motherboards often come with additional features related to the CPU fan connector, such as software control through the BIOS or UEFI firmware. This allows users to customize fan curves, set temperature thresholds, and monitor CPU temperature in real-time. Such features provide flexibility and control over the cooling system, ensuring optimal performance and longevity of the CPU.
Types of CPU Fan Connectors
CPU fan connectors come in various types, each with its own pin configuration and compatibility. The most common types include:
- 3-pin CPU Fan Connector: This connector is the most basic type and supports basic fan speed control. It provides power, ground, and a tachometer (RPM) signal wire. The fan speed can be adjusted by regulating the voltage supplied to the fan.
- 4-pin PWM CPU Fan Connector: PWM stands for Pulse-Width Modulation. This connector type offers more precise control over the fan speed by varying the duty cycle of the PWM signal. It provides power, ground, a tachometer wire, and a PWM control wire.
- 4-pin Voltage Controlled CPU Fan Connector: This connector is similar to the 4-pin PWM connector but uses voltage control instead of PWM control. The voltage supplied to the fan determines the fan speed.
It's important to ensure compatibility between the CPU fan connector on the motherboard and the fan itself. Most modern motherboards support both 3-pin and 4-pin connectors, allowing users to choose the appropriate fan type based on their requirements.
Pin Configurations of CPU Fan Connectors
The pin configuration of a CPU fan connector may vary depending on the type. Here is a common pinout configuration for each type:
Pin 1 | Pin 2 | Pin 3 | Pin 4 | |
3-pin CPU Fan Connector | Ground | Power (12V) | Tachometer (RPM) | |
4-pin PWM CPU Fan Connector | Ground | Power (12V) | Tachometer (RPM) | PWM Control |
4-pin Voltage Controlled CPU Fan Connector | Ground | Power (12V) | Tachometer (RPM) | Voltage Control |
Understanding the pin configuration is essential when connecting the CPU fan to the motherboard. The power pin provides the necessary voltage to the fan, the ground pin ensures proper electrical connection, the tachometer pin provides RPM readings, and the PWM or voltage control pin allows for fan speed adjustment.
Troubleshooting Common Issues with CPU Fan Connectors
Like any other component, CPU fan connectors can experience issues that affect cooling performance. Here are some common troubleshooting steps:
- Ensure the fan connector is securely connected to the motherboard. Loose connections can cause intermittent fan operation or failure.
- Check the fan speed settings in the BIOS or UEFI firmware. Adjust the settings to ensure proper cooling based on CPU temperature.
- Clean the fan and heatsink from dust and debris. Accumulated dust can impede airflow and lead to increased temperatures.
- If the fan is not spinning or spinning erratically, it may be a sign of a faulty fan. Consider replacing the fan if necessary.
By following these troubleshooting steps, users can identify and resolve common issues related to CPU fan connectors, ensuring optimal cooling performance and CPU longevity.
Exploring the Benefits and Limitations of CPU Fan Connectors on Motherboards
The CPU fan connector on a motherboard offers several benefits in terms of cooling efficiency and system stability. However, it also has certain limitations that users should be aware of. This section will delve into the advantages and disadvantages of CPU fan connectors.
Benefits of CPU Fan Connectors
1. Effective Cooling: The CPU fan connector allows direct connection and control of the CPU cooling fan, ensuring efficient heat dissipation and optimal temperature regulation.
2. System Stability: By adjusting the fan speed based on temperature readings, the CPU fan connector helps maintain system stability and prevents overheating, which can lead to performance issues or even hardware damage.
3. Customized Cooling: Many modern motherboards offer software control through the BIOS or UEFI firmware, allowing users to customize fan curves and set temperature thresholds. This enables personalized cooling solutions based on specific needs or preferences.
4. Noise Reduction: The CPU fan connector's ability to control fan speed helps in reducing unnecessary noise. By adjusting the speed to match the CPU's temperature, it minimizes noise levels without compromising cooling performance.
Limitations of CPU Fan Connectors
1. Compatibility: CPU fan connectors come in different types (3-pin, 4-pin PWM, and 4-pin voltage-controlled), and compatibility between the motherboard connector and the fan must be ensured. Using an incompatible fan can result in limited or no control over fan speed.
2. Single Connector: Most motherboards provide a single CPU fan connector, which limits the number of fans that can be directly controlled by the motherboard. Additional fan headers or fan controllers may be required to connect multiple fans.
3. Limitations of Voltage Control: Some CPU fan connectors use voltage control instead of PWM control. Voltage control has limited granularity compared to PWM control, resulting in less precise control over fan speed.
4. Compatibility with Aftermarket Solutions: Certain high-performance cooling solutions or aftermarket fans may require specialized connectors or separate controllers, which might not be fully compatible with the standard CPU fan connectors found on motherboards.
Despite its limitations, the CPU fan connector remains an essential component in maintaining the cooling performance and stability of a CPU. Understanding its benefits and limitations can help users make informed decisions when selecting cooling solutions for their systems.
In conclusion, the CPU fan connector on a motherboard serves a vital role in maintaining optimal CPU temperatures and ensuring system stability. By allowing direct connection and control of the CPU cooling fan, it enables efficient heat dissipation and prevents overheating. The CPU fan connector's ability to adjust fan speed based on temperature readings helps maintain system stability and reduces noise levels. However, it is essential to ensure compatibility between the motherboard connector and the fan type, and be aware of the limitations such as limited control over multiple fans or specialized aftermarket cooling solutions requiring separate controllers. Overall, the CPU fan connector plays a crucial role in keeping the CPU cool and maximizing its performance.
CPU Fan Connector on Motherboard
In a computer system, the CPU (Central Processing Unit) fan plays a crucial role in maintaining the temperature of the processor. The CPU fan connector on the motherboard is the electrical interface that allows the CPU fan to be connected and controlled by the motherboard.
The CPU fan connector is typically a 4-pin or 3-pin header located on the motherboard. The 4-pin header provides additional features such as PWM (Pulse Width Modulation) control, which helps in adjusting the fan speed based on the CPU temperature. On the other hand, the 3-pin header only supports constant fan speed.
It is important to correctly connect the CPU fan to the motherboard to ensure proper cooling and prevent overheating of the processor. The fan connector is usually labeled as "CPU_FAN" or "CPU_FAN1" on the motherboard, making it easier for users to identify. Additionally, some motherboards may have multiple CPU fan connectors to support multiple cooling fans.
Before connecting the CPU fan, it is advisable to consult the motherboard's manual for specific instructions and ensure compatibility between the fan connector and the fan itself. The manual will provide guidance on the pin configuration and any additional features available.
Overall, the CPU fan connector on the motherboard is an important component for proper cooling and temperature management, ensuring optimal performance and longevity of the processor.
CPU Fan Connector on Motherboard: Key Takeaways
- The CPU fan connector on the motherboard is used to connect the CPU fan for cooling purposes.
- It is usually a 4-pin or 3-pin connector located near the CPU socket.
- The 4-pin connector provides better control over the fan speed compared to the 3-pin connector.
- Make sure to consult the motherboard manual to locate the CPU fan connector.
- Proper connection of the CPU fan to the motherboard is essential for effective cooling and preventing overheating.
Frequently Asked Questions
In this section, we will address some common questions related to the CPU fan connector on the motherboard.
1. What is a CPU fan connector on the motherboard?
The CPU fan connector on the motherboard is a specific port where the CPU fan is connected to ensure proper cooling of the CPU. It is usually a 3-pin or 4-pin connector that allows the fan to be controlled by the motherboard for optimal performance.
The CPU fan is crucial for keeping the CPU cool during operation, preventing it from overheating. The connector provides power to the fan and allows the motherboard to monitor and adjust the fan speed based on the CPU temperature.
2. How do I connect the CPU fan to the motherboard?

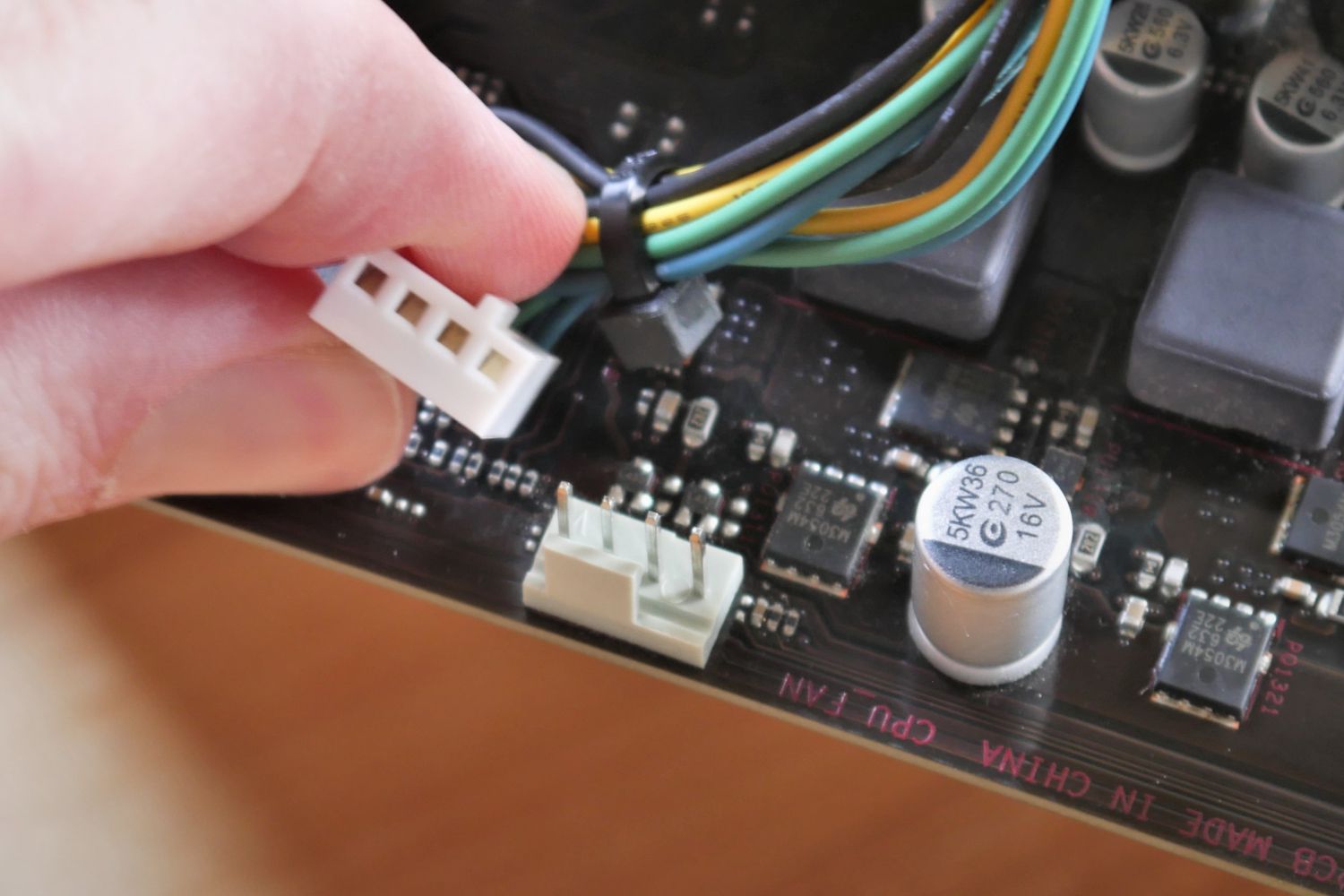

To connect the CPU fan to the motherboard, locate the CPU fan connector on your motherboard. It is usually labeled "CPU_FAN" or similar. Align the connector on the fan cable with the pins on the motherboard connector and gently push it in. Ensure that it is securely attached.
Make sure to consult your motherboard manual for the specific pin configuration and any additional instructions. It is important to connect the CPU fan properly to ensure efficient cooling of the CPU and prevent any damage due to overheating.
3. Can I use a different fan connector on the motherboard for the CPU fan?
While it is possible to use a different fan connector on the motherboard for the CPU fan, it is not recommended. The CPU fan connector is specifically designed to support the high power and precise control required for cooling the CPU.
Using a different connector may result in suboptimal cooling performance or compatibility issues. It is always best to use the designated CPU fan connector on the motherboard to ensure proper functionality and avoid potential problems.
4. What if I have more than one CPU fan? Can I connect them all?
If your motherboard has multiple CPU fan connectors, you can connect more than one CPU fan. This allows for better cooling performance and ensures that each fan is controlled independently to optimize cooling efficiency based on the CPU temperature.
Refer to your motherboard manual to locate the additional CPU fan connectors and follow the same process as connecting the first CPU fan. Ensure that each fan is securely connected and properly configured in the motherboard's BIOS or software utility for fan control.
5. What should I do if the CPU fan connector on my motherboard is not working?
If the CPU fan connector on your motherboard is not working, there are a few troubleshooting steps you can try:
1. Check the connection: Ensure that the CPU fan is properly connected to the motherboard connector and that there are no loose connections. Try reconnecting it and make sure it is securely attached.
2. Check the fan: Test the CPU fan by connecting it to a different motherboard connector or a different power source, if possible. If the fan works in these scenarios, the issue may lie with the motherboard connector.
3. Update the BIOS: Check if there are any BIOS updates available for your motherboard that address issues with the CPU fan connector. Updating the BIOS may resolve compatibility or functionality problems.
4. Seek professional assistance: If the above steps do not resolve the issue, it is recommended to consult a professional technician or contact the motherboard manufacturer for further assistance.
So, to summarize, the CPU fan connector on the motherboard is a crucial component that allows the CPU fan to be connected and controlled. It ensures that the CPU stays cool during operation, preventing overheating and potential damage to the hardware.
It is important to understand the type of connector your motherboard supports and the compatibility with your CPU fan. Always refer to the motherboard manual for proper installation instructions and ensure that the connector is properly seated to avoid any potential issues.
