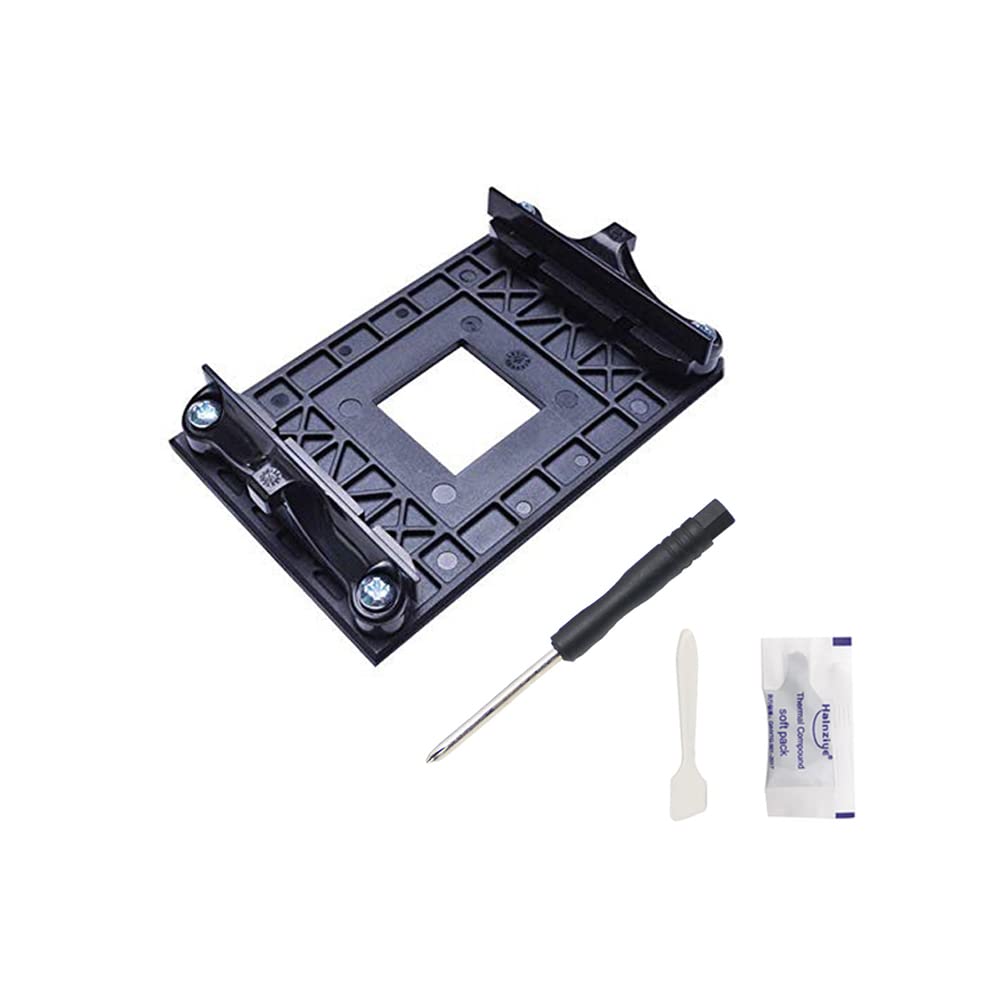

Amd CPU Cooler Retention Bracket

The Amd CPU Cooler Retention Bracket is a crucial component in ensuring optimal cooling for your AMD processor. This small but mighty bracket plays a vital role in securely attaching the cooler to the motherboard, preventing any potential damage or inefficiency.

The Importance of the AMD CPU Cooler Retention Bracket

The AMD CPU cooler retention bracket is a crucial component for securely mounting the CPU cooler onto the motherboard. It plays a vital role in maintaining the stability and optimal performance of the processor. Without a proper retention bracket, the CPU cooler may not be properly aligned and may not provide efficient cooling to the CPU, leading to overheating and potential damage to the processor.

The retention bracket provides a firm grip on the cooler, ensuring that it remains in place even during heavy usage or vibrations. It prevents any movement or dislodging of the cooler, which can cause air gaps and decrease heat dissipation efficiency. The bracket also evenly distributes the pressure applied by the mounting mechanism, preventing excessive force on certain areas of the CPU and reducing the risk of damage.

Moreover, the retention bracket simplifies the installation and removal process of the CPU cooler. It typically consists of a backplate that attaches to the rear of the motherboard and a metal bracket that secures the cooler from the front. This design allows for easy installation and ensures that the cooler remains firmly attached to the motherboard during its lifespan.

In this article, we will explore the importance of the AMD CPU cooler retention bracket in detail, discussing its function, types, compatibility, and benefits.

Function of the AMD CPU Cooler Retention Bracket

The primary function of the AMD CPU cooler retention bracket is to securely hold the CPU cooler in place, ensuring that it remains in contact with the CPU for efficient heat transfer. The bracket acts as a mounting mechanism that connects the cooler to the motherboard, allowing it to dissipate the heat generated by the processor.

By firmly attaching the cooler to the motherboard, the retention bracket eliminates any gaps or uneven pressure between the CPU and cooler. This ensures proper thermal conductivity and prevents overheating, which can lead to system instability or even damage to the CPU. The bracket also helps in maintaining consistent contact between the CPU and cooler, regardless of any external factors, such as vibrations or movement.

The retention bracket also plays a crucial role in evenly distributing the pressure applied by the mounting mechanism. This prevents any excess force or uneven pressure on the CPU, reducing the risk of damage to the processor. It ensures a balanced and secure attachment of the CPU cooler, enhancing the overall stability and performance of the system.

Overall, the function of the AMD CPU cooler retention bracket is to provide a reliable and secure mounting solution that optimizes the cooling performance of the CPU and safeguards the processor from potential damage.

Types of AMD CPU Cooler Retention Brackets

AMD CPU cooler retention brackets come in various types to accommodate different socket types and cooler designs. Some of the common types include:

• Standard Retention Bracket: This is the most common type of retention bracket, compatible with a wide range of AMD sockets. It features a backplate that attaches to the rear of the motherboard and a metal bracket that secures the cooler from the front.
• Clip Retention Bracket: This type of bracket utilizes clips to secure the CPU cooler to the socket, eliminating the need for a backplate. It provides a quick and easy installation process but may not offer the same level of stability as the standard retention bracket.
• Direct Screw Retention Bracket: This bracket design involves directly screwing the CPU cooler onto the socket, bypassing the need for a backplate. It is known for its maximum stability and is often used in high-performance cooling systems.

When choosing the right retention bracket, it is essential to ensure compatibility with both the CPU socket and the CPU cooler being used. Different CPU coolers have specific mounting mechanisms that may require a specific type of retention bracket for proper installation.

Consulting the manufacturer's instructions and specifications is crucial to determine the correct retention bracket type for your system.

Benefits of the AMD CPU Cooler Retention Bracket

The AMD CPU cooler retention bracket offers several benefits for users:

• Improved Cooling Efficiency: The retention bracket ensures proper alignment and secure attachment of the CPU cooler, optimizing heat dissipation and cooling efficiency.
• Enhanced Stability: By securely mounting the cooler, the retention bracket prevents any movement or dislodging, ensuring long-term stability even during heavy usage or vibrations.
• Protection for the CPU: The bracket evenly distributes pressure, reducing the risk of damage to the CPU caused by excessive force during installation or usage.
• Easy Installation and Removal: The retention bracket's design allows for straightforward installation and removal of the CPU cooler, making maintenance or upgrades hassle-free.

The benefits of using the AMD CPU cooler retention bracket make it an essential component for any system requiring optimal cooling performance and long-term stability.

Compatibility and Considerations for the AMD CPU Cooler Retention Bracket

When selecting an AMD CPU cooler retention bracket, it is crucial to consider the compatibility with the specific motherboard socket and CPU cooler. Different CPUs and coolers may require different bracket types, so it is essential to verify compatibility before making a purchase.

First, determine the socket type of your motherboard. AMD CPUs use various socket types, such as AM4, AM3+, and FM2+. Each socket type has specific requirements for the retention bracket. Consult the motherboard's user manual or the manufacturer's website to confirm the socket type and any specific bracket recommendations.

Next, verify the compatibility of the CPU cooler with the chosen bracket. Different coolers have different mounting mechanisms, and some may only be compatible with specific bracket types. Check the CPU cooler's specifications or the manufacturer's documentation for information on the supported bracket types.

It is advisable to purchase the retention bracket directly from the CPU cooler manufacturer or a reputable computer hardware retailer to ensure compatibility and quality. If unsure about the compatibility, consulting with technical support or knowledgeable experts can help in making the right selection.

Installation of the AMD CPU Cooler Retention Bracket

The installation process of the AMD CPU cooler retention bracket may vary depending on the specific socket and bracket type. However, the general steps involved are as follows:

• Ensure the motherboard and CPU are correctly installed in the computer case.
• If necessary, remove any existing retention bracket or mounting mechanism from the motherboard.
• Align the backplate to the rear of the motherboard ensuring the correct orientation.
• Attach the backplate onto the motherboard using the provided screws or clips. Ensure a secure and tight fit.
• Align the metal bracket with the backplate and secure it using the provided screws or clips. Ensure the bracket is firmly attached.
• Apply thermal paste on the CPU surface, ensuring even coverage.
• Place the CPU cooler onto the CPU, aligning the mounting holes with the screws or clips on the metal bracket.
• Secure the cooler onto the bracket using the provided screws or clips. Tighten them evenly in an X-pattern.
• Double-check all the connections and ensure everything is securely fastened.

These steps are a general guideline, and it is essential to refer to the specific instructions provided by the CPU cooler manufacturer for proper installation.

Maintenance and Upgrading

The AMD CPU cooler retention bracket does not require regular maintenance. However, it is advisable to periodically check the tightness of the screws or clips that secure the cooler to ensure they are properly tightened. Loose fasteners can lead to reduced cooling performance and potential damage to the CPU.

If upgrading the CPU cooler or performing maintenance on the system, it is necessary to follow the steps provided by the new cooler manufacturer to remove the existing cooler. This typically involves unscrewing the cooler from the retention bracket and carefully lifting it off the CPU.

Ensure that the retention bracket remains securely attached to the motherboard during this process. Clean the old thermal paste from the CPU surface and reapply a fresh layer before installing the new cooler.

Understanding the AMD CPU Cooler Retention Bracket

When it comes to installing an AMD CPU cooler, the retention bracket plays a crucial role. This component is designed to securely hold the cooler in place on the motherboard, ensuring optimal thermal performance and preventing damage to the CPU.

The AMD CPU cooler retention bracket is specifically designed for AMD socket types, such as AM4, AM3+, and FM2+, among others. It typically consists of a metal bracket and screws that attach to the motherboard. The bracket provides a stable mounting system for the cooler, allowing it to make direct contact with the CPU for efficient heat dissipation.

When installing an AMD CPU cooler, it is important to ensure that the retention bracket is properly aligned and securely fastened. Failure to do so may result in poor cooling performance or potential damage to the CPU. It is recommended to refer to the manufacturer's instructions or consult a professional if you are unsure about the installation process.

In conclusion, the AMD CPU cooler retention bracket is a crucial component for proper installation and performance of AMD CPU coolers. Understanding its function and correct installation process is essential for maintaining optimal cooling efficiency and protecting your CPU.

Frequently Asked Questions

Amd CPU cooler retention brackets are an essential component for ensuring proper installation and stability of CPU coolers on AMD processors. Here are some frequently asked questions about Amd CPU cooler retention brackets:

1. How do I install an Amd CPU cooler retention bracket?

Installing an Amd CPU cooler retention bracket is a straightforward process. Here are the steps:

1. Remove the existing CPU cooler and retention bracket (if applicable).

2. Align the Amd CPU cooler retention bracket with the mounting holes on the motherboard.

3. Secure the retention bracket to the motherboard using the provided screws or clips.

4. Attach the CPU cooler onto the retention bracket following the manufacturer's instructions.

5. Ensure that the cooler is firmly attached and making good contact with the CPU.

2. Can I use an Amd CPU cooler retention bracket with any Amd processor?

Amd CPU cooler retention brackets are designed to be compatible with specific socket types. Before purchasing a retention bracket, make sure it is compatible with your particular Amd processor's socket type. Common socket types include AM4, AM3+, FM2+, and others.

Additionally, pay attention to the cooler's compatibility. Some coolers may have specific compatibility requirements even if the retention bracket fits the processor socket.

3. Can I reuse an Amd CPU cooler retention bracket?

In many cases, Amd CPU cooler retention brackets can be reused. However, it is important to check the condition of the bracket and ensure that it is still in good shape and functioning properly.

If the retention bracket shows signs of damage or wear, it is recommended to replace it with a new one to ensure proper installation and stability of the CPU cooler.

4. Where can I purchase an Amd CPU cooler retention bracket?

Amd CPU cooler retention brackets can be purchased from various sources. Some common places to find them include:

1. Online retailers specializing in computer hardware and accessories.

2. Amd's official website or their authorized resellers.

3. Physical computer hardware stores.

When purchasing, make sure to check the compatibility with your specific processor socket and the cooler you intend to use.

5. Is it necessary to use an Amd CPU cooler retention bracket?

Using an Amd CPU cooler retention bracket is highly recommended for proper installation and stability of the CPU cooler. It helps ensure that the cooler is securely attached to the motherboard, minimizing the risk of damage or instability.

While some coolers may come with their own retention mechanism, using an Amd CPU cooler retention bracket provides an added level of compatibility and assurance that the cooler is properly supported by the motherboard.

In summary, the AMD CPU Cooler Retention Bracket is an essential component for securely installing a CPU cooler on your AMD motherboard. This bracket provides stability and ensures that the cooler remains in place, allowing for effective heat dissipation and optimal performance of your processor.

By using the AMD CPU Cooler Retention Bracket, you can confidently build or upgrade your system, knowing that your CPU cooler will be properly supported. This bracket is easy to install and compatible with various AMD motherboards, making it a convenient choice for any PC enthusiast or professional user.
