Understanding the Relationship Between a 3 Pin CPU Fan and a 4 Pin Motherboard

In the world of computer hardware, the relationship between a 3 Pin CPU fan and a 4 Pin motherboard is an important one. These two components work together to ensure efficient cooling and optimal performance of the CPU. While they may appear different on the surface, understanding their compatibility and functionality is crucial for any computer enthusiast or professional.

The Basics: What is a 3 Pin CPU Fan?

A 3 Pin CPU fan is a cooling component designed specifically for CPUs. It is responsible for dissipating heat generated by the CPU during operation, preventing overheating and potential damage. The fan consists of three pins that connect to the motherboard, controlling the fan speed and allowing it to operate efficiently.

The three pins on a 3 Pin CPU fan are typically labeled as ground (GND), power (VCC), and tachometer (TACH). The ground pin provides a reference point for electrical signals, the power pin supplies the necessary voltage for the fan to operate, and the tachometer pin measures the fan speed.

3 Pin CPU fans are known for their simplicity and reliability. They are widely used in computer systems and can be easily installed, making them a popular choice for both enthusiasts and professionals alike. However, it's important to note that 3 Pin fans have limitations in terms of fan speed control, which we will discuss further in this article.

Demystifying the 4 Pin Motherboard

A 4 Pin motherboard, on the other hand, refers to the fan header on the motherboard that is designed to accommodate 4-pin fans. It provides power and control for the connected fan, allowing for more advanced fan speed management compared to a 3 Pin motherboard.

The fourth pin on a 4 Pin motherboard is commonly known as the pulse-width modulation (PWM) pin. PWM technology enables precise control over fan speed by adjusting the amount of power delivered to the fan. With a 4 Pin motherboard, users have the flexibility to fine-tune the fan speed based on their specific needs, providing a more customizable cooling solution.

It's worth noting that while 4 Pin motherboards are designed to support 4 Pin fans, they can also accommodate 3 Pin fans. However, the control and customization options available may be limited when using a 3 Pin fan on a 4 Pin motherboard.

Key Differences Between 3 Pin CPU Fans and 4 Pin Motherboards

• Control Options: A 3 Pin CPU fan has limited control options compared to a 4 Pin fan connected to a 4 Pin motherboard. The 4 Pin motherboard allows for more precise fan speed control using PWM technology.
• Customizability: With a 4 Pin motherboard, users have the ability to customize fan speed profiles and create a tailored cooling solution. This level of customization is not available when using a 3 Pin CPU fan.
• Noise Levels: Due to the advanced control options provided by a 4 Pin motherboard, users can often achieve lower noise levels compared to using a 3 Pin CPU fan.

While 3 Pin CPU fans and 4 Pin motherboards have their differences, they can still work together to provide adequate cooling for a CPU. However, using a 4 Pin fan on a 4 Pin motherboard will unlock the full potential of advanced fan speed control and customization options.

Compatibility and Adaptability: Using a 3 Pin CPU Fan on a 4 Pin Motherboard

As mentioned earlier, a 4 Pin motherboard can support both 3 Pin and 4 Pin fans. This means that if you only have a 3 Pin CPU fan available, you can still connect it to a 4 Pin motherboard and use it effectively.

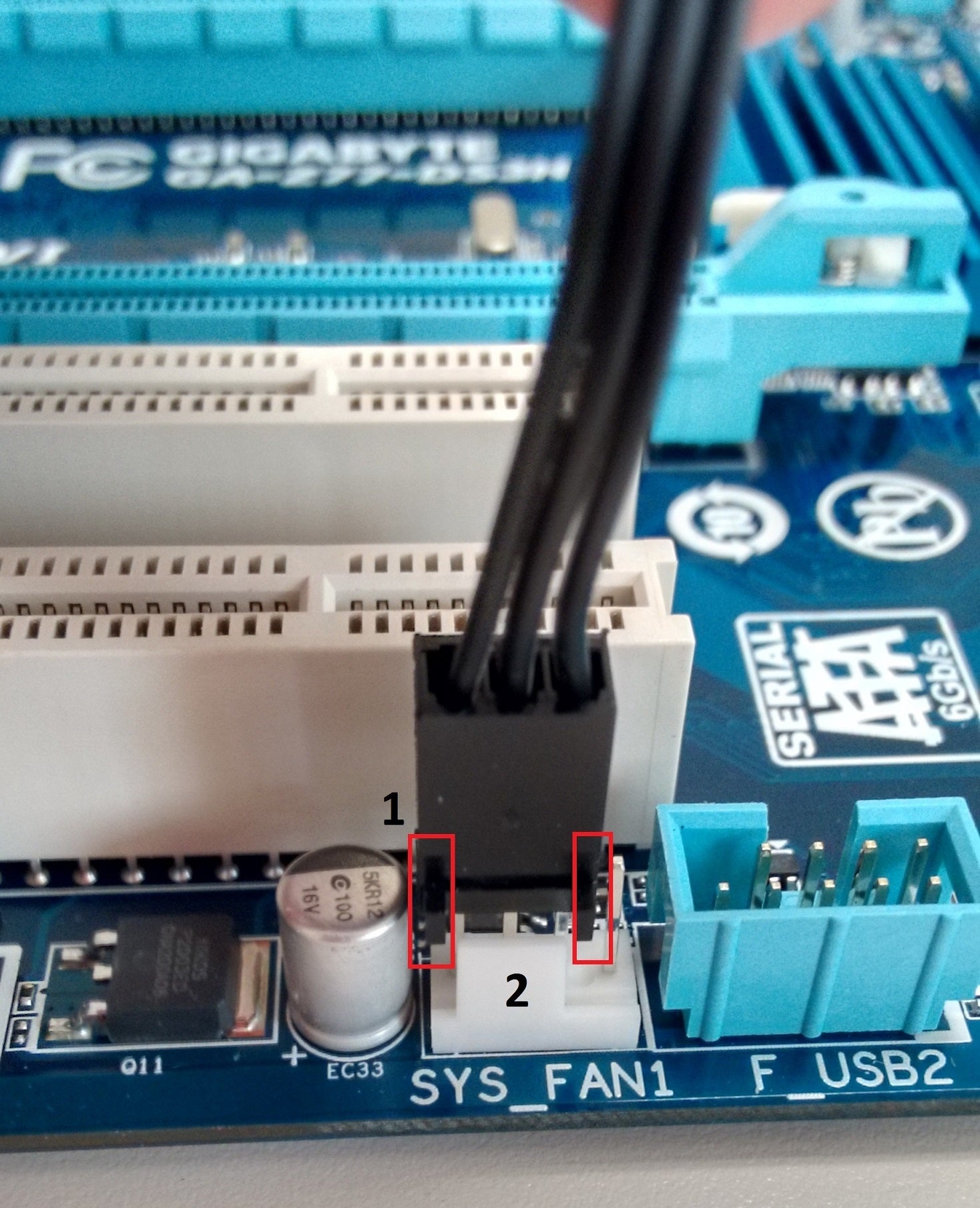

When connecting a 3 Pin fan to a 4 Pin motherboard, you will typically use the first three pins of the fan header on the motherboard, skipping the fourth PWM pin. The GND, VCC, and TACH pins on the 3 Pin fan will correspond to the corresponding pins on the 4 Pin motherboard.

It's important to note that when using a 3 Pin fan on a 4 Pin motherboard, the fan speed will be controlled differently. Instead of using the advanced PWM technology, the motherboard will regulate the fan speed by adjusting the voltage supplied to the fan. This method is commonly referred to as voltage-based control.

Considerations When Using a 3 Pin CPU Fan on a 4 Pin Motherboard

• Speed Control: With a 3 Pin fan connected to a 4 Pin motherboard, the speed control may be less precise compared to using a 4 Pin fan. This is because voltage-based control may not offer the same level of granularity as PWM control.
• Fan Profiles: As voltage-based control may not provide the same range of customization as PWM control, you may have limited fan profile options when using a 3 Pin fan on a 4 Pin motherboard.
• Compatibility: While 3 Pin fans are generally compatible with 4 Pin motherboards, it's recommended to consult the motherboard manual or specifications to ensure compatibility.

Using a 3 Pin CPU fan on a 4 Pin motherboard is a viable option when a 4 Pin fan is not available. It allows you to use your existing 3 Pin fan without the need for additional purchases. However, keep in mind the limitations of voltage-based control and consider upgrading to a 4 Pin fan if you require more precise fan speed control and customization options.

Benefits of Using a 4 Pin CPU Fan on a 4 Pin Motherboard

Now that we've explored the compatibility between 3 Pin CPU fans and 4 Pin motherboards, let's delve into the benefits of using a 4 Pin CPU fan on a 4 Pin motherboard.

Enhanced Fan Speed Control and Customization

One of the main advantages of using a 4 Pin CPU fan on a 4 Pin motherboard is the enhanced fan speed control and customization options. The PWM technology allows for precise control over the fan speed, giving you the ability to fine-tune the cooling performance according to your needs.

By adjusting the duty cycle of the PWM signal, the motherboard can regulate the fan speed more accurately. This enables you to create custom fan profiles, setting different speed levels based on temperature thresholds or specific usage scenarios. For example, you can configure the fan to ramp up its speed when the CPU reaches a certain temperature, ensuring optimal cooling under heavy workloads.

Additionally, with a 4 Pin PWM fan, you can take advantage of software utilities provided by motherboard manufacturers to further customize the fan behavior. These utilities often offer user-friendly interfaces that allow you to create fan curves, adjust speed presets, and monitor temperature and fan speeds in real-time.

Reduced Noise Levels

Another benefit of using a 4 Pin CPU fan on a 4 Pin motherboard is the potential for reduced noise levels. The enhanced fan speed control provided by PWM technology allows for quieter operation, especially during low-load situations.

With the ability to set precise fan speed profiles, you can configure the fan to operate at lower speeds when the CPU is idle or under light workloads. This results in reduced noise output, providing a more pleasant computing experience.

Further Noise Reduction Techniques

In addition to PWM control, you can employ additional noise reduction techniques when using a 4 Pin CPU fan on a 4 Pin motherboard. These techniques can help further reduce noise levels and improve overall acoustic performance:

• Fan Curves: Create a custom fan curve that keeps the fan at low speeds unless the CPU temperature reaches a certain threshold. This ensures that the fan operates at its minimum required speed to maintain cooling.
• Vibration Dampening: Use rubber or silicone fan mounts to reduce vibrations transferred from the fan to the case, minimizing noise caused by resonance.
• Cable Management: Proper cable management helps improve airflow within the case, reducing the need for higher fan speeds and consequently, noise levels.
• Case Fans: Ensuring adequate airflow in the case can help distribute heat more effectively, reducing the workload on the CPU fan and resulting in lower noise levels.

By implementing these techniques in conjunction with a 4 Pin CPU fan and a 4 Pin motherboard, you can achieve optimal cooling performance while maintaining low noise levels.

Improved Performance and Longevity

A well-managed cooling solution with a high-quality 4 Pin CPU fan and a 4 Pin motherboard can contribute to improved performance and longevity of your CPU.

By maintaining a consistent and controlled temperature within the CPU, you can prevent thermal throttling, a mechanism that reduces the CPU's clock speed to protect it from overheating. This ensures that your CPU operates at its maximum potential, especially during demanding tasks such as gaming, video editing, or 3D rendering.

In addition to performance benefits, a properly cooled CPU also enjoys increased longevity. Excessive heat can degrade the components over time, leading to potential failures or reduced lifespan. By investing in a 4 Pin CPU fan and pairing it with a 4 Pin motherboard, you can effectively manage the temperature and extend the lifespan of your CPU.

Choosing the Right 4 Pin CPU Fan

When selecting a 4 Pin CPU fan for your 4 Pin motherboard, it's important to consider factors such as noise levels, airflow, and static pressure. These specifications will determine the performance and cooling capabilities of the fan.

Look for fans with high-quality bearings, optimized blade designs, and efficient motor technologies. Additionally, pay attention to the noise ratings provided by the manufacturer, usually measured in decibels (dB). Lower noise ratings indicate quieter operation.

Consider the size and compatibility of the fan with your specific CPU socket. Most manufacturers provide compatibility information for their fans, ensuring a snug fit and proper cooling performance.

Lastly, read reviews and user feedback to gauge real-world performance and reliability. This will help you make an informed decision and choose the right 4 Pin CPU fan that suits your needs.

In Conclusion

The relationship between a 3 Pin CPU fan and a 4 Pin motherboard is essential for the efficient cooling and optimal performance of the CPU. While a 3 Pin fan can be used on a 4 Pin motherboard, it lacks the advanced control and customization options provided by a 4 Pin fan connected to a 4 Pin motherboard.

By using a 4 Pin CPU fan on a 4 Pin motherboard, you can take advantage of enhanced fan speed control, reduced noise levels, improved performance, and increased longevity. The PWM technology and customization options allow for precise tuning of the cooling system, ensuring optimal temperatures for your CPU.

The Compatibility of 3 Pin CPU Fans with 4 Pin Motherboards

When it comes to connecting a 3 Pin CPU fan to a 4 Pin motherboard, there are a few important factors to consider. 3 Pin CPU fans and 4 Pin motherboards are not directly compatible due to differences in their connectors and functionalities.

A 3 Pin CPU fan uses three pins to connect to the motherboard - one for ground, one for power, and one for reporting the fan's speed. However, a 4 Pin motherboard has an additional pin for controlling the fan's speed.

To connect a 3 Pin CPU fan to a 4 Pin motherboard, you can use a 3-to-4 Pin adapter or simply connect the fan to the motherboard's 3 Pin fan header. In this case, the fan will run at full speed without the ability to control its speed through the motherboard.

Keep in mind that while the fan will still function, not having the additional control pin may limit the fan's ability to adjust its speed according to the system's needs, potentially leading to higher noise levels and less efficient cooling.

Frequently Asked Questions

In this section, we will address some common questions related to the compatibility and usage of a 3-pin CPU fan with a 4-pin motherboard.

1. Can I connect a 3-pin CPU fan to a 4-pin motherboard header?

Yes, you can connect a 3-pin CPU fan to a 4-pin motherboard header. The extra pin on the motherboard header is used for pulse width modulation (PWM) control. When connecting a 3-pin fan to a 4-pin header, the fan will work at full speed by default, as it does not have PWM control. However, you can still control the fan speed manually through the motherboard's BIOS or software.

It's important to note that the 3-pin fan will not have dynamic speed control like a 4-pin PWM fan, but it will still function properly and provide adequate cooling for your CPU.

2. Will connecting a 3-pin CPU fan to a 4-pin motherboard affect performance?

No, connecting a 3-pin CPU fan to a 4-pin motherboard will not have a significant impact on performance. The only difference is that the fan will operate at a constant speed instead of being dynamically controlled through PWM. As long as the fan is functioning properly and providing adequate cooling, the performance of your CPU should not be affected.

However, if you require precise speed control or want to take advantage of PWM features, it's recommended to use a 4-pin PWM fan.

3. Can I use a 3-pin to 4-pin adapter to connect a 3-pin CPU fan to a 4-pin motherboard?

Yes, you can use a 3-pin to 4-pin adapter to connect a 3-pin CPU fan to a 4-pin motherboard. These adapters have a 3-pin connector on one end and a 4-pin connector on the other, allowing you to connect the fan to the motherboard header. However, it's important to note that using an adapter will not enable PWM control, as the fan itself does not have PWM functionality. The fan will still operate at full speed, but you can still manually adjust the fan speed through the motherboard's BIOS or software.

4. Can I use a 4-pin CPU fan with a 3-pin motherboard header?

Yes, you can use a 4-pin CPU fan with a 3-pin motherboard header. The 4-pin fan will work with the 3-pin header, but it will not have PWM control. The fan will operate at full speed by default, and you will not be able to adjust the speed through the motherboard's BIOS or software. However, the fan will still provide adequate cooling for your CPU.

5. What are the advantages of using a 4-pin PWM CPU fan with a 4-pin motherboard?

The main advantage of using a 4-pin PWM CPU fan with a 4-pin motherboard is that it allows for dynamic speed control. PWM fans can adjust their speed based on the CPU temperature, providing more precise cooling when needed and reducing noise when the system is not under heavy load.

Additionally, PWM fans can be controlled through the motherboard's BIOS or software, allowing you to customize the fan curve and optimize the cooling performance for your specific needs.

In conclusion, when connecting a 3-pin CPU fan to a 4-pin motherboard, it is important to understand the compatibility and functionality of both components. The 3-pin fan can be connected to the 4-pin motherboard by plugging it into the 3-pin header on the motherboard.

However, since the 4-pin motherboard header has an additional pin for PWM control, the fan speed may not be controlled accurately. It is recommended to adjust the fan speed through BIOS settings or using software utilities provided by the motherboard manufacturer.
